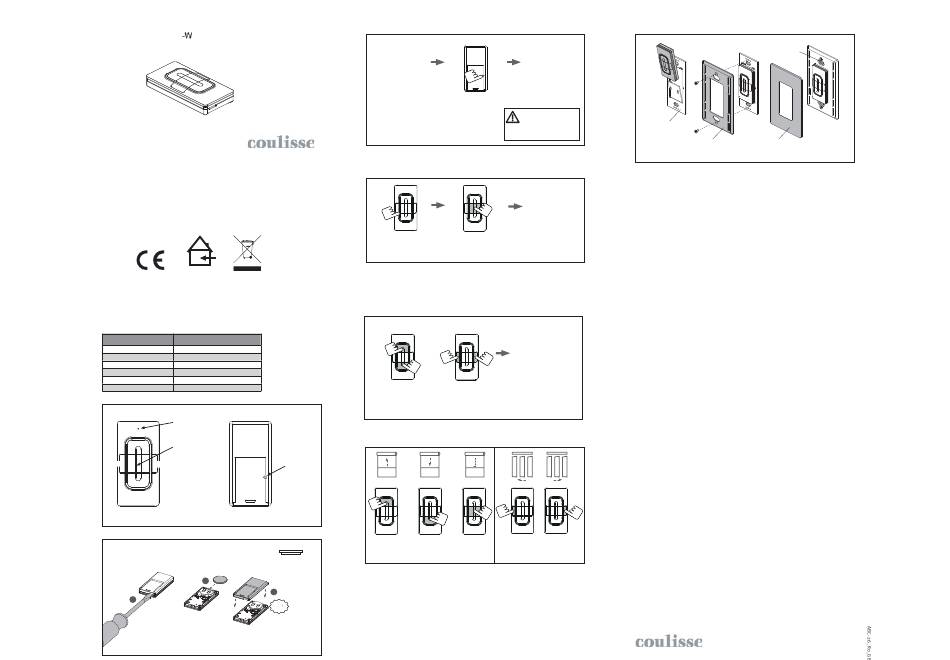

Coulisse ABC-26-W Manual

Manual
Absolute Control
Remote control ABC-26
WARNING: Important safety instructions. Follow all instructions,
since incorrect installation can lead to severe injury.
WARNING: Do not make repairs yourself. Do not attempt to open the device
or disassemble it. You run the risk of electric shock and voiding
the limited warranty. No user-serviceable parts are inside.
indoor use only

1. General information

The ABC-26 the wall switch to operate Coulisse automation blinds.
1.1 Performances
ABC-26
Battery CR2430 3.0V
Channels 1
Max. blinds remote infinite
Range (inside building) 20m, 2 concrete walls
Frequency 2.4 GHz
Weight 40 grams

1.2 Buttons

Indicator
Up
Center button
(stop - favorite)
Left Right
Down

1.3 Changing the battery

CR2430 3V
+




&OLFN

2. Programming

1. Programming a blind

Set in Program mode:
Press program button
on the motor,
The blind starts
stepping.
Pair/unpair by pressing
the program button
(use pen)
Action confirmed:
blind stops stepping
for 3 seconds

2. Set the favorite position

To program a blind, the blind must be in program mode.
(Press program button on the motor, when blind is not stepping.)
Set the blind Save your position by
in the desired position. pressing the center
button for two seconds.
3. Switch the blind's direction of rotation
To program a blind, the blind must be in program mode.
(Press program button on the motor, when blind is not stepping.)
Example: when you press up on the remote and your blind moves down,
you have to switch the rotation direction of the blind.
Switch UP & DOWN Switch LEFT & RIGHT
Hold the up and down Hold the left and right
button to switch the button to switch the
direction of rotation direction of rotation.

3. Operating

Operate a blind
Program
button
Up / tilt Down / tilt
+
- Favorite position
4. Remote Holder
Exit Program mode:
Press program button
on the blind,
The blind stops
stepping.
Pairing a blind to
the remote that is
already paired with the blind,
will delete the pairing.
Action confirmed:
blind stops stepping
for 3 seconds
5. Tips & Troubleshooting
Please check www.coulisse.nl for the latest tips and troubleshooting guide.
6. Safety & Cleaning

6.1 Safety

WARNING:
- Do not let children play with the blind and/or remote control
- Do not paint the device
- Keep the device dry. Precipitation, humidity, and all types of liquids or moisture can contain
minerals that will corrode electronic circuits. If your device does get wet, remove the battery,
Action confirmed:
and allow the device to dry completely before replacing the battery.
blind stops stepping
- Do not drop, knock, or shake the device. Rough handling can break internal circuit boards.
for 3 seconds

6.2 Cleaning

Follow these general rules when cleaning the outside of the device and its components:
- Make sure the device is unplugged.
- Use a damp, soft, lint-free cloth. Avoid getting moisture in openings.
- Don't use aerosol sprays, solvents, alcohol, or abrasives.
7. Service & Support
WARNING:
Online Resources
For the latest information and updated manuals go to www.coulisse.nl.
Obtaining Warranty Service
First follow the advice in this booklet and then go to your local dealer.
If the product appears to be damaged or does not function properly, go to your local dealer
for instructions on how to obtain warranty service.
Disclaimer:
Stop Left * Right *
2 sec:
© Copyright Coulisse
* vertical motor only
All rights reserved. No part of this publication may be reproduced, stored in a retrieval system, or transmitted, in any form, by any means,
electronic, mechanical, photocopying, recording, digital or otherwise without the written permission of the publisher.
Although this manual has been composed with the most care, Coulisse B.V. does not accept any responsibility for damage due
to mistakes and/or faults in this manual.
Coulisse B.V. reserves the right to revise the manual and to revise and/or changes its content at any time, without obligation to notify
any person or entity of such revisions or changes.
The most recent version replaces older versions of this manual. The most recent version is available at ww.coulisse.nl or contact your
Coulisse contact person .
We invite you to send remarks and comments about this manual to Coulisse at manuals@coulisse.nl.
Coulisse B.V., Vonderweg 48, 7468 DC Enter, The Netherlands
Different materials require
different types of fittings. Always
choose screws and plugs that are
specially suited to the material.
PICO-WBX-ADAPT
Claro wallplate Claro wallplate
Do not make repairs yourself. Do not attempt to open the device or
disassemble it. You run the risk of electric shock and voiding the limited
warranty. No user-serviceable parts are inside.
Do not make repairs yourself. Do not attempt to open the device
or disassemble it. You run the risk of electric shock and voiding the limited
warranty. No user-serviceable parts are inside.
