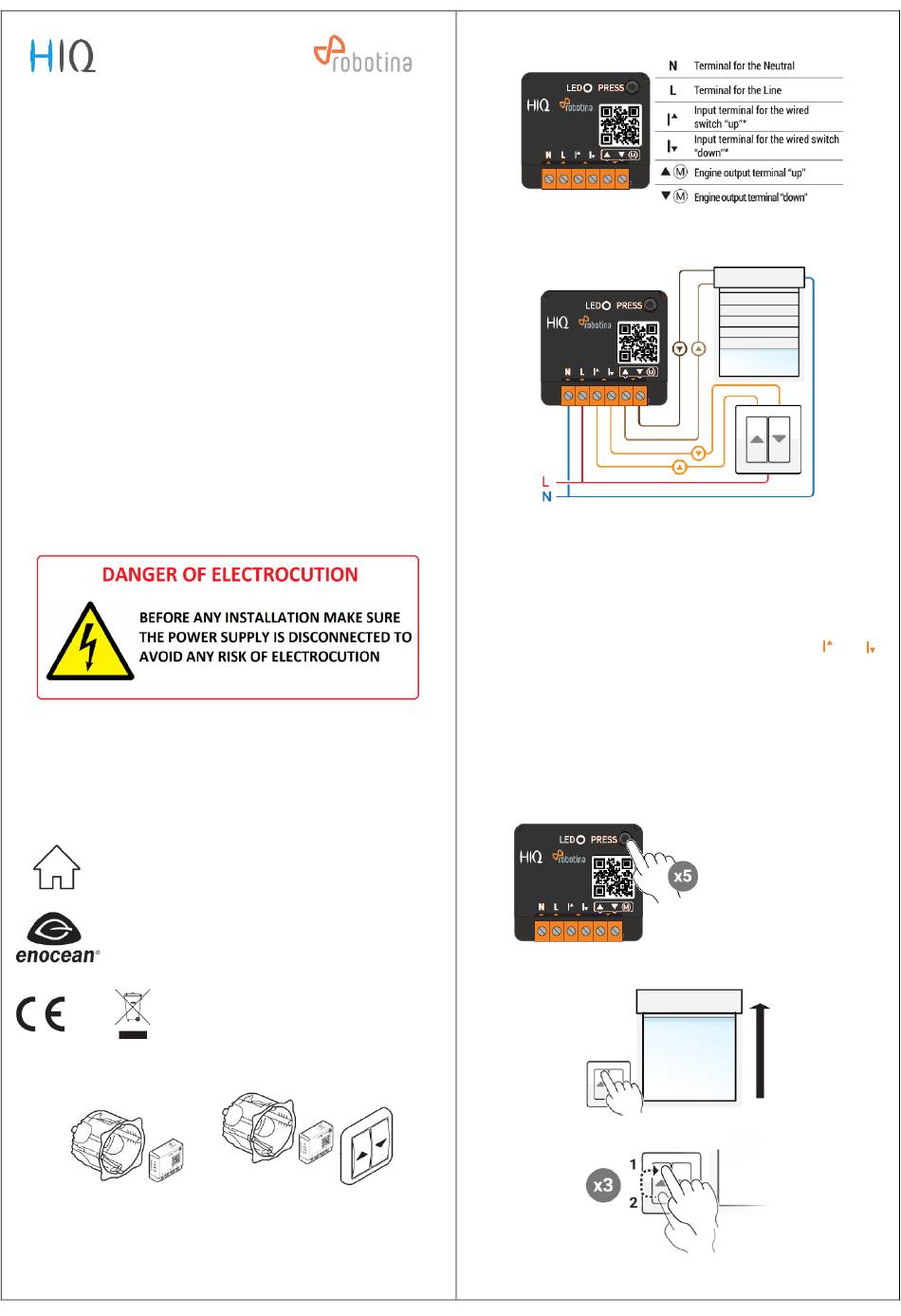

USER MANUAL
RELAY SWITCH BC-WE-F1
Power supply: 230V AC 50Hz
Switching capabilities: 230V AC – 3A
Consumption: < 1W
Max. Engine Power: 280W, 60Nm Max
Radio frequency range: 868.0 to 868.6 Mhz
RF power Max: +3dBm
Range: up to 30m indoor
Operational temerature: -10°C to 40°C
Protection rating: IP 30
Pairing: up to 22 controllers
EPP (EnOcean Profile): D2-05-00
Dimensions: 40mm x 44mm x 16.9mm
Weight: 34g
Warranty: 2 years
USE CAUTIONS
Never use the device if it is not correctly installed and placed
inside a connecting box in conformity with the current norms.
Keep the product far away from liquids.
This product must be used indoor only
This product is conform to EnOcean radio protocol
INSTALLATION
Thanks to its small size, the Relay Switch can be installed in a
connecting box or behind the wall switch which controls the
roller shutter or motorized awning.
RELAY SWITCH INPUT/OUTPUT
Each terminal can accept a cable of 2.5mm
of 8mm.
INSTALLATION DIAGRAM
AUTO-DETECTION OF SWITCH TYPE
After turning the power supply ON, do a single push on the wired
wall switch. The relay switch has an auto-detection system to
automatically detect the type of wired wall switch (rocker or
push-button) wired at the input.
Note: The same configuration is applied for both inputs
It is not possible to combine a rocker switch with a push-button.
To perform a new auto-detection, the Relay switch must be
manually reset. (see reset procedure)
CALIBRATION OF THE RELAY SWITCH BC-WE-F1
Two modes
1.
From the Relay Switch
2.
From the wired wall switch
Put the roller shutter/awning in position up.
2
maximum, stripped
and
.
Note: The Relay Switch
LED blinks green,
meaning the calibration
has well started.
