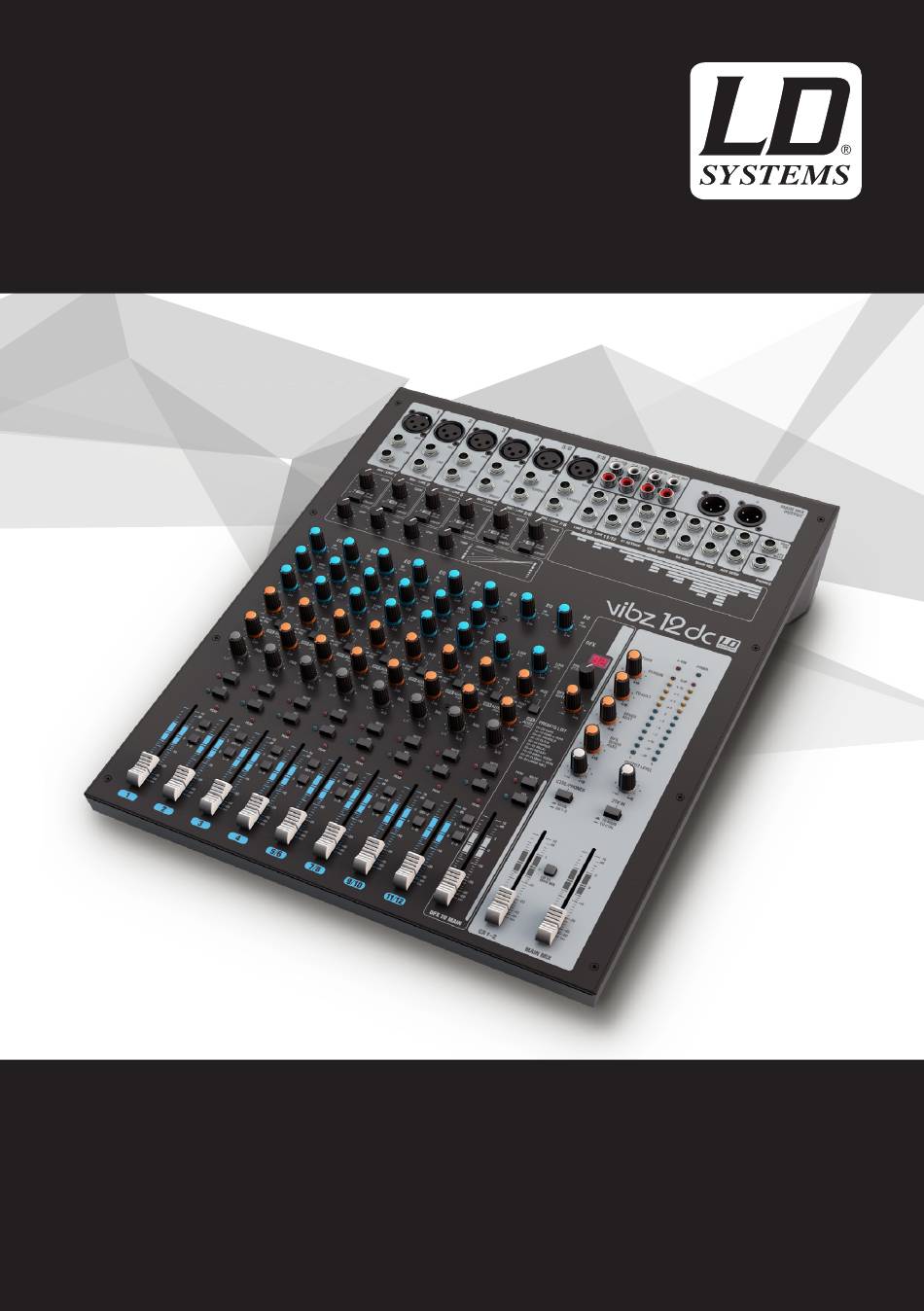

- Page 1 USER´S MANUAL BEDIENUNGSANLEITUNG MANUEL D`UTILISATION MANUAL DE USUARIO INSTRUKCJA OBSŁUGI MANUALE D‘ USO VIBZ 12 12-CHANNEL MIXING CONSOLE WITH DFX AND COMPRESSOR LDVIBZ12DC...
- Page 2 CONTENTS / INHALTSVERZEICHNIS / CONTENU / CONTENIDO / TREŚĆ / CONTENUTO ENGLISH ESPAÑOL PREVENTIVE MEASURES MEDIDAS DE SEGURIDAD 35-36 INTRODUCTION INTRODUCCIÓN QUICK START GUIDE WITH CABLING EXAMPLE GUÍA RÁPIDA DE CABLEADO CONNECTIONS, CONTROLS AND INDICATORS 6-11 CONEXIONES, CONTROLES E INDICADORES 38-42 SPECIFICATIONS 11-12...
- Page 3 YOU‘VE MADE THE RIGHT CHOICE! We have designed this product to operate reliably over many years. LD Systems stands for this with its name and many years of experience as a manufacturer of high-quality audio products. Please read this User‘s Manual carefully, so that you can begin making optimum use of your LD Systems product quickly.
- Page 4 The VIBZ 12 DC also has RCA connectors for recording and playback devices and a Digital Effects Section with 100 presets. With key features such as the PFL function or the Mute buttons and its natural, transparent sound, the VIBZ 12 DC...
- Page 5 QUICK START GUIDE WITH CABLING EXAMPLE 1. Make sure that the mixer and all devices to be connected to the mixer are turned off. 2. Connect the devices to the mixer using appropriate cables. 3. Adjust the input gain of the channels 1 to 6 and all level controllers channel-LEVEL and MAIN MIX to minimum. Place all equalizer controllers in the central position (stop).
- Page 6 CONNECTIONS, CONTROLS AND INDICATORS 22 22 30 45 50 42 22 22 23 27 48 44 52 26 54 57 MIC IN 1 - 4 & 5/6 - 7/8 Balanced inputs of the channels 1 to 4, or 5/6 and 7/8 with 3-pin XLR sockets for connecting microphones. Channels 1 to 4 are mono channels, the channels 5/6 and 7/8 can be used as both mono and stereo channels, depending on the incoming signal (XLR and jack L IN = Mono / jack L and R IN = Stereo).
- Page 7 LOW CUT CHANNEL 1 - 7/8 Low cut filter for suppressing low-frequency signals. Especially with voice and singing transmissions, an activated LOW CUT feature (switch in the down position) can reduce disruptive bass frequencies and thus increase speech intelligibility. The cut-off frequency is 95 Hz. COMPRESSOR Sliding compressor controller for channels 1 to 4.
- Page 8 PEAK LED CHANNEL 1 - 11/12 PEAK channel 1 - 7/8: Once the red Peak LED lights up, the corresponding channel is operating at the distortion limit. Adjust the Gain con- troller (N 4) so that the peak LED of the corresponding channel only lights up briefly when signal peaks occur. Avoid the permanent lighting of the peak LED by reducing the input gain or input sensitivity.
- Page 9 PHONES / CTRL Volume controller for the stereo line output CTRL (N 27) and the headphone output PHONES (N 26). When using headphones, make sure that the volume stays at a pleasant level, in order to avoid hearing damage caused by loud noise. CTRL/PHONES MAIN / GR1-2 To listen to the MAIN MIX sum channel, bring the switch to the up position MAIN;...
- Page 10 FOOT SW DFX MUTE 6.3 mm jack socket for connecting a foot switch (pedal) to remotely activate and disable the mute function of the internal effects device (footswitch optional). MAIN MIX OUTPUT Balanced stereo line output with 3-pin XLR jack sockets to connect an active PA system. Output of the master signal of the mixer. MAIN MIX Balanced stereo line output with 6.3 mm jack sockets to connect an active PA system.
- Page 11 POWER ON / OFF On / Off switch for the power supply of the device. POWER LED Lights up once the system is properly connected to the power mains and switched on. SPECIFICATIONS Model Name: LDVIBZ12DC Product Type: analogue mixer Type: live / home recording Number of Channels:...
- Page 12 Main Section: AUX/Effect Send Channels: AUX/Effect Send Connections: 6.3 mm stereo jack, unbalanced Stereo AUX Return Channels: Stereo AUX Return Connections: 2 x 6.3 mm stereo jack Stereo Tape Output Channel: 1 x stereo Stereo Tape Output Connections: 2 x RCA (Cinch) Stereo Tape Input Channel: 1 x stereo Stereo Tape Input Connections:...
