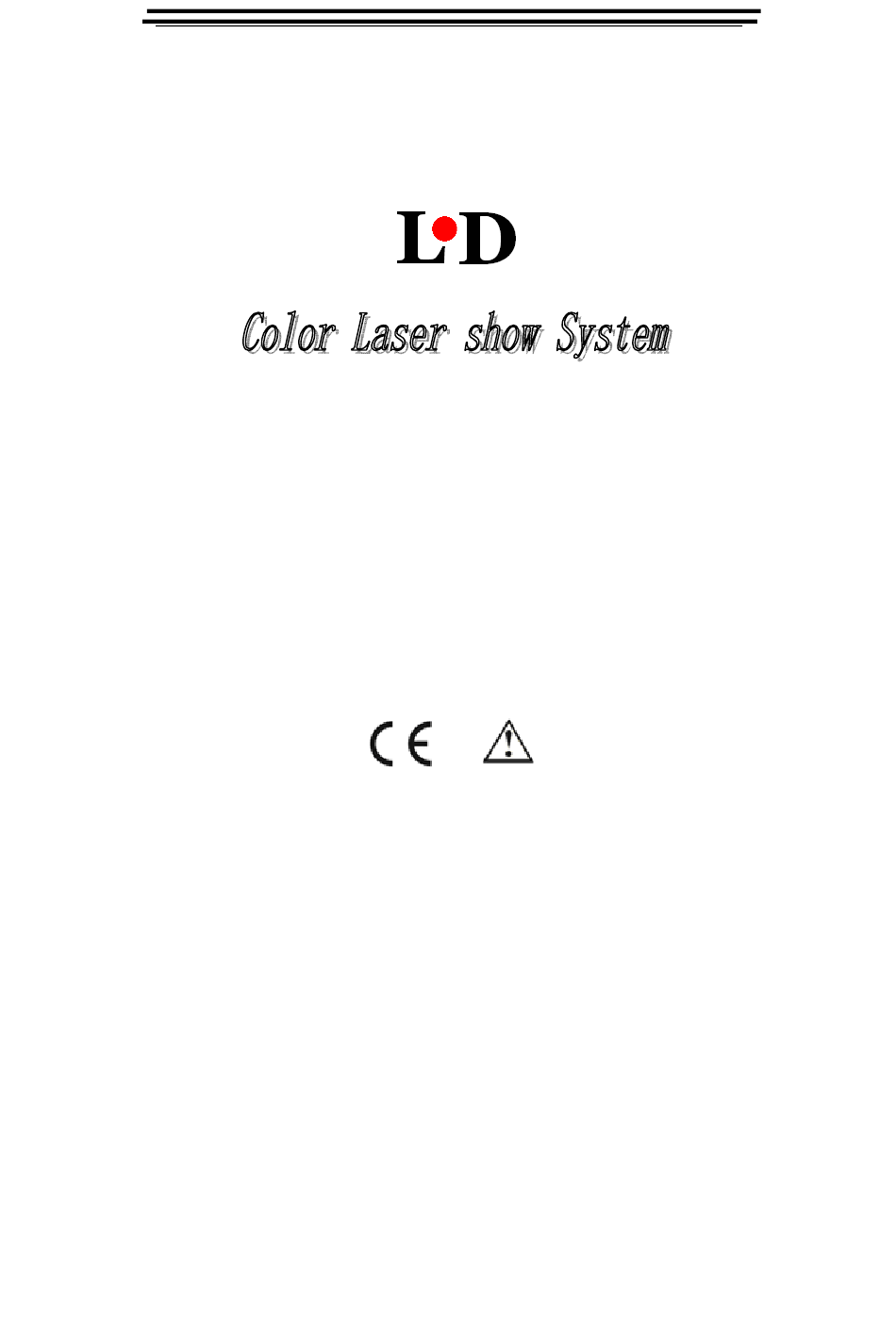

  • Page 1 LightLaser Model:SC-500 User Guide...
  • Page 2 Thank you for purchasing the of Laser Show product. The product integrate optics, electron, digital graphics disposal, and other multinomial advanced technology, design for disco, KTV, and stage show technically. It can from beam program according to music rhythm, and it can bring space channels, light wall & other dimensional effect combine with fog.
  • Page 3 Installation 1. Carefully inspect your Laser Show equipment as you unpack it. If any damage is evident, such as dents or scratches on the covers or broken knobs, etc., immediately notify your carrier and your local sales distributor. 2. Hang up the equipment in a safe place. Ensure that there are no barriers before the laser aperture.
  • Page 4 OFF: Sound/auto/activation mode ON: DMX512 mode Sound /auto Mode/cartoon 1. set 10th [OFF] 2. set 1th & 2th Run pattern sound(master) AUTO Animation show Slave DMX512 console control means: 1. the laser light controlled by international DMX512.Please connect the console and laser as below. It can control one or several lasers synchronously.
  • Page 5 3. when using DMX512,you should setup address code switch of laser(1th-9th of address code switch).This laser use 12channel calculation of address code: ADDR=16*N-15,for example: The first loop: ADDR=1 The second loop: ADDR=12 The third loop: ADDR=23 The fourth loop: ADDR=34 ●...
  • Page 6 5. The system only accepts the DMX512 signal of international standard to control the system mode, the laser pattern ON /OFF, the size, the position, the speed, etc. Channel Function DMX512 0-49, Sound activation group ,3-11 invalid 50-99 automobile group,3-11 invalid 1.Laser control mode 100-149 cartoon...
  • Page 7 WARNINGS Visible and invisible laser-light, direct beam can damage the human eye and the eyes of animals. Do not look at any Laser light directly. Do not touch the laser aperture with the hand. When cleaning the laser aperture, please use tampon with alcohol or camera lens paper. Do not take apart or modify the equipment.
  • Page 8 Service and repair The Laser Show equipment has no major serviceable parts. Repair of electronic- components (transistors, IC´s) or changing other parts are not allowed by untrained persons. If there is a problem with the Laser Show equipment, your local service engineer will help you with repair or replacement.
