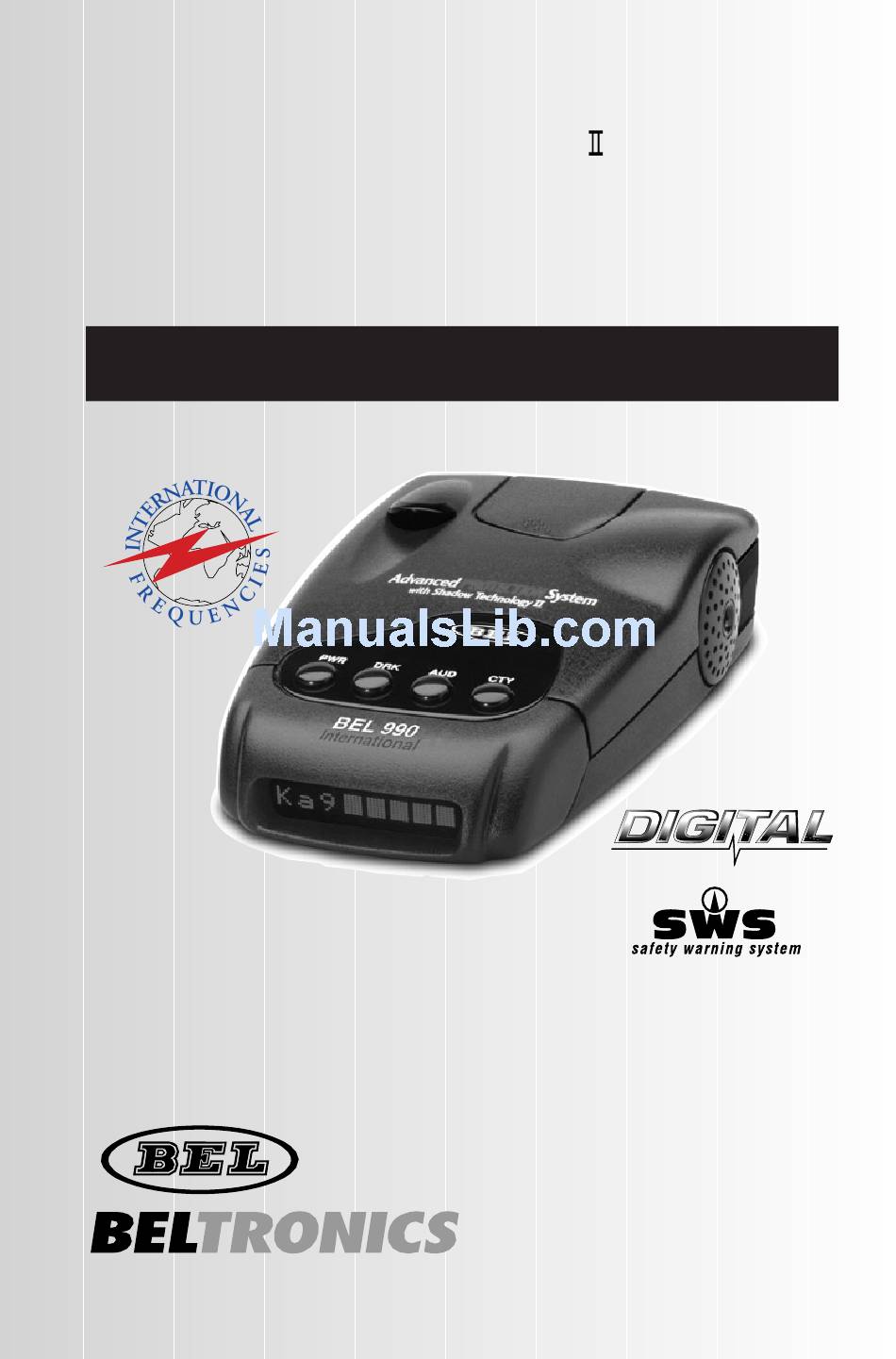

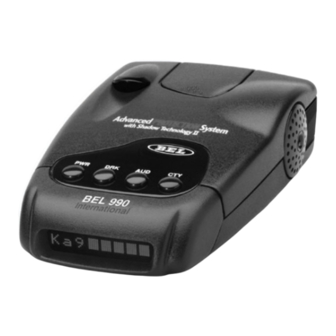

  • Page 1 Advanced System PROTECTION ®®®® with Shadow Technology ® BEL 990 International • L • S ADAR ASER AFETY ETECTOR DIGITAL PLL SYNTHESIZED OSCILLATOR World’s First International Frequency Radar/Laser/Safety Detector Operating instructions for model 990...
  • Page 2 introduction Thank you for purchasing a bel 990 International Radar/Laser/ Safety detector with the Advanced Protection System Shadow Technology ® Radar/Laser/Safety detector which detects International Radar frequencies, making it the choice for those looking for protection where ever they travel. Remember, owning a Radar detector does not give you a license to speed.
  • Page 3: Table Of Contents

    table of contents Profile of Features l page 4 Description of Features l page 5 Power-Up Test Sequence/Start-up Mode l page 5 Tutorial Mode l page 6 Set and Forget Memory l page 6 Reset to Factory Settings l page 7 Voltage Warning l page 7 drk (Bright/Dim/Dark) Button l page 7 aud (Auto-Mute/Volume Control) Button l page 7...
  • Page 4: Profile Of Features L

    profile of features pwr (Power/Start-Up Mode) Button: pressing and holding pwr briefly will turn the unit on. Continuing to press the pwr button will scroll through the three start-up mode options: Text Message Display: communicates all mode selections (i.e. confirms Radar band and signal strength, presence of Laser and sws ™...
  • Page 5: Description Of Features L

    Laser Optical Sensors: collect Laser signals from in front and behind. Audio Alert Speaker: all audible alerts and Digital Voice Messages are emitted from this location. Power Jack: using the straight or coiled cord, the bel 990 International operates in any vehicle with a 13.8 volt dc negative ground system (10.5 volt to 16 volt range).
  • Page 6: Tutorial Mode L

    (Quick-Start Mode) Unit will bypass any form of a power-up test sequence when powered-up and will display depending upon the mode retained in memory. Unit is ready for operation. The tutorial mode allows you to become more familiar with all audible and visual alerts. To engage this mode, press the aud and cty buttons simultaneously when the unit is on.
  • Page 7: Reset To Factory Settings L

    Reset to Factory Settings You can reset your unit to factory settings for start-up mode, volume, drk, aud, cty, Travel Mode and Selectable Features. To reset, press and hold the cty button until the display shows “ ”. Two “beeps” will sound and your unit will be on and ready for operation.
  • Page 8: Cty (City/Highway) Button L

    pressing the aud button during an alert. The display will briefly show “ approximately 20 seconds. If the signal is still present after 20 seconds, press the aud button again if you do not want to receive any audible alerts. Note—because Laser alerts are not lengthy or sustained, muting is not required (see page ) Volume Control...
  • Page 9: International Frequencies L

    City All City All mode is a Selectable Feature of the bel 990 International (see Selectable Features page 10). This feature provides an alternate approach for improving selectivity on ALL Radar Bands and is ideal for use in areas with a high level of microwave transmissions which can cause falsing on all Radar bands.
  • Page 10: Engaging International Frequencies L

    Engaging International Frequencies bel 990 International is factory preset to detect all North American Radar frequencies (X, K, Super Wideband Ka). To engage one of the three Travel Modes for operation outside North America, with the unit on, press and hold the cty button until the display scrolls through the following prompts:“...
  • Page 11 City X or City All When “ ” is selected, your unit provides standard X Band selectivity which is suitable for most urban areas. City All provides an increased level of selectivity on all Bands in high density microwave areas. Factory setting is “ Note—once “...
  • Page 12: Entering Selectable Features Mode L

    Radar/Laser Digital Voice Prompts With “ followed by “beeps” when X/K/Ka and Laser signals are detected. Factory setting is on. With “ sound unique audio tones only. Factory setting is “ ” + – Ka Narrow (33.4 100 mh When “ Ka signals and provides alarms at the 33.4 gh When “...
  • Page 13: Installation L

    Press the aud button to make your selection. Press the cty button to move to the next Selectable Feature. Repeat the process until you have made your selection for each of the eight Selectable Features. Press the pwr button to exit Selectable Features mode. Two “beeps”...
  • Page 14 Dash Mounting You can mount your unit to a level area of your vehicle’s dash using the hook and loop fastener or the four non-skid dash mounting pads provided. Windshield Bracket Assembly The visor clip is fully assembled. To assemble the windshield bracket, follow this diagram.
  • Page 15: Understanding Radar, Laser And Sws

    Visor Mounting Remove the mounting bracket cover by pressing on the raised dots and pushing outward. Store the cover in a safe place. Slide the visor clip onto the top of the detector until it snaps into place. Clip the detector to the edge of the sun visor nearest the windshield.
  • Page 16: Safety Warning System

    In 1987, fcc approval was given for Radar equipment using a third frequency, Ka. In response to this, beltronics introduced the first Radar detectors capable of detecting X, K and Ka band signals. In late 1990, fcc approval was given to Wideband Ka: 34.2 gh...
  • Page 17: Radar Alerts L

    interpretation of alerts Radar Alerts The alerts provided by your unit are affected both by the type of transmission (continuous wave or instant-on), and the position of the Radar source. These critera hold true whether you are traveling in or outside of North America. Generally, when you drive closer to a Radar source, the intensity of the received signal increases, resulting in the increase of the number of bar graph segments as well as numerical digit...
  • Page 18 Stationary Radar aimed around a corner Under this circumstance, reaction time is considerably reduced. Since the Radar signals are transmitted across your line of travel, there is generally no signal available to receive until you are relatively close to the source. Once an alert is received, expect the strength of the signal to increase very quickly.
  • Page 19: Instant-On/Pulsed Radar Alert L

    Moving Radar behind you, traveling in the same direction. Police Radar signals transmitted from behind your vehicle can be received when reflected by objects in front of you such as large signs, bridges and trucks.As you drive, the size and configuration of these objects are constantly changing causing the strength of any reflected Radar signal received to vary.A strong, uninterrupted alert indicates the patrol car is close behind.
  • Page 20: Laser Alerts L

    Laser Alerts When Laser is detected, the display will flash “ coupled with a distinct Laser audio alert. If a vehicle is a long distance from the source of Laser pulses, fewer pulses will generally be received. The closer the vehicle is to the source of Laser pulses, the greater the likelihood of receiving a steady stream of Laser pulses.
  • Page 21 Abbreviated SWS™ Category Words “ ” confirms Highway Construction/Maintenance (messages 1–11) “ ” confirms Highway Hazard Zone Advisory (messages 13–31) ” “ confirms Weather Related Hazards (messages 33–41) ” “ confirms Travel Information/Convenience (messages 43–59) ” “ confirms Emergency/Slow Moving Vehicles in transit (messages 61–64) “...
  • Page 22: Conditions That Affect Laser Alerts L

    performance verification Conditions that Affect Radar Alerts If you feel your unit is not alerting properly, keep in mind that there are many conditions that influence the intensity or duration of an alert: The police are using instant-on/pulsed Radar, in which case no signal is transmitted until visual contact has been made with your vehicle.
  • Page 23: Troubleshooting L

    troubleshooting Solutions for Common Problems If your unit is not operating properly, please refer to the outline below. Problem Unit not receiving power “Poor detection range” Erratic or frequent alerts Partial or no display If you experience a problem with your unit that is not covered in this outline please call, Monday to Friday, 9 am–5 pm est, for assistance: 1-800-341-2288 usa...
  • Page 24: Consumer Warranty L

    BELTRONICS incidental, indirect or special damages (including, but not limited to, lost profits) arising out of or in connection with the use, misuse, or function of the unit.
  • Page 25: Service L

    service Warranty Service If you feel your detector is not funtioning properly please review this manual, particularly the section on Performance Verification. If you still feel service is required, please follow the instructions on below. To obtain service during the warranty period, please call the apporpriate number below to obtain an RA number and shipping instructions.
  • Page 26: Specifications L

    Transition to Microstrip Mixer Maximum Dimensions: 5.3"(l) x 3.1"(w) x 1.8"(h) Weight: 9.0 ounces BELTRONICS reserves the right to incorporate design improvements which may not be reflected in the specifications listed in this owner’s manual. accessories If you require any additional accessories, replacement...
  • Page 27 list of accessories description Suction Cup Kit (2) Straight Power Cord (4') Coiled Power Cord (6') Power Cord Fuses (2) Hook & Loop Fastener Visor Bracket Windshield Bracket Non-Skid Dash Mounting Pads Protective Travel Case Owner’s Manual model cost number da-6 $ 2.95 da-16...
  • Page 32 Safety Warning System l.c.–Patents Pending , Fundamental Mixer Technology, fmt and Shadow Technology are registered trademarks of BELTRONICS. bel 990 International, Total Tracking Laser and ttl are trademarks of BELTRONICS. Safety Warning System® is a registered trademark of Safety Warning System® l.c.SWS is a trademark of Safety Warning System® l.c.
