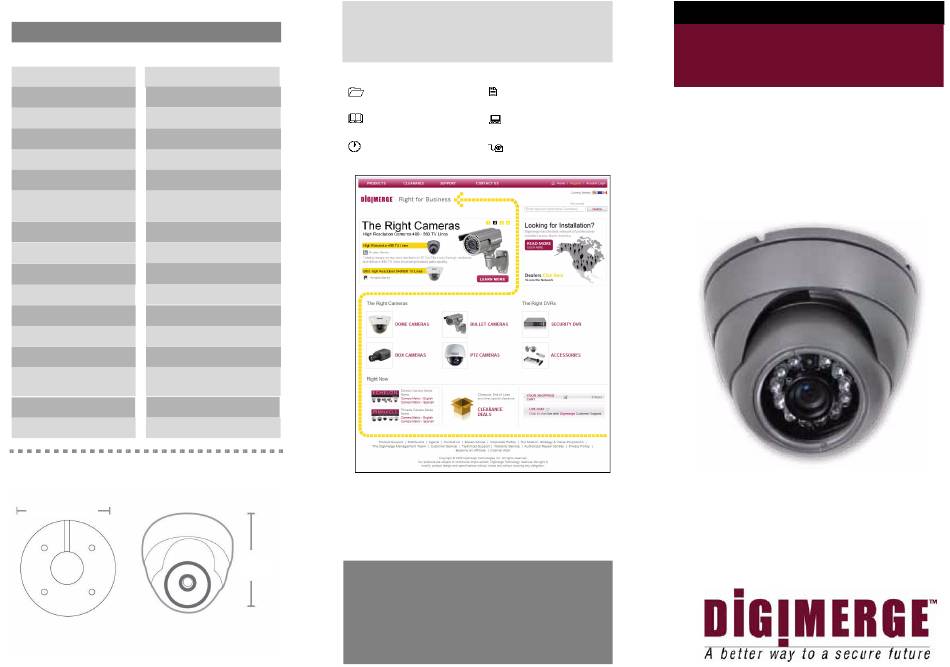

Digimerge DCV13TL Quick Start Manual

High resolution color ir dome camera

Advertisement

Quick Links

Camera Specifications
Specfications:
Image Sensor
1/4" Echelon Series Sensor
Video Format / Pixels
NTSC: 656 (H) x 492 (V)
Horizontal Resolution
480 TVL
Internal; 2:1 Interlace
Sync. & Scan. Systems
S/N Ratio
> 48dB
Iris & Shutter Speed
AES; 1/60 ~ 1/50,000 sec.
Minimum Illumination
0.5 LUX @ F1.2 (IR Off)
0 LUX (IR LEDs ON)
IR Range
Up to 40 ft (12 m); 12 LEDs
Video Output
Comp. 1.0 Vpp @ 75ohm
Lens / Lens Mount
3.6 mm F2.0/Fixed
70 Degrees
FOV (diagonal)
Termination
Video: BNC Female
Power Requirement
12V DC ±10%
Power Consumption
220 mA max
-4°F ~ 122°F
Operating Temp.
(-20°C ~ 50°C)
DIA: 3.7" (94 mm)
Dimensions
Weight
0.85 lbs / 386 g
Dimensions:
3.7in/94mm
It's all on the web
Product Information
User Manuals
Quick Start Guides
VISIT
www.digimerge.com
3.1in/
75mm
Digimerge Technologies Inc.
Copyright © 2010 Digimerge Technologies Inc.
As our products are subject to continuous improve-
ment, Digimerge reserves the right to modify product
design, specifications and prices, without notice and
without incurring any obligation. E&OE
Specification Sheets
Software Upgrades
Firmware Upgrades
HIGH RESOLUTION
COLOR IR DOME CAMERA
Model: DCV13TL
Quick Start Guide
English Version 1.0

Advertisement

loading
Need help?

Need help?

Do you have a question about the DCV13TL and is the answer not in the manual?

Questions and answers

Summary of Contents for Digimerge DCV13TL

  • Page 1 English Version 1.0 75mm Digimerge Technologies Inc. Copyright © 2010 Digimerge Technologies Inc. As our products are subject to continuous improve- ment, Digimerge reserves the right to modify product design, specifications and prices, without notice and without incurring any obligation. E&OE...
  • Page 2 Connecting the camera Contents Installing the camera 4. Connect power to the camera: ATTENTION - Test the camera prior to selecting a permanent 1 x High Resolution • DC Power—Power adaptor: Connect the mounting location by temporarily connecting the cameras and cables to the TV,VCR, DVR or Observation System.
