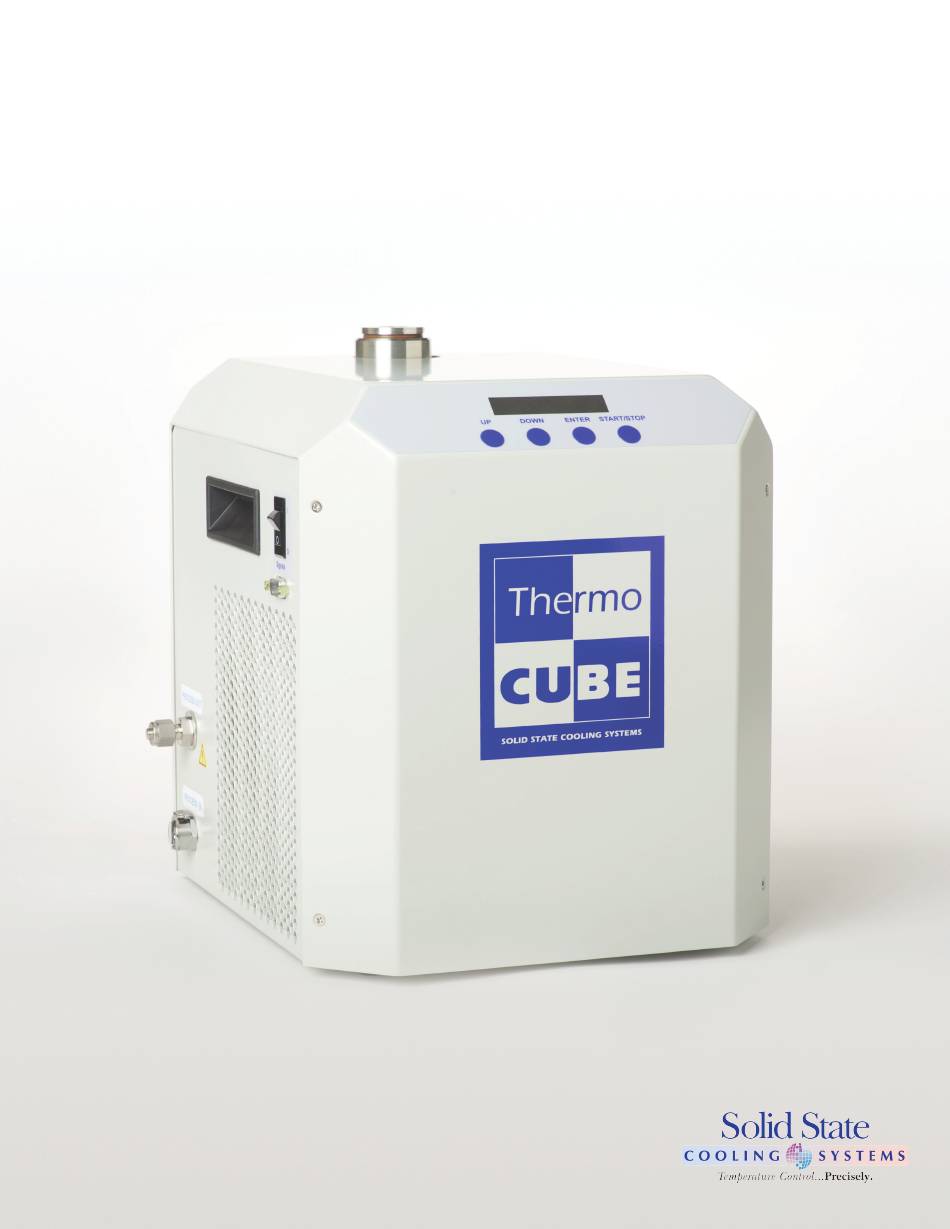

  • Page 1 THERMOCUBE PAO Thermoelectric Chiller for Leak-Free Temperature Control of Aircraft Hydraulic Fluid (PAO) Product Manual...
  • Page 2 167 Myers Corners Road Wappingers Falls, NY 12590 declare under our sole responsibility that the ThermoCube 200, 300, 300A, 400, 400A, 500, PAO (All Models) meets the provisions of the directives: Electromagnetic Compatibility (EMC) Directive 2014/30/EU Low-Voltage (Safety) Directive 2014/35/EU RoHS Directive 2015/863/EU –...
  • Page 3 167 Myers Corners Road Wappingers Falls, NY 12590 declare under our sole responsibility that the ThermoCube 200, 300, 300A, 400, 400A, 500, PAO (All Models) meets the provisions of the directives: Emissions: CFR Title 47 FCC Part 15 Subpart B, Class A...

  • Page 4: Table Of Contents

    PTIONS 7.1 ThermoCube PAO Options and Part Number _________________________________________ 17 7.2 RS-232 Communications Option ___________________________________________________ 18 7.3 Other Options which come Standard with the ThermoCube PAO _________________________ 21 7.3 Other Available Options _________________________________________________________ 22 SECTION 8 ______________________________________________________________________ 23 _____________________________________________________________ 23...

  • Page 5: Safety Precautions And Symbols

    PAO C # 52-400-2G-1-PAO HERMO HILLER SAFETY PRECAUTIONS AND SYMBOLS __________________________________ Read the SDS for the coolant used and follow all safety precautions listed in the SDS prior to removing coolant tubes or opening the fill cap as this could result in contact with the coolant inside. Caution! Risk of electric shock.

  • Page 6: Section 1

    The ThermoCube PAO chiller is a thermoelectric temperature control system with full PID control of both heating and cooling. The wetted surfaces of this version of the ThermoCube are made from stainless steel or aluminum with Viton o-rings, making it compatible with all hydrocarbons based or silicone based coolants such as PAO.

  • Page 7: Section 2

    PAO C # 52-400-2G-1-PAO HERMO HILLER ECTION __________________________________________________________ PECIFICATIONS Operating Range (Set Point): 0°C to 65°C standard Ambient Temperature Range: 0°C to 40°C non-condensing Stability / Repeatability: ±0.05°C with constant load (even near ambient) Cooling Capacity (typical 275 Watts @ 20°C in 20°C ambient air Heating Capacity (typical): 400 Watts @ 20°C in 20°C ambient air Noise Level (at 1 meter):...
  • Page 8 PAO C # 52-400-2G-1-PAO HERMO HILLER Figure 1: Cooling Capacity Figure 2: Pump Curves , 167 M , NY 12590 OLID TATE OOLING YSTEMS YERS ORNERS APPINGERS ALLS : (845) 296-1300 F : (845) 296-1303 ELEPHONE SSCOOLING ERSION...

  • Page 9: Section 3

    IEC 127-2 Replacement Fuse: SSCS#20-22332-10, Allied Electronics #740-9575 Alarms: The ThermoCube has two normally closed 1 amp 250V dry contact alarm relays instead of the standard TTL alarms, one for system faults and one for temperature exceeding the alarm range.
  • Page 10 PAO C # 52-400-2G-1-PAO HERMO HILLER Display Screen Figure 3A Controller Input Buttons On/Off Switch Signal Connector 9-Pin D-sub Process Fluid Supply (¼" CPC metal shut off fitting) Figure 3B Fill Cap Handle Power Inlet Module IEC 320 power inlet module with 5X20 fuse Fasten the filter-mounting bracket via the four screws located here Optional 5-micron particle filter...

  • Page 11: Section 4

    ECTION ______________________________________________________________ PERATION The ThermoCube is operated via the control panel located on the front panel. The control panel has a 16-character LCD display and four input keys: UP, DOWN, ENTER, and START. These keys work as follows: Action Pressing the UP key raises the parameter value displayed.

  • Page 12: Simple Operation

    If temperature control at one temperature is desired, follow the steps below. 1) Turn on the ThermoCube and wait for display to read TEMP. 2) Press the UP or DOWN keys to change SETTEMP1 to the desired set point.

  • Page 13: Advanced Operation

    PAO C # 52-400-2G-1-PAO HERMO HILLER NOTE: If continuous control at one set-point temperature is desired, set # OF CYCLES to zero. Menu Structure Status Menu --------> Temperature Input Menu --------> Parameter Input Menu -------->Status Menu   Press up or down SETTEMP 1 TEMPUNIT ...
  • Page 14 Not used if # OF CYCLES is set to zero. # OF CYCLES = Number of cycles between temperature 1 and temperature 2, 0-999 cycles. If set to zero, then the ThermoCube will continuously control at temperature 1. ALARMTEMP = Alarm temperature range +/- set-point. The unit will output an alarm dry contact or TTL signals, but not RS-232.

  • Page 15: Alarms

    D2 COOL Factory Default Value = 2 5.3 A LARMS The ThermoCube chiller has two TTL level alarms, one for temperature and one for system failure: Temperature: TTL high (>4 VDC) fluid temp below alarm set point TTL low (<0.5 VDC) fluid temp above alarm set point System: TTL high (>4 VDC) system operating normally...

  • Page 16: Manual Tuning

    Status Display. 6) Press the Start key once. The left most display character will show the letter A until the auto tune is complete. The ThermoCube will then begin controlling at the set point temperature. 5.5 M...

  • Page 17: Drain Procedure

    3 liter capacity. 3. Remove tank cap and turn on the Thermocube (making sure to hold the drain hose in place) and run the Thermocube until air WARNING starts to shoot out of the hose.
  • Page 18 (without –LT or –HT options). Turn off the ThermoCube and disconnect the AC power cord. Verify that no kinks or blockages exist in plumbing line, both outside and inside the ThermoCube. If no coolant flow blockages exist, contact SSCS for a replacement pump, or for a RMA number to return the unit for pump replacement.

  • Page 19: Section 7

    PTIONS AND UMBER The ThermoCube PAO is configured with many standard options, including: -CPM (metal CPC fittings), - ES (Enhanced RS232 communications), -EF (External Fluid Filter), -SS (all stainless steel plumbing and tank), -LT (Low Temperature operation), -HT (High Temperature operation) and -DC (Dry Contact alarms).

  • Page 20: Rs-232 Communications Option

    NHANCED OMMUNICATIONS TANDARD ThermoCube PAO comes with an Enhanced RS232 communication port. The chiller uses this port to communicate a comprehensive set of control parameters with a Host PC - these parameters are outlined below. This port is a 9-pin female d-sub connector and is found on the rear panel of the chiller (see Figure 3C and 3D).
  • Page 21 Parameters being communicated (see table 2) Data Bytes 1 or 2 bytes depending on parameter (see tables 3 and 4) Timing: ThermoCube PAO can accept a maximum of three commands per second Table 3: Control Parameter Bits 4 – 0...
  • Page 22 5 is Data direction (1 = host to controller, e.g. host sends set point to controller). 3) The ThermoCube PAO can store 8 bytes of transmission and can only handle up to 3 commands per second. 4) The ThermoCube does not echo back commands from the host.

  • Page 23: Other Options Which Come Standard With The Thermocube Pao

    Pin 4 -EF: External Filter Option This option adds an external 5 micron filter to the ThermoCube coolant outlet for systems sensitive to particulate matter in the coolant. Note that this option also dampens coolant flow pulses, producing a smoother coolant flow.

  • Page 24: Other Available Options

    - R: RoHS Compliance With this option we can configure the ThermoCube to use only RoHS 2 compliant components. RoHS certificates are available with this option upon request.

  • Page 25: Section 8

    # 52-400-2G-1-PAO HERMO HILLER ECTION __________________________________________________ LEANING HILLER The exterior surfaces of the ThermoCube may be cleaned with a non- shedding wipe dipped in isopropyl alcohol. ECTION ______________________________________________________ ECHNICAL UPPORT Delighting our customers is our highest priority. Please contact us immediately for technical assistance whenever you have questions or concerns.

  • Page 26: Section 10

    PAO C # 52-400-2G-1-PAO HERMO HILLER ECTION MSDS OOLANTS Material Safety Data Sheet ROYCO 1. C ECTION HEMICAL RODUCT AND OMPANY DENTIFICATION Fax: (973) 887-8422 Common Name : ROYCO MSDS# 740078-04 Supplier Anderol Inc. 215 Merry Lane Validation Date 8/26/2003 East Hanover, NJ 07936 Print Date 9/1/2003.
  • Page 27 PAO C # 52-400-2G-1-PAO HERMO HILLER Potential Chronic Health Carcinogenic Effects: Not applicable. Effects Mutagenic Effects: Not available. Teratogenic Effects: Not available. Medical Conditions Aggravated Repeated or prolonged exposure is not known to aggravate medical by Overexposure condition. Overexposure /Signs/Symptoms Not available.
  • Page 28 PAO C # 52-400-2G-1-PAO HERMO HILLER 6. A ECTION CCIDENTAL ELEASE EASURES Small Spill and Leak Absorb with an inert material and put the spilled material in an appropriate waste disposal. Large Spill and Leak Absorb with an inert material and put the spilled material in an appropriate waste disposal. Do not allow any potentially contaminated water including rain water, runoff from fire fighting or spills to enter any waterway, sewer or drain.
  • Page 29 PAO C # 52-400-2G-1-PAO HERMO HILLER Vapor Pressure Not available. Vapor Density Not available Volatility Not available. Odor Threshold Not available. Evaporation Rate Not available. Not available Viscosity Not available. LogK ow Not available. Solubility Very slightly soluble in cold water, hot water. 10.
  • Page 30 PAO C # 52-400-2G-1-PAO HERMO HILLER ROYCO Products of Degradation Not available. Toxicity of the Products of Not available. Biodegradation Special Remarks on the Not available. Products of Biodegradation 13. D ECTION ISPOSAL ONSIDERATIONS Waste Information Waste must be disposed of in accordance with federal, state and local environmental control regulations.
  • Page 31 PAO C # 52-400-2G-1-PAO HERMO HILLER Clean Air Act (CAA) 112 accidental release prevention: No ingredient was found. Clean Air Act (CAA) 112 regulated flammable substances: No ingredient was found. Clean Air Act (CAA) 112 regulated toxic substances: No ingredient was found. State Regulations California Prop.
  • Page 32 PAO C # 52-400-2G-1-PAO HERMO HILLER Other Special Not available. Considerations Responsible Name Mr. Max Naggar Date of Printing 9/1/2003. Date of Issue 8/26/2003. Date of Previous 2003-01-31 Issue Version Notice to Reader To the best of our knowledge, the information contained herein is accurate. However, neither the above named supplier nor any of its subsidiaries assumes any liability whatsoever for the accuracy or completeness of the information contained herein.

  • Page 33: Warranty

    _____________________________________________________________ ARRANTY This ThermoCube PAO chiller is covered under a two-year parts and labor warrant. The length of a warranty is product-specific, depending on the type and planned usage of the product, but will be specified in the quotation upon which a purchase order is made. Prototypes are not warranted, but will be repaired/adjusted after original shipment until they meet the agreed-upon specifications.
