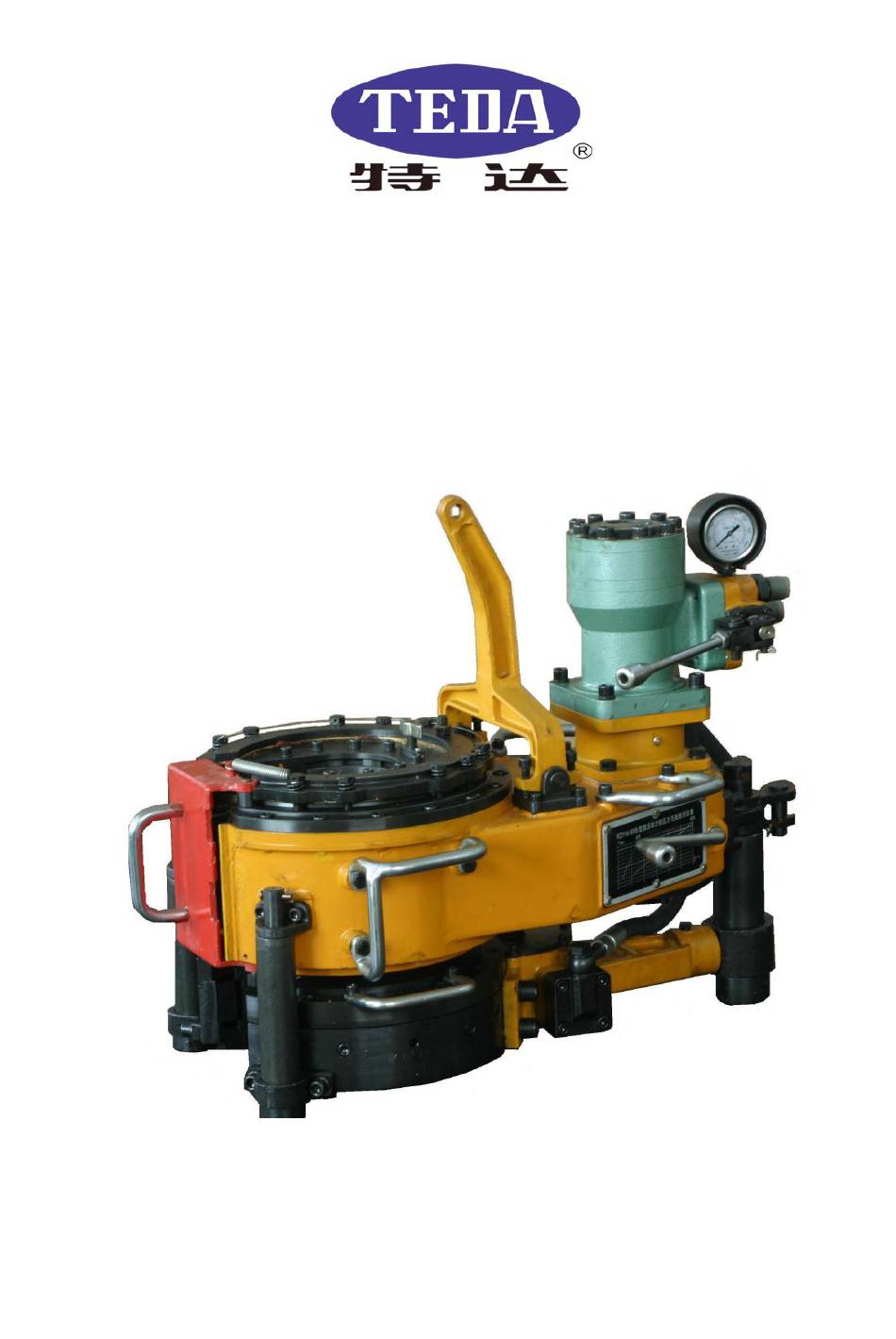

MODEL XQ114/6BHYDRAULIC POWER TONG PARTS
OPERATION MANUAL
2014-10
YANCHENG TEDA DRILLING AND PRODUCTION EQUIPMENT CO., LTD

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the XQ114/6B and is the answer not in the manual?

Questions and answers

Juzer mohammed Tyebbhoy
August 19, 2025

I am a trader based in Muscat, Oman and one of my customers is looking for the below item for which we require your best TRADER PRICE (Preferable from your distributor in Oman/UAE): - POWER TONG, HYDRAULIC, 4-1/2", MODEL: XQ114/6YB, MAKE: YANCHENG TEDA DRILLING & PRODUCTION EQUIPMENT, P/N: XQ114/6YB

0
Yang Mike
April 1, 2025

I need some tong and also components

0

Related Manuals for TEDA XQ114/6B

Summary of Contents for TEDA XQ114/6B

  • Page 1 MODEL XQ114/6BHYDRAULIC POWER TONG PARTS OPERATION MANUAL 2014-10 YANCHENG TEDA DRILLING AND PRODUCTION EQUIPMENT CO., LTD...
  • Page 2 Safety Instruction and Legend Description Safety Instruction ●Operators must read and know this manual well. ●Operators must wear work uniform, safety shoes, safety helmet, safety gloves, etc. ●Tie the back guy according to the instruction. Don’t tie it in the wrong direction. ●Operation at the side of tong body opening.

  • Page 3: Table Of Contents

    CONTENTS 1.Summary.................................1 2.Specification................................1 3.Installation................................1 4.Operation..................................2 5.Maintenance & Lubrication............................3 6.Ordinary problems and troubleshooting guide.......................4 7.Table of jaw and dies..............................4 7.1The table of jaw specification..........................4 7.2The table of dies specification..........................4 8.Connection between pressure and torque.........................5 9.Figures and parts list..............................5 9.1Assembly and parts list............................6 9.2Master tong and parts list............................7 9.3shell and accessory and parts list..........................8 9.4Tong head assembly and parts list........................10...

  • Page 4: Summary

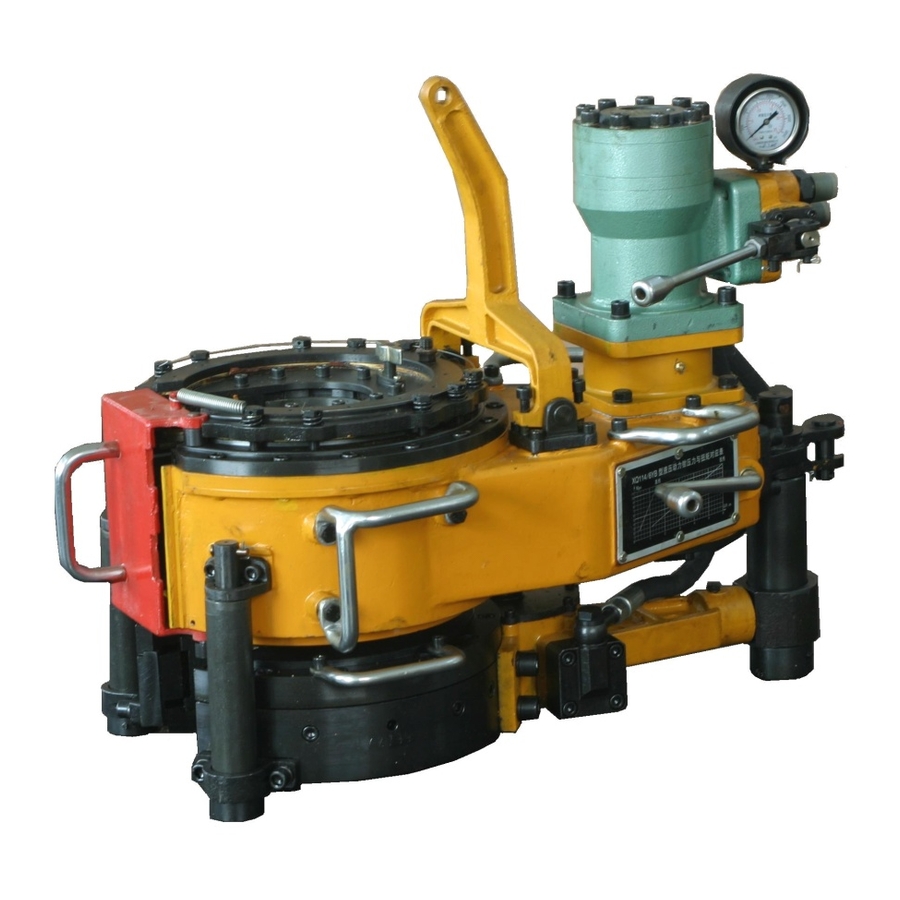

    YANCHENG TEDA DRILLING & PRODUCTION EQUIPMENT CO.,LTD Summary Model XQ114/6B(4 1/2") hydraulic power tong is an open type power tong for the making up and breaking out of tubing in well services. This product has the following features: 1.1 The tong is made up of master tong and backup tong, the master tong has a high and low gear train, the tong is compact, light and efficient.

  • Page 5: Operation

    Model XQ114/6B HYDRAULIC SUCKER ROD TONG OPERATION MANUAL YANCHENG TEDA DRILLING & PRODUCTION EQUIPMENT CO.,LTD 3.3 Level Break out direction Adjust the screw (Z6-58)on the tong hanger to level the tong and Left backup, this should be done to ensure proper gripping of the jaws(see Fig.5).

  • Page 6: Maintenance & Lubrication

    Model XQ114/6B HYDRAULIC SUCKER ROD TONG OPERATION MANUAL YANCHENG TEDA DRILLING & PRODUCTION EQUIPMENT CO.,LTD 4.3 Replacing jaws Tong and backup insert jaws slide into the tong heads easily. Between opening sides of master tong and back tong ，limit screw (Z6-81),(B6-25)shall be set to prevent jaws out of position when in operation .In case of taking jaw out, activate master tong or back tong to expose limit screw, loose limit screw (Z6-81) or (B6-25),take out or load jaws from the master tong or back tong opening place.

  • Page 7: Ordinary Problems And Troubleshooting Guide

    Model XQ114/6B HYDRAULIC SUCKER ROD TONG OPERATION MANUAL YANCHENG TEDA DRILLING & PRODUCTION EQUIPMENT CO.,LTD 6. ORDINARY PROBLEMS AND TROUBLESHOOTING GUIDE Trouble Cause. Remedy A. Jaws are selected improperly Change jaws to proper size B. Grit mud etc. fill die grooves Clean the dies Tong die slippage.

  • Page 8: Connection Between Pressure And Torque

    Model XQ114/6B HYDRAULIC SUCKER ROD TONG OPERATION MANUAL YANCHENG TEDA DRILLING & PRODUCTION EQUIPMENT CO.,LTD 8. Connection between pressure and torque 9. Figures and parts list Description Figure and table number Assembly Figure 3，Table1 Master tong Figure 4，Table2 Shell and accessory Figure 5，Table3...

  • Page 9: Assembly And Parts List

    Model XQ114/6B HYDRAULIC SUCKER ROD TONG OPERATION MANUAL YANCHENG TEDA DRILLING & PRODUCTION EQUIPMENT CO.,LTD 9.1Assembly and parts list (Fig.3,Table 1) Fig.3 Table 1 Assembly parts list Parts number Description Qty. Z6-00 XYQ6B.Z.0 Master tong QD6-00 XYQ6B.QD.0 Front guide pole assembly B6-00 XYQ6B.B.0...

  • Page 10: Master Tong And Parts List

    Model XQ114/6B HYDRAULIC SUCKER ROD TONG OPERATION MANUAL YANCHENG TEDA DRILLING & PRODUCTION EQUIPMENT CO.,LTD 9.2Master tong and parts list (Fig.4,Table 2) Fig.4 Table 2 Master tong parts list Parts number Description Qty. Z6-133 XYQ6B.Z.5(1A) Single safety door assembly Z6-134...

  • Page 11: Shell And Accessory And Parts List

    Model XQ114/6B HYDRAULIC SUCKER ROD TONG OPERATION MANUAL YANCHENG TEDA DRILLING & PRODUCTION EQUIPMENT CO.,LTD 9.3Shell and accessory and parts list(Fig.5,Table 3) Fig.5...
  • Page 12 Model XQ114/6B HYDRAULIC SUCKER ROD TONG OPERATION MANUAL YANCHENG TEDA DRILLING & PRODUCTION EQUIPMENT CO.,LTD Table 3 Shell and accessory parts list Parts number Description Qty. Z6-42 XYQ6B.Z-75 Hanger rod Z6-58 GB/T70.1 Hexagon socket head cap screw M10×35-8.8 Z6-25 GB/T70.1 Hexagon socket head cap screw M8×20-8.8...

  • Page 13: Tong Head Assembly And Parts List

    Model XQ114/6B HYDRAULIC SUCKER ROD TONG OPERATION MANUAL YANCHENG TEDA DRILLING & PRODUCTION EQUIPMENT CO.,LTD 9.4Tong head assembly and parts list(Fig.6,Table 4) Fig.6...
  • Page 14 Model XQ114/6B HYDRAULIC SUCKER ROD TONG OPERATION MANUAL YANCHENG TEDA DRILLING & PRODUCTION EQUIPMENT CO.,LTD Table 4 Tong head assembly parts list Parts number Description Qty. Z6-70 XYQ6B.Z-34 Open gear cover Z6-71 XYQ6B.Z-35 Jaw set bracket Z6-81 XYQ6B.Z-32 Retaining pin Z6-80 XYQ6B.Z-43...

  • Page 15: Braking And Centralizing Mechanism And Parts List

    Model XQ114/6B HYDRAULIC SUCKER ROD TONG OPERATION MANUAL YANCHENG TEDA DRILLING & PRODUCTION EQUIPMENT CO.,LTD 9.5Backing and centralizing mechanism and parts list(Fig.7,Table 5) Fig.7 Table 5 Backing and centralizing mechanism parts list Parts number Description Qty. Z6-50 GB/T119 Cylindrical pin5×18 Z6-49 XYQ3B.Z.1-7...

  • Page 16: Centralizing Mechanism And Parts List

    Model XQ114/6B HYDRAULIC SUCKER ROD TONG OPERATION MANUAL YANCHENG TEDA DRILLING & PRODUCTION EQUIPMENT CO.,LTD 9.6Centralizing mechanism and parts list(Fig.8,Table 6) Fig.8 Table 6 Centralizing mechanism and parts list Parts number Description Qty. Z6-46 XYQ6B.Z-24 Friction plate Z6-66 GB/T70.1 Hexagon socket head cap screw M10×25-8.8 Z6-43 XYQ6B.Z-22...

  • Page 17: Transmission Mechanism And Parts List

    Model XQ114/6B HYDRAULIC SUCKER ROD TONG OPERATION MANUAL YANCHENG TEDA DRILLING & PRODUCTION EQUIPMENT CO.,LTD 9.7Transmission and parts list(Fig.9,Table 7) Fig.9...
  • Page 18 Model XQ114/6B HYDRAULIC SUCKER ROD TONG OPERATION MANUAL YANCHENG TEDA DRILLING & PRODUCTION EQUIPMENT CO.,LTD Table 7 Transmission parts list Parts number Description Qty. Z6-4 XYQ6B.Z-2 Shell Z6-38 XYQ6B.Z-20 Position Z6-39 GB/T152 Straight hydraulic grease nipple M8×1 Z6-97 XYQ6B.Z-48 Idle gear shaft Z6-98 XYQ6B.Z-49...

  • Page 19: Gear Assembly And Parts List

    Model XQ114/6B HYDRAULIC SUCKER ROD TONG OPERATION MANUAL YANCHENG TEDA DRILLING & PRODUCTION EQUIPMENT CO.,LTD 9.8Gear shifting assembly(Fig.10,Table 8) Fig.10 Table 8 Gear shifting assembly Parts number Description Qty. Z6-83 XYQ3B.Z.6-1 Shaft sleeve Z6-86 XYQ3B.Z.6-4 Roller shaft Z6-87 GB/T91 Cotter pin 2×10 Z6-88 XYQ3B.Z.6-5...

  • Page 20: Hand Control Valve And Parts List

    Model XQ114/6B HYDRAULIC SUCKER ROD TONG OPERATION MANUAL YANCHENG TEDA DRILLING & PRODUCTION EQUIPMENT CO.,LTD 9.9Hand control valve and parts list(Fig.11,Table9) Fig.11...
  • Page 21 Model XQ114/6B HYDRAULIC SUCKER ROD TONG OPERATION MANUAL YANCHENG TEDA DRILLING & PRODUCTION EQUIPMENT CO.,LTD Table9 Hand control valve and parts list Parts number Description Qty. 3C1－144 GB/T91 Cotter pin3.2×20 3C1－121 GB/T882 Pin shaft B10×40 3C1－123 GB/T882 Pin shaft B12×45 3C1－127...

  • Page 22: Safety Door Assembly And Parts List

    Model XQ114/6B HYDRAULIC SUCKER ROD TONG OPERATION MANUAL YANCHENG TEDA DRILLING & PRODUCTION EQUIPMENT CO.,LTD 9.10 Safety door assembly and parts list (Fig.12,Table10) Fig.12 Table10 Safety door assembly parts list Parts number Description Qty. Z6-123 Bicycle pulling spring 28 Pulling spring（Ф2.5×Ф15×65）...

  • Page 23: Backup Tong And Parts List

    Model XQ114/6B HYDRAULIC SUCKER ROD TONG OPERATION MANUAL YANCHENG TEDA DRILLING & PRODUCTION EQUIPMENT CO.,LTD 9.11Backup tong and parts list( Fig.13,Table11) Fig.13 Table11 Backup tong parts list Parts number Description Qty. B6-98 Backup tong head B6-99 Backup tong tail...

  • Page 24: Backup Tong Head Assembly And Parts List

    Model XQ114/6B HYDRAULIC SUCKER ROD TONG OPERATION MANUAL YANCHENG TEDA DRILLING & PRODUCTION EQUIPMENT CO.,LTD 9.12 Backup tong head assembly and parts list(Fig.14,Table12) Fig.14...
  • Page 25 Model XQ114/6B HYDRAULIC SUCKER ROD TONG OPERATION MANUAL YANCHENG TEDA DRILLING & PRODUCTION EQUIPMENT CO.,LTD Table12 Backup tong head assembly parts list Parts number Description Qty. B6-64 XYQ1.8Z-24 Tong head handle B6-70 GB/T70.1 Hexagon socket head cap screwM8×25-8.8 B6-1 XYQ6B.B-1...

  • Page 26: Backup Tong Head Assembly And Parts List

    Model XQ114/6B HYDRAULIC SUCKER ROD TONG OPERATION MANUAL YANCHENG TEDA DRILLING & PRODUCTION EQUIPMENT CO.,LTD 9.13 Backup tong tail and parts list (Fig.15,Table13) Fig.15...
  • Page 27 Model XQ114/6B HYDRAULIC SUCKER ROD TONG OPERATION MANUAL YANCHENG TEDA DRILLING & PRODUCTION EQUIPMENT CO.,LTD Table13 Backup tong tail parts list Parts number Description Qty. B6-10 GB/T70.1 Hexagon socket head cap screw M6×16-8.8 B6-9 XYQ6B.Z-20 Locating plate B6-8 XYQ6B.B-7 Rotation shaft B6-100 GB/T70.1...

  • Page 28: Hanger Assembly And Parts List

    Model XQ114/6B HYDRAULIC SUCKER ROD TONG OPERATION MANUAL YANCHENG TEDA DRILLING & PRODUCTION EQUIPMENT CO.,LTD 9.14Hanger assembly and parts list(Fig.16,Table14) Fig.16 Table14 Hanger assembly parts list Parts number Description Qty. DT6-10 GB/T91 Cotter pin 4×30 DT6-9 GB/T882 Pin shaft B20×60 DT6-7 XYQ3C.DT.2...

  • Page 29: Front Guide Pole Assembly And Parts List

    Model XQ114/6B HYDRAULIC SUCKER ROD TONG OPERATION MANUAL YANCHENG TEDA DRILLING & PRODUCTION EQUIPMENT CO.,LTD 9.15Front guide pole assembly and parts list( Fig.17,Table15) Fig.17 Table15 Front guide pole assembly parts list Parts number Description Qty. QD6-6 XYQ6B.QD.1 Front guide pole sleeve QD6-8 XYQ6B.QD-2...

  • Page 30: Rear Guide Pole Assembly And Parts List

    Model XQ114/6B HYDRAULIC SUCKER ROD TONG OPERATION MANUAL YANCHENG TEDA DRILLING & PRODUCTION EQUIPMENT CO.,LTD 9.16Rear guide pole assembly and parts list(Fig.18,Table16) Fig.18 Table16 Rear guide pole assembly parts list Parts number Description Qty. HD6-7 XYQ6B.HD.1 Rear guide pole sleeve HD6-8 XYQ6B.HD-3...

  • Page 31: Trucking, Storage And After Service

    Model XQ114/6B HYDRAULIC SUCKER ROD TONG OPERATION MANUAL YANCHENG TEDA DRILLING & PRODUCTION EQUIPMENT CO.,LTD 10.Trucking, Storage and After Service 10.1 Trucking When you move hydraulic power tong, you should move it smoothly and keep it from wet, and don’t put it upside to downside and also keep it from damage.
  • Page 32 ADD： Hengji Town, Jianhu county, Jiangsu Province, China P.C.： 224763 TEL： +86 (0)515-86582548 FAX： +86 (0)515-86582386 E-mail： td@chinateda.com http://www.cn-teda.com...
