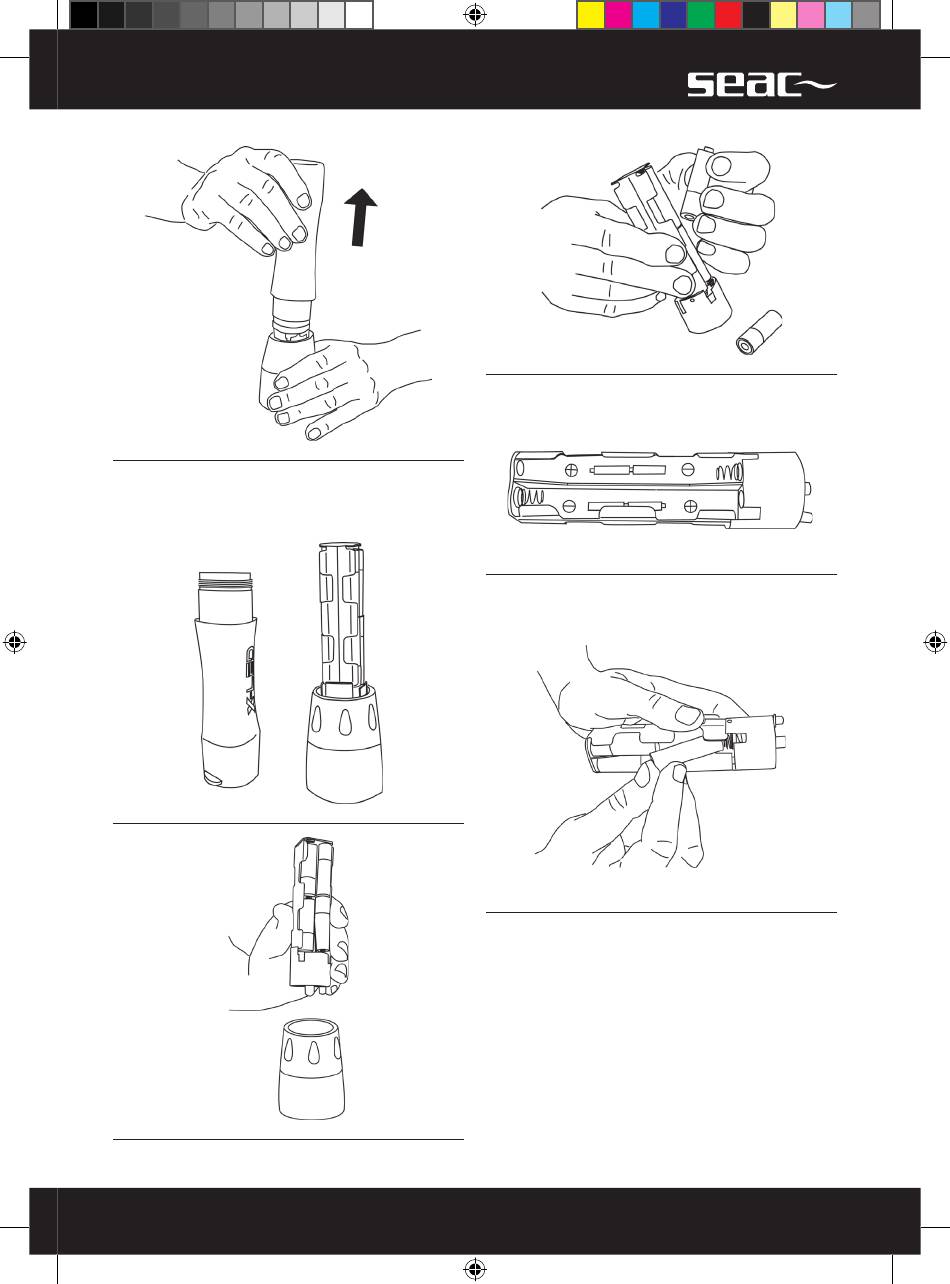

Drawing 2 - Unscrew
Once unscrewed, from the head (drawing 3), remove the
battery casing (drawing 4) and begin to remove the batteries to
be replace (drawing 5).
Drawing 3 - Diagram of open torch
Drawing 4 - Removal of the battery casing
4362-SEAC-X5-LED.indd 9
Drawing 5 - Replacement of dead batteries
Insert the new batteries following the indications for polarity on
the casing (drawing 6).
Drawing 6 - Diagram of polarity markings on battery casing
Once the insertion is complete (drawing 7), insert the head
of the battery casing into the space in the head of the torch.
(drawings 8 - 9).
Drawing 7 - Correct insertion of new batteries
