Summary of Contents for Belkin F5U220

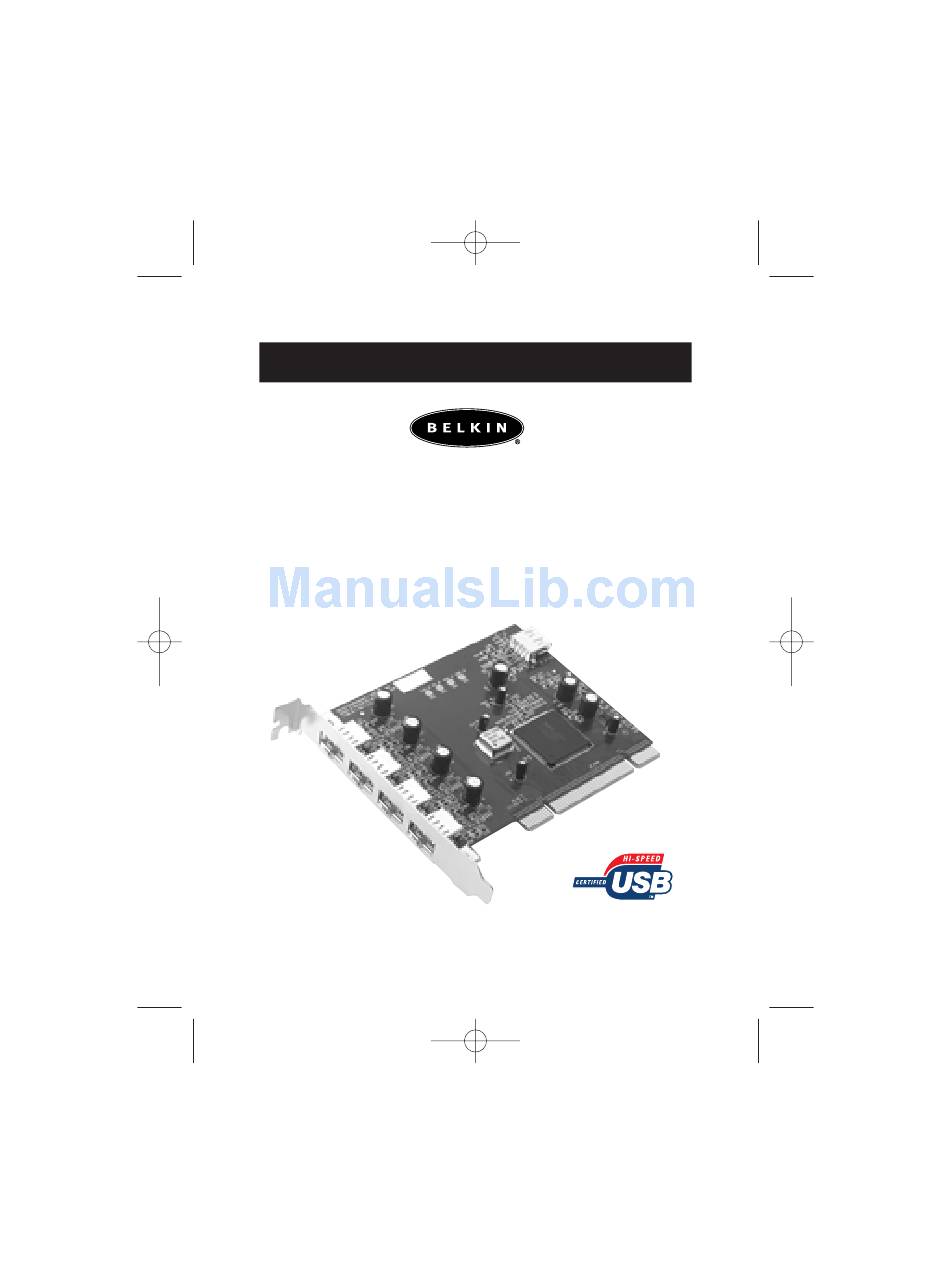

- Page 1 P73768-A-F5U220-man.qxd 12/21/01 5:03 PM Page 1 USB 2.0 Hi-Speed PCI Card User Manual F5U220 P73768-A...
- Page 2 P73768-A-F5U220-man.qxd 12/21/01 5:03 PM Page 2...
- Page 3 5:03 PM Page 1 Welcome to USB 2.0! Thank you for purchasing the Belkin F5U220 Hi-Speed USB 2.0 PCI Card. Now you can upgrade your computer with the latest USB technology. You will be able to take advantage of a host of new Hi-Speed USB 2.0 products that will be introduced soon! USB 2.0 products like hard drives, scanners,...
-
Page 4: Specifications
P73768-A-F5U220-man.qxd 12/21/01 Features • Three USB host adapters integrated into a single PCI Card, one USB 2.0 EHCI host controller providing 480Mbps of USB bandwidth and two USB 1.1 OHCI host controllers providing 12Mbps of USB bandwidth each. • 5 downstream Hi-Speed USB ports. - Page 5 P73768-A-F5U220-man.qxd 12/21/01 5:03 PM Page 3 Package Contents • Belkin 5-Port USB 2.0 PCI Card • User Manual • Driver Installation CD-ROM System Requirements • PC-compatible computer with available PCI slot. • Windows 98SE, Windows 2000, Windows ME, Windows XP...
-
Page 6: Operating System Compatibility
P73768-A-F5U220-man.qxd 12/21/01 Operating System Compatibility USB 1.x Operating System Support Windows 98 SE Windows 2000 Windows Me Windows XP 5:03 PM Page 4 USB 2.0 Support Provided in Operating System... -

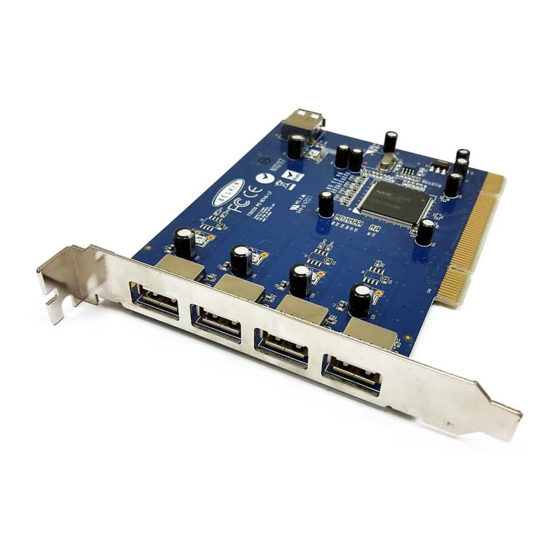

Page 7: Pci Card Description
P73768-A-F5U220-man.qxd 12/21/01 5:03 PM Page 5 PCI Card Description PCI POWER LED PORT POWER LED PORT POWER LED PORT 5 PORT 1 PORT 2 PORT 3 PORT 4... -
Page 8: Hardware Installation
Now secure the PCI Card with the screw that you removed in step #5. Replace the computers cover. Replace your computer power cable and insert the Belkin USB 2.0 driver installation CD into your computers CD- ROM drive. (10) Turn on power and start the Windows operating system. -
Page 9: Driver Installation
P73768-A-F5U220-man.qxd 12/21/01 Driver Installation Installation Procedure for Windows 98se This installation procedure will install two USB 1.1 Host Controllers and one USB 2.0 Enhanced Host Controller. Windows will detect “NEC USB Open Host Controller” and the “Add New Hardware” dialog box will open. - Page 10 (10) Select “Search for the best driver for your device” and click “Next”. (11) Check the “CD-ROM drives” box. Click “Next”. (12) Windows will locate the driver for “Belkin USB 2.0 High Speed Host Controller” Click “Next”. (13) Windows will now install the Enhanced Host Controller driver.
-
Page 11: Verifying Proper Installation (Windows 98/98 Se)
Click on the plus-sign (+) next to Universal Serial Bus controllers”. The Device Manager list will now include two “NEC USB Open Host Controller” entries, one “Belkin USB 2.0 Hi-Speed Host Controller” entry, and two additional “USB Root Hub” entries. 5:03 PM... -
Page 12: Installation Procedure For Windows 2000
Select “Search for a suitable driver for my device (recommended)” and click “Next”. Check the “CD-ROM drives” box. Click “Next”. Windows will find “Belkin USB 2.0 Hi-Speed Host Controller”. Click “Next”. Windows will now install the Enhanced Host Controller driver. Click “Finish”. -
Page 13: Verifying Proper Installation (Windows 2000)
Click the plus-sign (+) next to Universal Serial Bus controllers The Device Manager list will now include two “NEC USB Open Host Controller” entries, one “Belkin USB 2.0 Hi-Speed Host Controller” entry, and two additional “USB Root Hub” entries. 5:03 PM... -
Page 14: Installation Procedure For Windows Me
Select “Automatic search for a better driver (recommended)”. Click “Next”. Check the “CD-ROM Drives” box. Click “Next”. Windows will locate the driver for “Belkin USB 2.0 High speed Host Controller” . Click “Next”. Windows will now install the USB 2.0 Enhanced Host Controller driver. -
Page 15: Verifying Proper Installation (Windows Me)
Click on the plus-sign (+) next to Universal Serial Bus controllers”. The Device Manager list will now include two “NEC USB Open Host Controller (E13+)” entries, one “Belkin USB 2.0 Hi-Speed Host Controller” entry, and two additional “USB Root Hub” entries. -
Page 16: Installation Procedure For Windows Xp
P73768-A-F5U220-man.qxd 12/21/01 Installation Procedure for Windows XP Windows will detect “NEC PCI to USB Open Host Controller” The required driver support will be automatically installed. No user input is required. This will repeat one more time. NOTE: USB 2.0 driver support is not included in the initial release version of Windows XP. -
Page 17: Verifying Proper Installation (Windows Xp)
P73768-A-F5U220-man.qxd 12/21/01 Verifying Proper Installation (Windows XP) After installation, check the Windows Device Manager to confirm that the 5-Port USB 2.0 PCI Card has been properly installed. (1) Right-click on My Computer. (2) Select Properties. (3) Select he Hardware tab and click on the Device Manager button. -
Page 18: Fcc Statement
Belkin Components warrants this product against defects in materials and workmanship for its lifetime. If a defect is discovered, Belkin will, at its option, repair or replace the product at no charge provided it is returned during the warranty period, with transportation charges prepaid, to the authorized Belkin dealer from whom you purchased the product. - Page 19 7 Bowen Cresent • West Gosford NSW 2250 • Australia Tel: +61 (2) 4325 4666 Fax:+61 (2) 4325 4277 e-mail: eurosupport@belkin.com © 2001 Belkin Components. All rights reserved. All trade names are registered trademarks of respective manufacturers listed. 5:03 PM Page 17...
