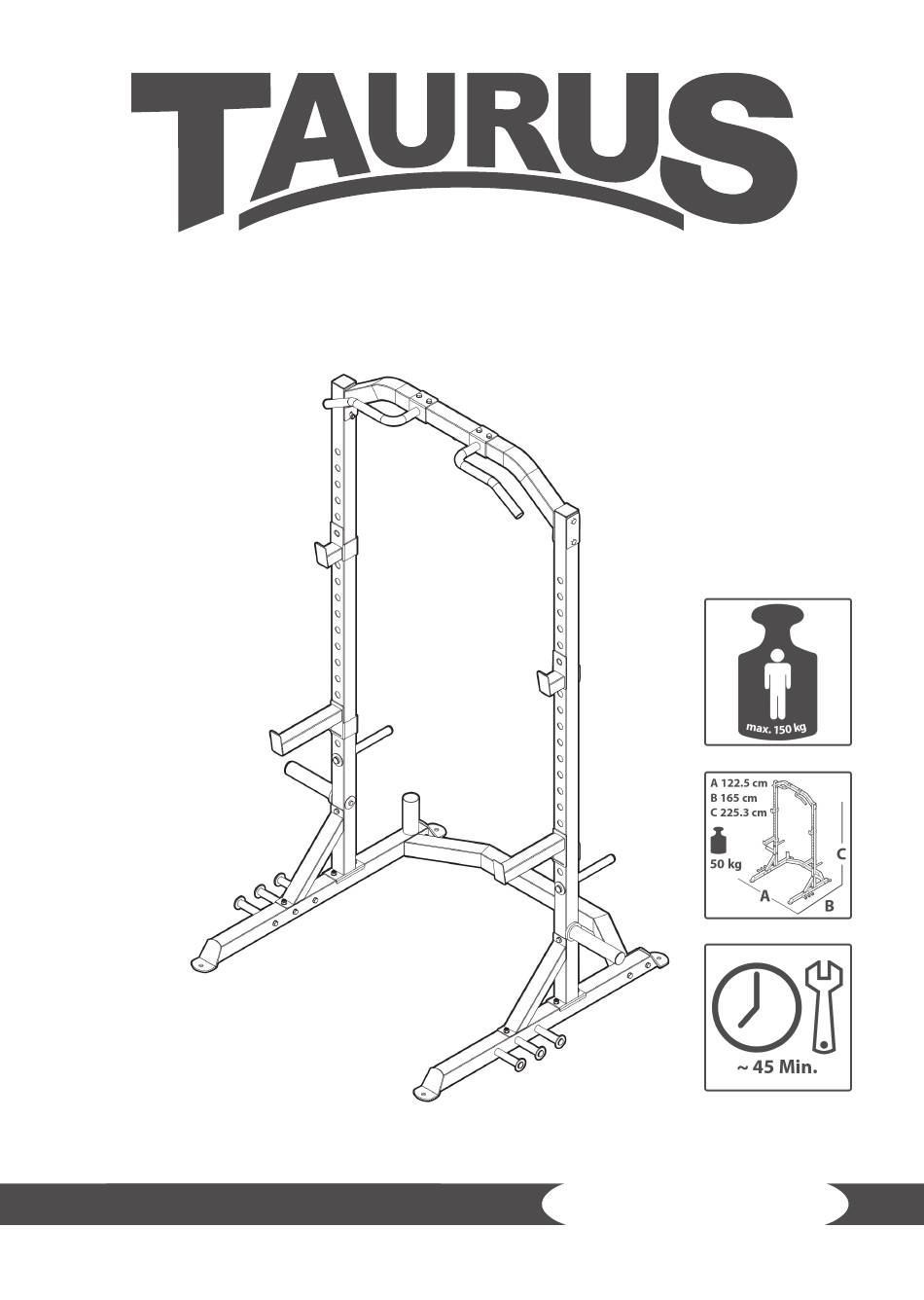

- Page 1 Assembly and operating instructions TFPOWERRACK01.02 Taurus Power Rack TF-POWERRACK...
- Page 2 Power Rack...
- Page 3 Dear Customer, Thank you for deciding for a high-quality training equipment of the brand Taurus, the brand that makes athlete‘s hearts beat faster. Taurus offers a wide range of home fitness equipment like elliptical cross trainers, ergometers, treadmills and rowing machines. Taurus equipment is the optimal equipment for all those who want to train at home independent of goals and fitness level.
-
Page 4: Table Of Contents
CONTENTS GENERAL INFORMATION 1.1 Technical data 1.2 Personal safety 1.3 Set-up place ASSEMBLY INSTRUCTIONS, MAINTENANCE AND CARE 2.1 General instructions 2.2 Faults and Troubleshooting 2.3 Maintenance and service calendar ASSEMBLY 3.1 Package contents 3.2 Assembly instructions WARRANTY INFORMATION DISPOSAL ORDERING ACCESSORIES ORDERING SPARE PARTS 7.1 Service-hotline 7.2 Serial number and model name... -
Page 5: General Information
GENERAL INFORMATION Technical data Weight and dimensions: Article weight (gross, including packaging): 52 kg Packaging dimensions (L x W x H): Parcel 1/2 - 217 cm x 19.5 cm x 7 cm Parcel 2/2 - 128 cm x 38 cm x 17 cm Set-up dimensions (L x W x H): approximately 122.5 cm x 165 cm x 225.3 cm Maximum user weight: 150 kg (330 lbs) -
Page 6: Personal Safety
Personal safety Before you start using the equipment, you should consult your physician that this type of exercise is suitable for you from a health perspective. Particularly affected are persons who: have a hereditary disposition to high blood pressure or heart disease, are over the age of 45, smoke, have high cholesterol values, are overweight and/or have not exercised regularly in the past year. -
Page 7: Set-Up Place
Set-up place The equipment should only be used indoors, in a sufficiently heated and dry area (ambient temperature between 10°C and 35°C). The equipment should not be used outdoors or in rooms with high humidity (over 70%) like swimming pools. The equipment should only be stored in surroundings with an ambient temperature between 5°C and 45°C. -
Page 8: Assembly Instructions, Maintenance And Care
You should therefore immediately replace damaged or worn components. Please contact your contract partner in such a case. The equipment should no longer be used until it has been repaired. When needed, only use original Taurus spare parts. Check the tightness of all screw connections once a month. -
Page 9: Faults And Troubleshooting
Faults and Troubleshooting The equipment runs through regular quality controls during production. Nevertheless, errors or malfunctions on the equipment may occur. Individual parts are often the cause of faults and replacement is usually sufficient. Please use the following overview to see the six most common errors and how to repair them. -
Page 10: Assembly
ASSEMBLY In order to make the assembly of the equipment easier, we recommend that you do not initially fully tighten the screws and bolts. However, you should make sure that all screws and bolts are firmly tightened after assembly. Package contents The package contains the parts represented in the illustration. - Page 11 Screws No. 17 No. 18 No. 19 (M10x80mm) Hex Bolt x 6pcs (M10x85mm) Hex Bolt x 4pcs (M10x20mm) Hex Bolt x 8pcs No. 20 No. 21 No. 22 (M12x85mm) Hex Bolt x 4pcs (M10) Washer x 30pcs (M10) Locknut x 16pcs No.
-
Page 12: Assembly Instructions
Assembly instructions Unpack the carton and place all parts on the floor carefully and remove the packing material and check each part as manual. Step 1: 1. Attach two pcs upright (4) onto the left and right base frame (2 and 3) using 4 pcs x carriage bolts(27), 4pcs x washer (21) and 4pcs x lock nut (22). - Page 13 Step 2: 1. Attach left and right handle bar (12 and 13) onto top crossing bar(5) using 4 pcs x bolt (18), 8 pcs x washer (21) and 4 pcs x lock nut (22). Step 3: 1. Attach top crossing frame (5) to each upright (4) with connection plate (15) using 4 pcs x bolt (20), 8 pcs x washer (23) and 4 pcs x lock nut (24).
- Page 14 Step 4: 1. Attach each the plate rod a (7) into each upright (4) using 1 pc x bolt (19) and 1 pc x big washer (25). 2. Slide each rubber ring (26) onto each plate rod (7). 3. Attach each the rod (14) into left and right base frame (2 and 3) using 3 pcs x bolt (19) and washer (21).
-
Page 15: Warranty Information
WARRANTY INFORMATION Taurus training fitness equipment is subject to strict quality controls. However, if a fitness equipment purchased from us does not work perfectly, we take it very seriously and ask you to contact our customer service as indicated. We are happy to help you by phone via our service hotline. - Page 16 Warranty service Within the warranty period, equipment which develops faults as a result of material or manufacturing defects, will be repaired or replaced at our discretion. Ownership of equipment or parts of equipment which have been replaced is transferred to us. The warranty period is not extended nor does a new warranty period begin following repair or replacement under the warranty.
-
Page 17: Disposal
The materials can be recycled as per their symbols. Through the reuse, recycling of materials or other forms of recovery of old equipment, you make an important contribution to the protection of the environment. ORDERING ACCESSORIES Taurus Ab Straps Art. No. TB-9510 Body Attack chin-up-dip-belt Art. No. BA-700... -
Page 18: Ordering Spare Parts
10:00 - 17:00 Serial number and model name Before assembling your equipment, find the serial number on the white sticker and enter it in the appro- priate space. Serial number: Brand / category: Model name: Taurus Power Rack Power Rack... -
Page 19: Parts List
Parts list Description Qty. Below Crossing Frame Left Base Frame Right Base Frame Upright Top Crossing Frame Support Frame Plate Rod A Small Left Holder Small Right Holder Big Left Holder Big Right Holder Left Holder Bar Right Holder Bar Connection Plate Plate Rod B Hex Bolt (M10x80mm) -
Page 20: Exploded Drawing
Exploded drawing 2 or 3 GROUND Power Rack... - Page 21 DISCLAIMER ©2011 TAURUS is a registered brand of the company Sport-Tiedje GmbH. All rights reser- ved. Any use of this trademark without the explicit written permission of Sport-Tiedje is prohibited. Product and instructions are subject to change. Technical data can be changed without advance notice.
- Page 22 Notes Power Rack...
- Page 24 Taurus Power Rack...
