"USB Serial Adapter"
User Manual
V1.00

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the F5U003 and is the answer not in the manual?

Questions and answers

Summary of Contents for Belkin F5U003

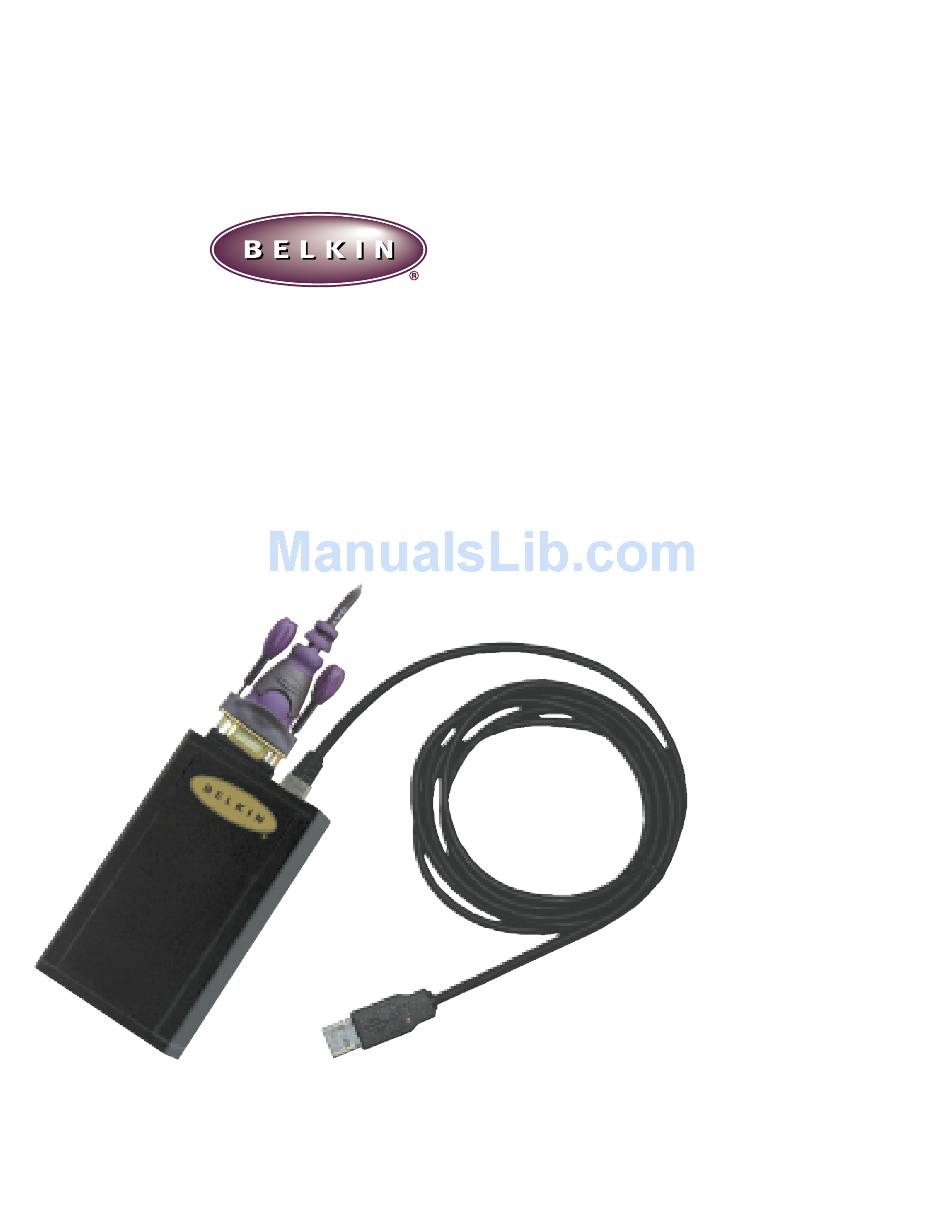

  • Page 1 "USB Serial Adapter" User Manual V1.00...
  • Page 2: Table Of Contents

    Table of Contents Introduction ....... .2 Device Specifications ......2 2.1.
  • Page 3: Introduction

    1. Introduction The USB Serial Adapter provides a standard serial interface to a PC equipped with USB without requiring an add-in card. It supports many existing applications and devices, providing true Plug-and-Play capability. By default, the USB Serial Adapter installs without taking up any resources.
  • Page 4: Installing Windows ® 98 Drivers

    3. Installation 3.1. Installing Windows 1. Insert the disk labeled "USB Serial Adapter Installation Disk" into your floppy drive (typically drive A:). 2. Insert the flat (type A) connector into an available USB port on your PC or USB hub attached to your PC. 3.
  • Page 5 A new COM port will automatically be installed for both the OSR2.1 and Windows ® to determine the name of the new COM port. 1. Follow the instructions below to open the Device Manager: 1. Right-click the "My Computer" icon on your desktop. 2.
  • Page 6: Adding Dos Box Support (Optional)

    3.2. Adding DOS Box Support (Optional) DOS Box support for the USB Serial Adapter is useful if you intend to use DOS applications, but not necessary for Windows applications. If you are using only Windows recommended that you do not install this feature as it uses resources.
  • Page 7: Uninstalling The Usb Serial Adapter Drivers

    10. You will be asked for the USB to Serial installation disk. Insert the disk into your floppy drive and click "OK". If a dialog pops up stating that a file could not be found, make sure that the Copy files from: edit box contains the name of your floppy drive and click "OK".
  • Page 8: Using The Usb Serial Adapter

    4. Using the USB Serial Adapter 4.1. Serial Plug-and-Play Device Detection A Plug-and-Play device, such as a modem, can be detected one of two ways: 1. Attach the serial device to the USB Serial Adapter. Unplug cable and plug the USB B connector to the USB Serial Adapter.
  • Page 9: Led Indicator Lights

    4.3. LED Indicator Lights There are three LEDs on the USB Serial Adapter. When the device is installed, the center, green LED will remain blinking until the installation is complete. If the installation is successful, the red LED will remain on, indicating power. When the device is plugged in after installation, the lights will blink one at a time in sequence from the red LED to the green LED, then back.
  • Page 10: Troubleshooting

    5. Troubleshooting 5.1. Port unavailable If the installation of the USB Serial Adapter has been completed but the port is unavailable to applications, follow the instructions below to diagnose the problem: 1. Check the LEDs on the USB Serial Adapter. •...
  • Page 11: Communications Garbled

    Clarke Road • Mount Farm • Bletchley • Milton Keynes • MK1 1LG +44 (0) 1908367178 • Fax +44 (0) 1908366564 © 1998 Belkin Components. All Rights Reserved. All Trade Names Are Registered Trademarks Of Respective Manufacturers Listed. P72533 ®...
