Summary of Contents for i-milk mini

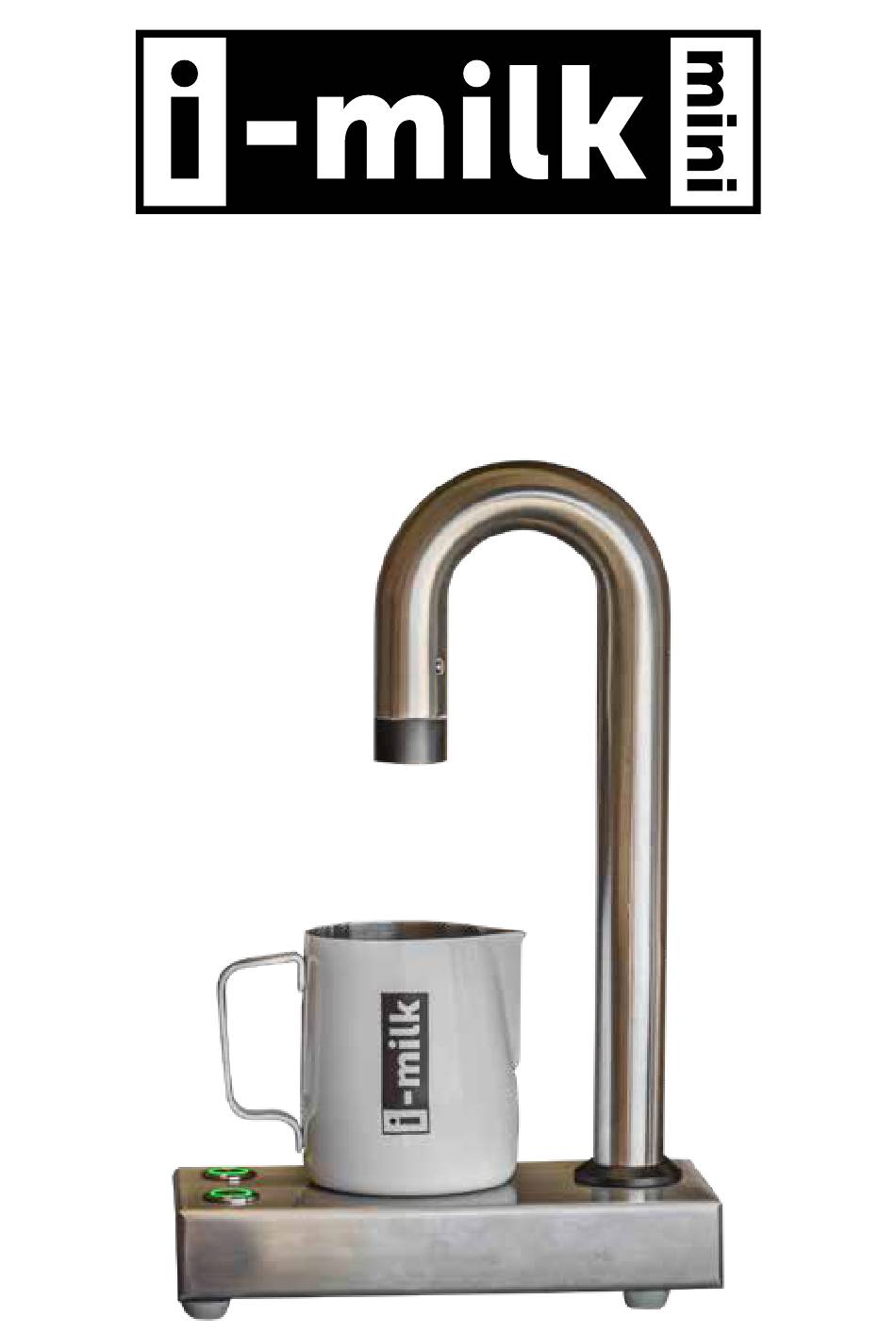

- Page 1 Operating Manual Please read thoroughly before use...
-
Page 2: Warranty
Consumable Items included in the parts box are not covered by your warranty. i-milk is manufactured in Sydney, Australia by i-milk Pty Ltd. For all operating and service enquiries please contact your distributor or i-milk. 24 hour hotline number: +61 3 9877 3995 Email: service@i-milk.com.au The machine is not for outdoor use. -
Page 3: Table Of Contents
1. Familiarisation ........................4-5 2. Essential Maintenance ......................6 3. Loading Milk Bladders ......................7 4. Operating Instructions ......................8 5. Cleaning Instructions ...................... 9-11 6. Trouble Shooting ........................12 7. Technical Adjustments ....................13-14 8. Maintenance Records ......................15 i-milk V1 Operating Manual July 2018... -
Page 4: Familiarisation
FULL OUT Pump Box Input Power Supply Each i-milk mini is supplied with a 110/220v converter with a plug suitable to use in the country of sale. These plugs are earthed and must not be substituted with non-earthed plugs. The converter produces 24VDC 5A that operates the i-milk mini. - Page 5 Familiarisation cont. Milk Storage Systems Milk is supplied for the i-milk system in many The Milkstak system consists of crates that different formats. In Australia the most common is stack on top of each other and hold the milk the 10 litre bladder available from milk processing bladders.
-
Page 6: Essential Maintenance
Use the Inox Food Grade lubricant supplied in a tube with your i-milk. Lubricate the “o” rings by applying the lubricant to the milk spigot or stem as you insert it in the fitting. i-milk V1 Operating Manual July 2018... -
Page 7: Loading Milk Bladders
This will rectify as milk is removed by the milk pumps. Lift the bladder to position and slide the bladder connector into the slot pushing it to the bottom of the slot as shown. i-milk V1 Operating Manual July 2018... -
Page 8: Operating Instructions
Operating Instructions To Pour Milk When i-milk mini is connected to power the To pour milk variety A push the left button buttons will illuminate. and release to stop the pour. To pour milk variety B push the right button WARNING and release to stop the pour. -
Page 9: Cleaning Instructions
Press the right button to pump all milk from that source. Keep pumping until water runs clear. Disconnect the cleaning bucket and pump lines until water flow stops. Connect each milk spigot into its cleaning sock. i-milk V1 Operating Manual July 2018... - Page 10 Push the right button to pump chemical into the other milk line. Leave Chemical soak for 5 minutes. Suggest use timer on phone as a prompt. i-milk V1 Operating Manual July 2018...
- Page 11 Press left button until all chemical is removed and clear water is being pumped (empty jug) Push right button until all chemical is removed and clear water is being pumped (empty jug) Wipe the dispenser to complete the daily clean. i-milk V1 Operating Manual July 2018...
-
Page 12: Trouble Shooting
Possibly caused by something blocking the filter housing on the jug the end of the pouring font. Remove the milk filter and clean it by following the instructions on page 10. i-milk V1 Operating Manual July 2018... -
Page 13: Technical Adjustments
Technical Adjustments To Clean the Milk Filter Housing i-milk has a milk filter located on the font outlet. This black fitting delivers a uniform, steady, non-turbulent stream of milk. If the filter mesh becomes blocked it may cause the milk to squirt or froth. - Page 14 This secures the tap and allows for it to be operated with one hand. i-milk V1 Operating Manual July 2018...
-
Page 15: Maintenance Records
Maintenance Records cont. DATE NAME CHECK MILK FILTER Please duplicate this page to extend your recording. i-milk V1 Operating Manual July 2018... - Page 16 www.i-milk.com.au...
