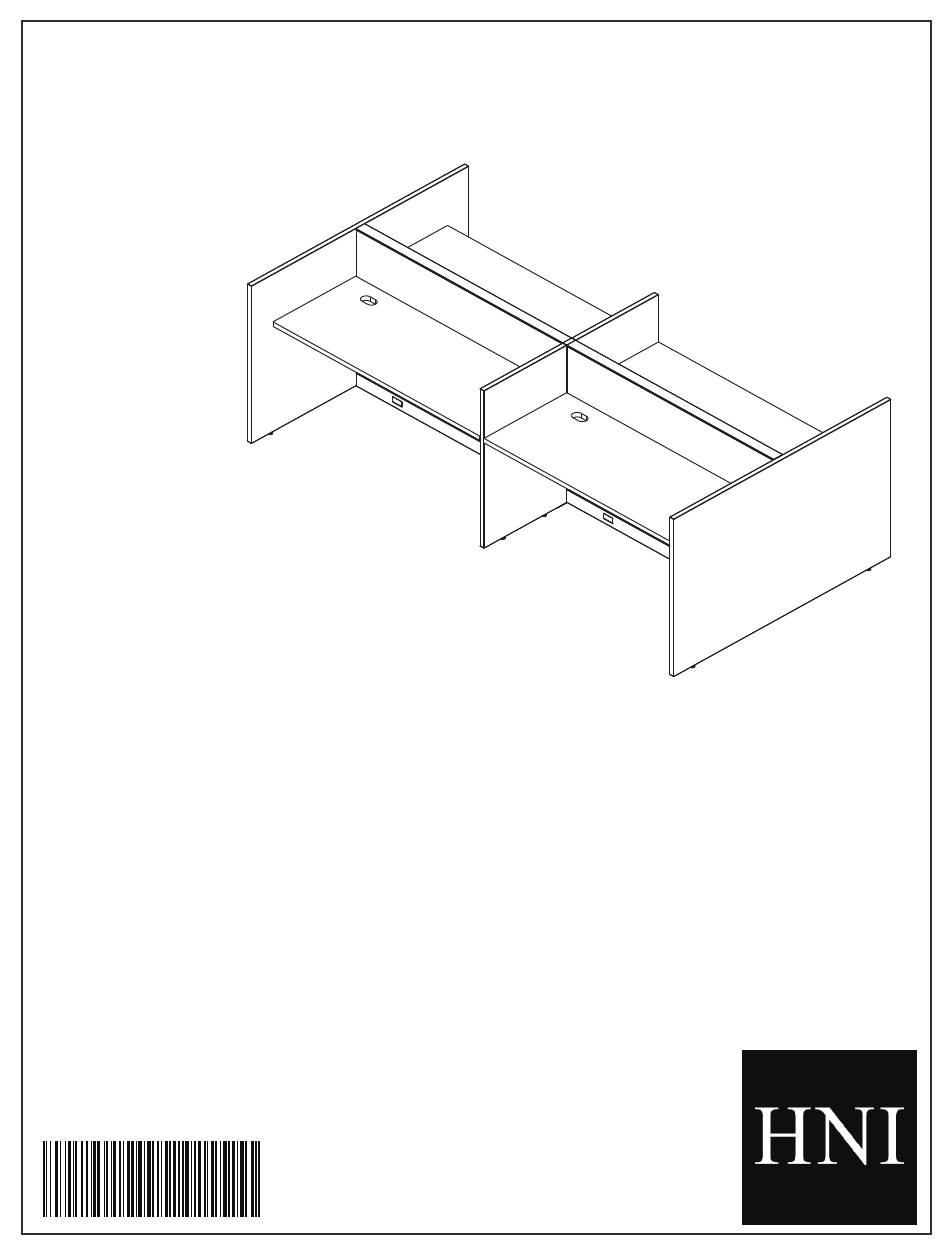

HNI Gallery Panels Installation Instructions Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Gallery Panels
Installation Instructions
Tools Needed:
Drill
1/4" Hex Drive
#2 Philips Bit
#3 Philips Bit
1/8" Drill Bit
1/4" Drill Bit
Carpenter's Level
Index
Abound Panel System. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Mid-Run Blocks & Trim (HRVB, HRVxxT, HRVTT) . . . . . . . . . . . . . . . . . . . . . . 5
Mid-Run Gallery Panel (HRVCM) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Worksurface Connections (HCTL242, HSTB2W1) . . . . . . . . . . . . . . . . . . . . . . 8
Gallery to Gallery Connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Glass Installation (HRVGxxxxG) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Storage Connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Laminate Storage (HRVGLSK) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Metal Storage (HRVGMSK) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Tackboard Installation (HRVTBxx) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Gallery Stiffener Installation (HRVG7578) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Hardware Chart . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
05/13/2021
3430455100

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Gallery Panels and is the answer not in the manual?

Questions and answers

Related Manuals for HNI Gallery Panels

Summary of Contents for HNI Gallery Panels

  • Page 1: Table Of Contents

    Gallery Panels Installation Instructions Tools Needed: Drill 1/4” Hex Drive #2 Philips Bit #3 Philips Bit 1/8” Drill Bit 1/4” Drill Bit Carpenter’s Level Index Abound Panel System..........2 End of Run Gallery Panel - T &...

  • Page 2: Abound Panel System

    Gallery Panels Installation Packet Abound Panel System Page 2 of 18 3430455100...

  • Page 3: End Of Run Gallery Panel - T & L Configuration (Hrvce)

    End of Run Gallery Panel - Single Panel T & L Configuration Note: Gallery panels can be installed before or after Abound panels are connected. HON recommends attaching a single spine panel to each gallery panel before connecting entire spine together. (See examples below...) Recommended process Step 1 - With gallery panel lying flat or on side edge, align mounting bracket with pilot holes on bottom of gallery panel.
  • Page 4 Gallery Panels Installation Packet End of Run Gallery Panel - Single Panel T & L Configuration (Continued) Step 3 - Before attaching gallery panel to spine, the Plastic Leveling Block must be removed and Spacer Brackets must be added to spine panel. All 4-hole pattern connector locations under the height of the gallery panel that do not get covered by the Mounting Bracket require a Spacer Bracket.

  • Page 5: Mid-Run Blocks & Trim (Hrvb, Hrvxxt, Hrvtt)

    Gallery Panels Installation Packet Create Mid-Run Blocks & Trim Step 1 - Align connector blocks with holes of panel frame. Attach each block to frame with (1) #10 x 3/4” Hex head screw. For best fit, alternate left/right screw location with each block.

  • Page 6: Mid-Run Gallery Panel (Hrvcm)

    Gallery Panels Installation Packet Mid-Run Gallery Panel Step 1 - With gallery panel on edge, align bottom connector bracket with end pilot holes. Attach to bottom edge with (2) #10 x 3/4” Flathead wood screws. Step 2 - Finish attaching connector bracket to inside edge of gallery panel with (6) #10 x 3/4” Flathead wood screws. Keep bracket centered for proper alignment.
  • Page 7 Gallery Panels Installation Packet Create Mid-Run Gallery Panel (Continued) Step 4 - Mount gallery panel into slotted standard over mid-run blocks and trim. Bottom finger mounts into second lowest possible position. Step 5 - Screw top bracket to frame using (4) #8 x 1/2” Wafer head self-drilling screws.

  • Page 8: Worksurface Connections (Hctl242, Hstb2W1)

    (G) x2 L-Tower Bracket Method Note: Use of level is required when connecting worksurfaces with L-Tower bracket. Spine and gallery panels must be level before worksurfaces are installed. All L-Tower bracket applications require additional panel-mounted support to set worksurface height.

  • Page 9: Gallery To Gallery Connections

    Gallery to Gallery Connections - L & T Return Panels Overview: Gallery Panels may connect to one another with the use of “L” or “T” RETURN panels. Gallery Return panels OVERLAP the edge of a PARENT panel, which may be any standard Gallery Panel or another Return panel.
  • Page 10 Gallery Panels Installation Packet Gallery to Gallery Connections - L & T Return Panels (Continued) Step 1 - Add pilot holes to edge of Parent panel using template HRVGTGG. Place template around edge, pressing upwards against bottom surface to ensure correct vertical alignment of Panels. Using 1/8” drill bit, add pilot holes approximately 1”...
  • Page 11 Gallery Panels Installation Packet Create Gallery to Gallery Connections - L & T Return Panels (Continued) Step 3 - Install shoulder screw into top pilot hole. Screw may need to be loosened or tightened for proper return panel fit-up. Step 4 - Install Connector Bracket to bottom four pilot holes using (4) #10 x 2 1/4”...
  • Page 12 Gallery Panels Installation Packet Gallery to Gallery Connections - L & T Return Panels (Continued) Step 5 - Mount Keyhole Bracket of Return Panel into place over the shoulder screw by pressing in and down. The shoulder screw may be loosened or tightened as needed to ensure proper fit-up.

  • Page 13: Glass Installation (Hrvgxxxxg)

    Gallery Panels Installation Packet Create Glass Installation Step 1 - Fold flat gasket at relief channels and insert into the slot of the gallery panel with gasket ribs facing outward. Verify that neither end of the gasket is sitting proud of the edge of the gallery panel.
  • Page 14 Gallery Panels Installation Packet Laminate Storage Connection (Open Back Units) Step 1 - Remove drawers or open the unit if necessary. Attach the L bracket to the inside wall of the storage unit approximately 2” from the top of the unit using (2) #8 x 1/2” Hex head screws per bracket. Repeat this step on the opposite wall.

  • Page 15: Metal Storage (Hrvgmsk)

    Gallery Panels Installation Packet Create Metal Storage Connection Step 1 - Position storage unit in appropriate position against the gallery panel and level as needed. Step 2 - Open the unit and remove drawers as needed to access the back panel. Drill a minimum of four holes into the wall that will sit flush with the gallery panel.

  • Page 16: Tackboard Installation (Hrvtbxx)

    Gallery Panels Installation Packet Tackboard Installation Step 1 - Position the fabric pan in the correct position and verify that it is square to the gallery panel. Attach the pan using (6) #5 - 5/8” flat head screws. Step 2 - Peel off the backer from all 6 pieces of dual lock to expose the adhesive and set the tackable fabric into the steel pan.

  • Page 17: Gallery Stiffener Installation (Hrvg7578)

    Gallery Panels Installation Packet Create Gallery Stiffener Installation Note: Gallery panel stiffener suggested to be installed after all worksurfaces and supports are installed. This ensures there will be no interference issues. Step 1 - Place Gallery Stiffener a minimum of 18”(457mm) from floor to bottom of stiffener.

  • Page 18: Hardware Chart

    Gallery Panels Installation Packet Hardware Chart #10-12 x 1 1/2” #10 x 2 1/4” Hex Head Flathead 0500003400 0500240200 #8 x 1” #10 x 3/4” Shoulder Hex Head Flat Head 0500055000 0500249500 #10 x 1” #8 x 1/2” Flathead Hex Head...
