Summary of Contents for InWin LUNA AL120
- Page 1 User Manual...
- Page 2 Product Video Information Luna Series Product Video Luna Series Installation Video...

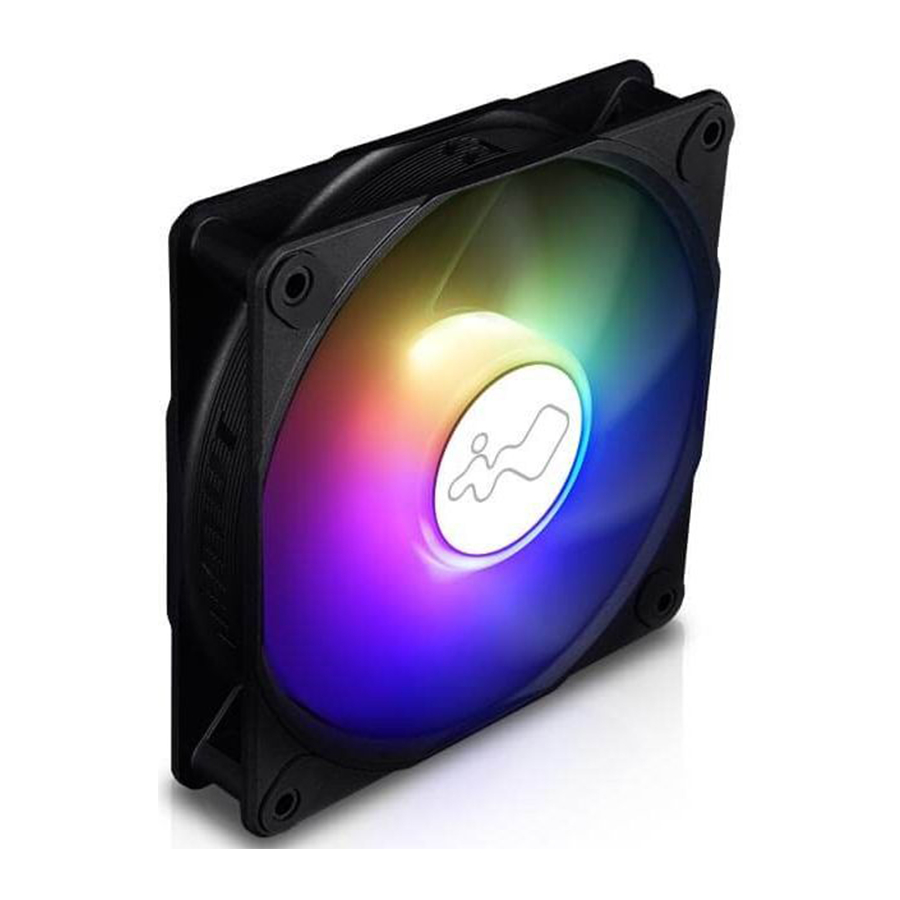

- Page 3 Shoot for the moon InWin’s Luna AL120 will keep your PC cool with high airflow up to 82.96 CFM. Its highly optimized P/Q curve shows that Luna AL120 is suitable for static pressure and airflow demanding operations. Luna AL120 is the result of InWin’s constant effort and commitment to achieve excellence.
-
Page 4: Package Contents
Package Contents Triple Pack 1. Luna AL120 Fans x 3 2. Screws x 12 3. ARGB One-Click Controller x 1 Single Pack 1. Luna AL120 Fan x 1 2. Screws x 4... -
Page 5: Cable Information
Cable Information Addressable RGB Fan Cable, Addressable RGB Y-Cable Addressable RGB Y-Cable Addressable RGB Fan Cable ARGB One-Click Controller ver. 1.1 Note: Only in Triple Pack... -
Page 6: Installation
Installation Please make sure the power is off. Install the fans in your PC case and mount them in the designated areas. The fan cable, Addressable RGB Y-Cable and their counterparts are attached to each fan. Please connect as followed: Connect the fan’s Addressable RGB Y-Cable to a motherboard’s 3-pin addressable RGB header. - Page 7 Flow-Red LED-White Flow-Green Light at the endof the Flow-Blue Tunnel * InWin reserves the right to change the lighting modes. * For more installation instructions, please scan the QR Code below or watch the video in the website link: https://youtu.be/_S_LLcqe0KI...
-
Page 8: Troubleshooting
3. Please do not put anything in the impeller. 4. Please do not modify the wires or the connectors provided by InWin. 5. Please do not touch the fan blades when the fan is in operation. 6. Please only use your fan in a computer case. -
Page 9: Specifications
Specifications 120 mm 25 mm Model Luna AL120 Quantity Included Single Pack Triple Pack Model Number IW-FN-AL120-1PK IW-FN-AL120-3PK Colors Black Fan Size 120 x 120 x 25 mm Materials PC, PBT Rated Voltage DC 12V Rated Power 3.96W Rated Current 0.33A... - Page 10 Copyright © 2021 In Win Development Inc. All Rights Reserved.
