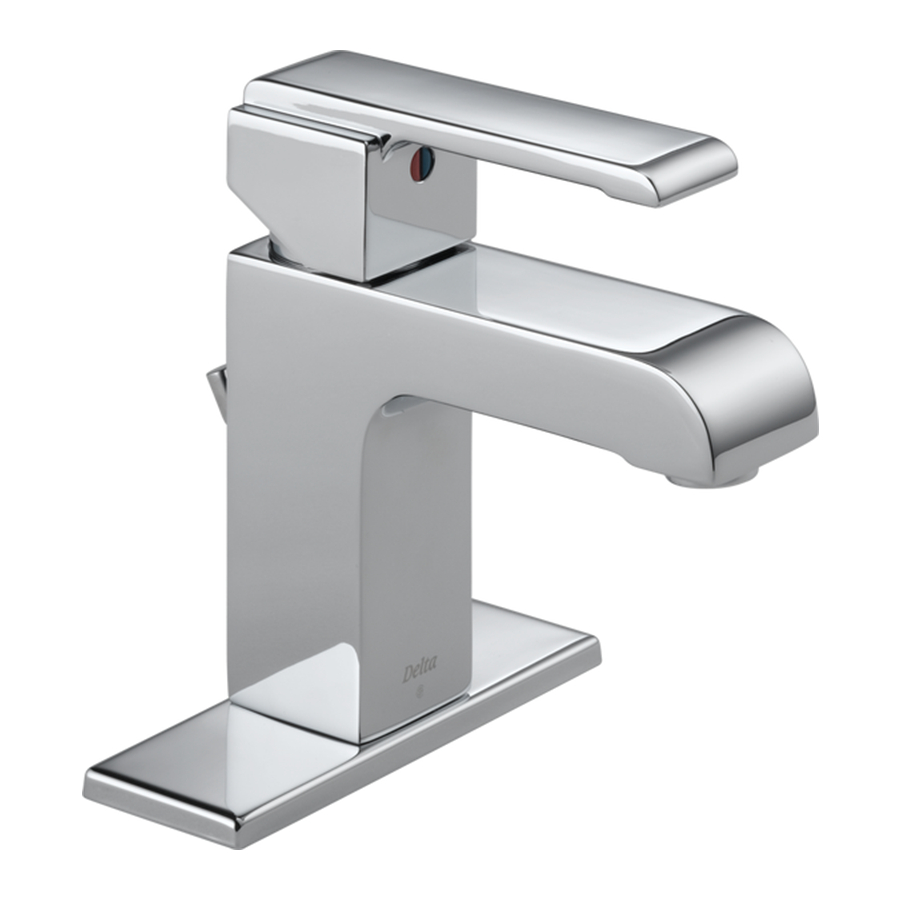

Delta Arzo 586LF Quick Start Manual

Single handle lavatory faucet
Hide thumbs
1
2
3
4
5
6

Advertisement

Quick Links

Download this manual
ASME A112.18.1 / CSA B125.1
ASME A112.18.2 / CSA B125.2
ICC/ANSI A117.1
Models/Modelos/Modèles
586LF
Series/Series/Seria
®
Arzo
You may need/Usted puede necesitar/Articles dont vous pouvez avoir besoin:
For easy installation of your Delta
faucet you will need:
To READ ALL the instructions completely before
beginning.
To READ ALL warnings, care and maintenance
information.
To purchase the correct water supply hook-up.
Para instalación fácil de su llave Delta
usted necesitará:
LEER TODAS las instrucciones completamente
antes de empezar.
LEER TODAS los avisos, cuidados, e información
información de mantenimiento.
suministro de agua.
Pour installer votre robinet Delta
facilement, vous devez:
LIRE TOUTES les instructions avant de débuter;
LIRE TOUTES les avertissements ainsi que toutes
les instructions de nettoyage et d'entretien;
nécessaire de raccordement.
SINGLE HANDLE
LAVATORY FAUCET
GRIFERIAS MONOCONTROL
PARA LAVABO
MITIGEUR MONOCOMMANDE
POUR LAVABO
1
?
7/18/12 Rev. A

Advertisement

loading

Related Manuals for Delta Arzo 586LF

Summary of Contents for Delta Arzo 586LF

  • Page 1 To READ ALL warnings, care and maintenance information. To purchase the correct water supply hook-up. Para instalación fácil de su llave Delta usted necesitará: LEER TODAS las instrucciones completamente antes de empezar. LEER TODAS los avisos, cuidados, e información información de mantenimiento.

  • Page 2: Faucet Installation

    Faucet Installation Position faucet (1) with gasket (3) or three hole escutcheon (2) and gasket (3) on sink. Option: If surface of sink is uneven, use silicone under the baseplate or gasket. Place mounting hardware (4) over mounting studs (5) under sink. Secure with mounting nuts (6). Tighten mounting nuts securely.
  • Page 3 Metal Pop-up Apply silicone to underside of flange (1). Insert body Remove pivot nut (1). Install horizontal rod (2) and Remove stopper (1) and flange (2). (2) into sink. Screw flange (1) into body (2). stopper (3) as removable (4) or non-removable (5). Screw nut (1) all the way down.
  • Page 4 CONNECT TO WATER SUPPLIES (HOOK-UPS NOT PROVIDED). Remove aerator (1) and turn faucet handle (2) to the full on mixed position. Turn on hot and cold water supplies (3) and flush water lines for one minute. Important: This flushes away any debris that could cause damage to internal parts. Check all connections at arrows for leaks.
  • Page 5 ▲ Specify Finish ® Arzo Series/Series/Seria Especifíque el Acabado RP47776▲ Précisez le Fini Hande with button & set screw Manija con botón y tornillo de presión Poignée avec capuchon et vis de calage RP46391 Button & set screw Botón y tornillo de presión Capuchon et vis de calage RP47777▲...

  • Page 6: Cleaning And Care

    Any damage to this faucet Delta Faucet Company Masco Canada as a result of misuse, abuse or neglect, or any use of other than genuine Delta® replacement Product Service Technical Service Centre parts WILL VOID THE WARRANTY.
