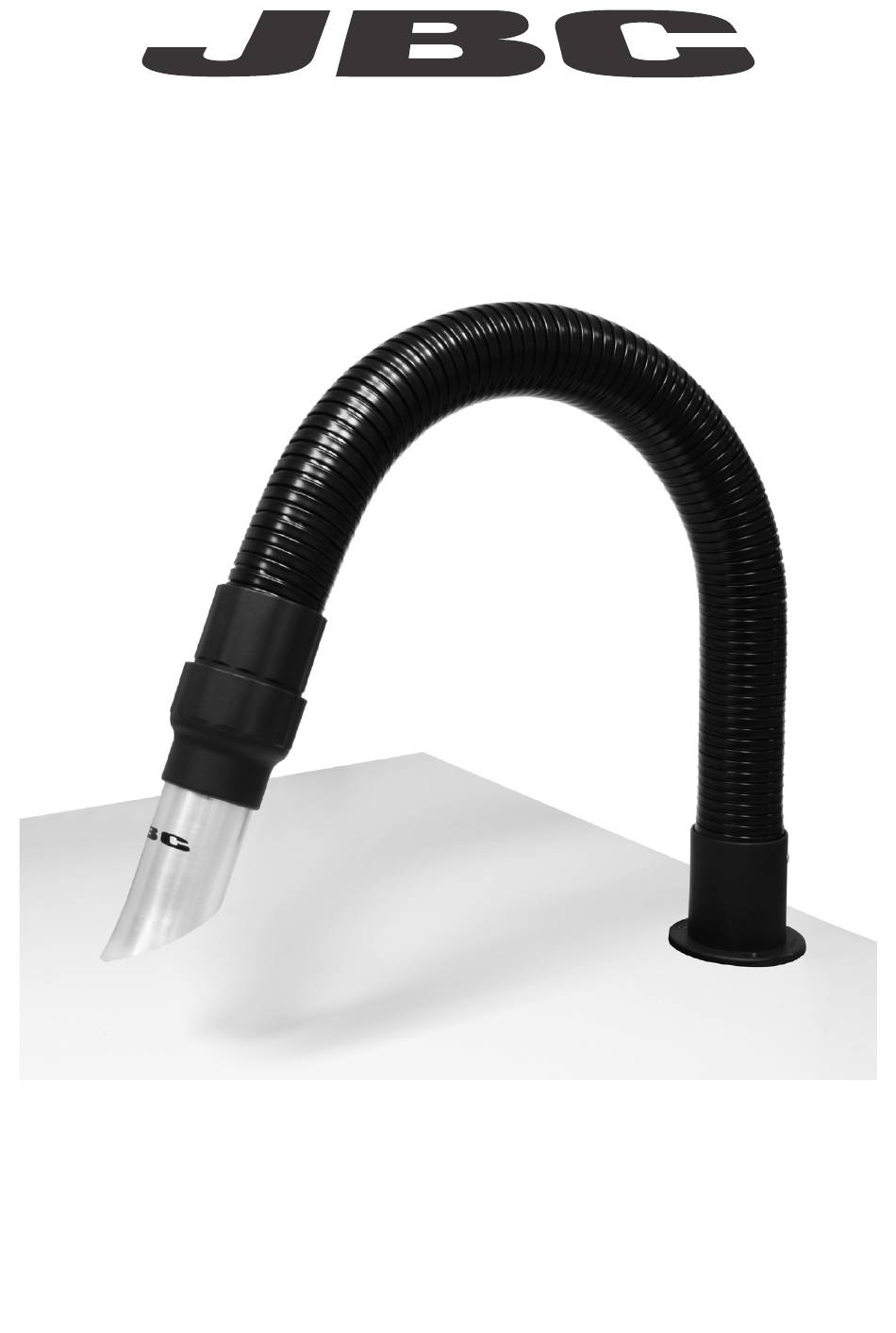

- Page 1 INSTRUCTION MANUAL Flexible Arm for FAE Fume Extractor Ref. FAE020...
- Page 2 Packing List The following items are included: Flexible Arm for Screws ............3 units FAE Fume Extractor ........ 1 unit Ref. 0019142 Ref. FAE020 Template Flexible Arm Ø50 Ref. FAE020 Manual ............1 unit Annex ............. 1 unit Ref. 0019181...
- Page 3 w w w.jbctools.com Assembly Lenght: 1 m (39.37 in) Fix the clamp on your workbench with the supplied screws Connect the Flexible Hose to Flexible Arm Flexible Hose Ø50 Ref. FAE010 Lenght: 1,5 m (59.06 in) www.jbctools.com Fume Extractor Ref. FAE2-5A FAE2 PEDAL 1 PEDAL 2...
- Page 4 Arm assembly - When the flexible arm loses firmness, it must be re-compressed. - For a greater compression, turn it slightly clockwise. - Once the arm is compressed, adapt its position again. Nozzles You can replace the supplied nozzle and choose the one that best suits your needs. 70 cm / 27.6 in max.
- Page 5 w w w.jbctools.com Nozzle Replacement Turn the nozzle and pull out to A bayonet fitting system The nozzles are designed to remove it. allows a proper connection work with the arm suspended between the flexible arm and and also supported on the the nozzle.
- Page 6 Notes...
- Page 7 w w w.jbctools.com Notes...
- Page 8 41.34 x 6.7 x 4.72 / 5.28 lb Complies with CE standards. ESD protected. Warranty JBC’s 2 year warranty covers this equipment against all manufacturing defects, including the replacement of defective parts and labour. Warranty does not cover product wear or misuse.
