Summary of Contents for INIM Electronics Air2-FD100

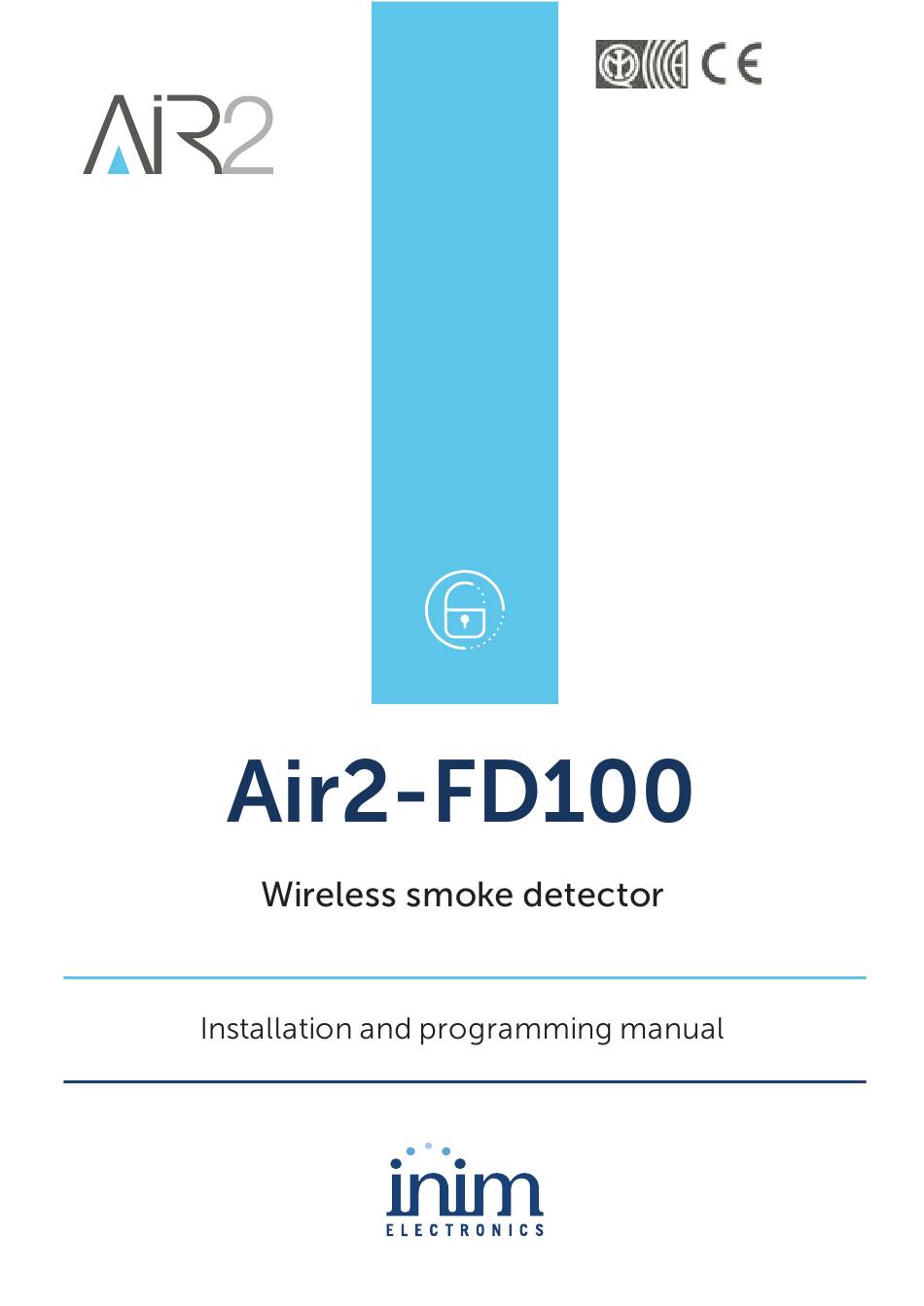

- Page 1 E E N 50131-1 EN 50131-5-3 EN 50130-4 EN 50130-5 INCERT CEB T031...
-
Page 2: Table Of Contents
Table of contents 1. Air2 system description 2. Air2-FD100 description 2.1 Description of parts 2.2 Air2-FD100 technical specifications 2.3 LED signallings from Air2-FD100 3. Installation of Air2-FD100 3.1 Enrolling a wireless device 3.2 Battery replacement 4. Programming wireless terminal 4.1 Wireless terminal parameters 4.2 Real-time... -
Page 3: Air2 System Description
RF output power Two-way Communication type GFSK Modulation from 12 to 250 minutes Device supervision In order to comply with the EN 50131-1 standards the alarm system supervision time must be below 120 minutes. Air2-FD100 | © 2020 Inim Electronics S.r.l. -
Page 4: Air2-Fd100 Description
2. Air2-FD100 description 2. Air2-FD100 description Air2-FD100 is capable of sensing the presence of smoke particles and thus detecting a fire in its early stages. Air2-FD100 is an optical smoke detector equipped with a sampling chamber based on light scattering mass (Tyndall effect);... -
Page 5: Description Of Parts
Tamper microswitch ENROLL microswitch Base Mounting screw hole 2.2 Air2-FD100 technical specifications Battery Lithium CR17450 3V type 3 years estimated life Less than 2.4V “Low battery” fault voltage Current draw 70µA during standby Air2-FD100 | © 2020 Inim Electronics S.r.l. -
Page 6: Led Signallings From Air2-Fd100
114mm Diameter (base included) 182 g Weight (base and battery included) 2.3 LED signallings from Air2-FD100 The tricolour LED (360° visibility) indicates the detector status. Green - one flash every 15 seconds: detector operating properly. Green - one flash every 40 seconds: low battery. -
Page 7: Installation Of Air2-Fd100
2. Select the device to be enrolled in accordance with its type: an input terminal, for a detector (motion detector, magnetic contact, etc.) an output terminal, for an output device connected to a terminal of a magnetic contact Air2- MC300 Air2-FD100 | © 2020 Inim Electronics S.r.l. -
Page 8: Battery Replacement
3. Installation of Air2-FD100 a keypad a sounder/flasher a key, for a remote control device, selecting as the associated reader the one simulated by the transceiver 3. Set the device as “Wireless”. 4. Start the learning phase from the control panel. -
Page 9: Programming Wireless Terminal
Air2-BS200. tion Battery Percentage of the device battery charge. charge level Function to monitor the variation of the signal transmitted by the device and the background noise detected through time. RF analysis Air2-FD100 | © 2020 Inim Electronics S.r.l. -
Page 10: General Information
5.4 Simplified EU Declaration of Conformity Hereby, Inim Electronics S.r.l. declares that the radio equipment type Air2-FD100 is in compliance with Direc- tive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: www.inim.biz. -
Page 11: Documents For The Users
5.5 Documents for the users 5.5 Documents for the users Declarations of Performance, Declarations of Conformity and Certificates concerning to Inim Electronics S.r.l. products may be downloaded free of charge from the web address www.inim.biz, getting access to Extended Access and then selecting "Certifications" or requested to the e-mail address info@inim.biz or requested by ordinary mail to the address shown in this document. - Page 12 Via dei Lavoratori 10, Loc. Centobuchi 63076 Monteprandone (AP) ITALY Tel. +39 0735 705007 _ Fax +39 0735 704912 info@inim.biz _ www.inim.biz DCMIINE0A2FD1008E-100-20200525-DRAFT...
