Franklin Electric SubDrive Utility Installation Manual

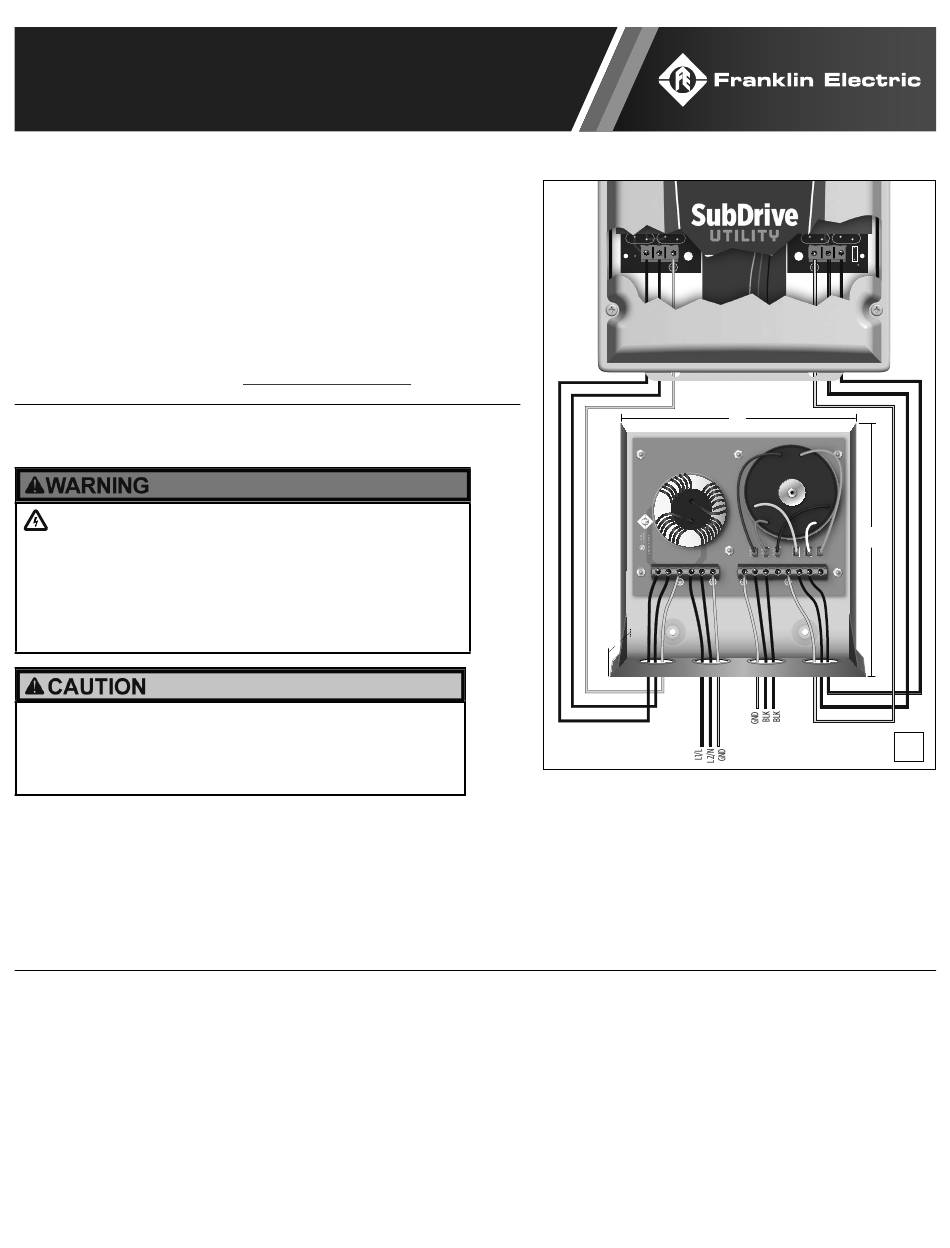

INSTALLATION GUIDE
SubDrive Utility 2 Wire - System Filter
This product is intended to reduce electromagnetic interference (EMI).
Its use should be considered only if interference remains after best
wiring and grounding practices have been implemented at the location.
Because of the variety of equipment locations, power wiring methods,
and grounding practices, it is impossible to ensure a specific amount
of interference suppression. Although Franklin Electric has performed
laboratory tests that show significant EMI reduction with this filter, we
cannot predict the performance of this product in the field.
Refer to the SubDrive Utility Installation Manual for detailed setup
and safety information, refer to www.franklinwater.com.
Installation
Remove System Power
Risk of severe injury or death by electrical
shock.
• Disconnect and lock out all power before installing or servicing
equipment.
• Capacitors inside the drive and the filter can still hold a lethal
voltage even after power has been removed — ALLOW FIVE
MINUTES FOR DANGEROUS INTERNAL VOLTAGES TO
DISCHARGE.
Risk of bodily injury or damage to pump or other
equipment.
• This product should only be used with the Franklin Electric
SubDrive Utility (UT2W) drive models 5870202003 and
5870202003XD.
Mounting
The SubDrive Utility System Filter is supplied in a NEMA 3R enclosure. Appropriate cables and cable fittings must be used in
the installation to maintain the NEMA 3R rating.
1. Remove the thumbscrew from the bottom front cover of the System Filter.
2. Remove the cover from the System Filter.
3. Mount the System Filter to a flat surface using three screws (not included). Insert one screw through the top flange hole,
and then two screws into two internal mounting holes.
Electrical Connections
Remove System Power
1. Disconnect electrical power to the controller at the main breaker. If previously connected to the supply mains, wait five (5)
minutes for dangerous internal voltages within the controller to discharge.
2. Remove the cover from the SubDrive Utility controller following instructions in the SubDrive Utility manual.
Install Wiring
(
Tighten all terminals to 5 in-lbs (0.55 Nm)
3. Route supply mains power and ground wires to the System Filter Power In terminals L1 and L2 (230 V) or L and N (115
V) with the green ground wire connected to the marked ground terminal.
4. Route power and ground wires from the System Filter To Drive Input terminals L1 and L2 (230 V) or L and N (115 V)
to the SubDrive Utility controller drive input terminals L1 and L2 (230 V) or L and N (115 V) respectively, with the green
ground wire connected to the marked ground terminals.
)
P2
1 8 1
ON
J5 1 2 3 4 5 6 7 8 1 2 3 4 5 6 7 8
R14
SW1 SW2
R20 R23
D4
R16
R12
RS485
D7 U5
C25
INTERBOARD R38
R109
R22
R70 TP3 C21
C22
R15 C19
C20
R13
TP4
U3
J3
EGND TP2
TP1
R148
C102 C66
R251
C4
P1
D34
C2 C1
R135
U1 MH1
D10 Q6
R134
R63
R137 D35 R7 R8
Q5
R64
D5
D1
J11 R18 R17
TVS1
USB
T2 L1
D2
RV2
RV1
PS XDCR
J6 J1
1 1 1
PRESSURE 24 S
SENSOR TRANSDUCER
TH1
P1
J1
230V L1 L2 MH1
115V L N
L1/L
L2/N
GND
5-3/4"
146.05 mm
T5
J4 J3 J1
230V
L1 L2 L1 L2 RED
115V
L N L N BLK
TO DRIVE INPUT POWER IN TO MOTOR
2-5/8"
66.68 mm
GND
L2/N
L1/L
To pump/motor
From AC power,
per SubDrive rating
P4
8 1 8
ON
1 2 3 4 5 6 7 8
SW3
J9
C22
Y2
U4
UNDERLOAD
R36
C10
R27
MH2 PRESSURE
R9
SET POINT
C5
226115103 REV 2
CONTROL PCB
R2
P3
D3
R1
U2
FAN
R3
J13
P
FAN
RV9
TH1
J4
C55
MH4
BLK BLK
P4
BLK
BLK
GND
8-1/2"
215.90 mm
T2 T1 T6 T4 T3
J2
YEL BLK RED YEL BLK 3 WIRE
BLK X BLK BLK X 2 WIRE
FROM DRIVE OUTPUT
BLK
BLK
GND
Weight
6 lbs
2.72 kg
