Design and Specifications subject to change without notice.
2004 SONY MOBILE
PRODUCT GUIDE

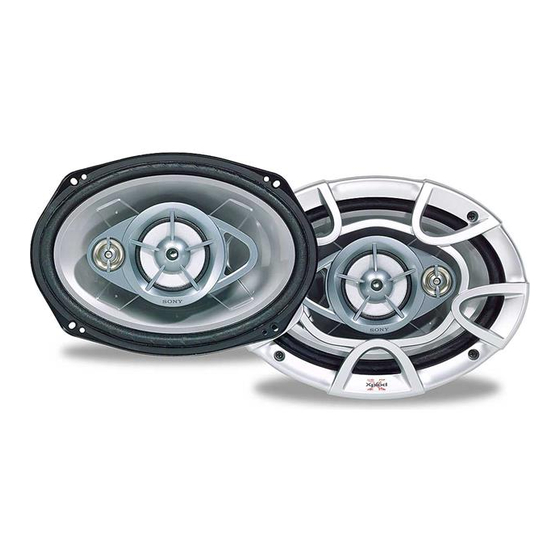

XS-V6935X
3-Way Speaker
Specifications
Speaker
Peak Power
Rated Power
Impedance
Sensitivity
Frequency response
Mass
Dimensions
194 mm (7 3/4")
Design and Specifications subject to change without notice.
Coaxial 3-way
Woofer 16 x 24 cm (6 3/8 x 9 1/2 in.) cone type
Midrange 6.6 cm (2 5/8 in.) cone type
Tweeter 2.5 cm (1 in.) balance dome type
350 watts
100 watts
4 ohms
92 dB/W/m
27 - 30,000 Hz
Approx. 1,330 g (2 lb 15 oz) per speaker
32 mm (1 5/16")
• 6 x 9" HOP woofer cone
• 2-9/16" Nano-fine mid
• 1" balanced dome tweeter
• 350W peak power (100W RMS)
• Flexible mounting options
4.5 x 5.5 mm (3/16 x 7/32")
117 mm (4 5/8")
148 mm (5 7/8")
168 mm (6 5/8")
20.6 mm (13/16")
77.3 mm
(3 1/8")
