BRK electronic 5919/5919 TH Technical Specifications

BRK electronic 5919/5919 TH Technical Specifications

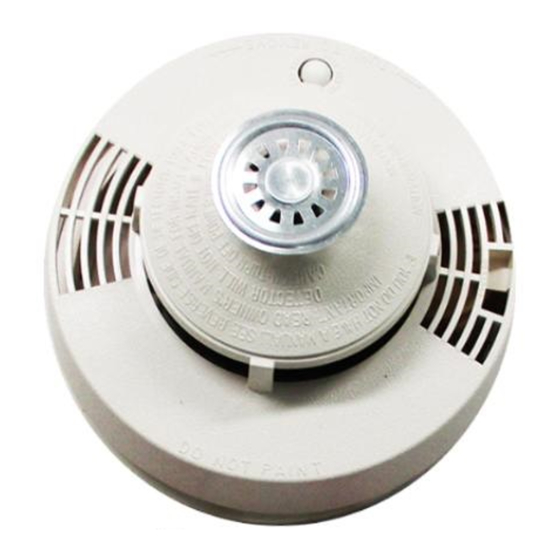

Photoelectronic smoke alarm

Advertisement

Quick Links

PHOTOELECTRONIC
SMOKE
ALARM
120V AC 60HZ
•Recommended for
areas prone to "false"
alarms; near kitchens,
bathrooms, heating
ducts; or in any smaller
apartment or hotel
rooms.
Features
Photoelectronic sensing chamber
Fully insect screened sensing chamber
Interconnectable up to 18 multiple station BRK alarms
"Quick-Connect" wiring harness
Oversized mounting bracket
Red LED/Light indicates unit is receiving AC power
5919TH also has a 135˚ fixed heat detector
(See wiring diagram on reverse)
85dB piezo alarm horn
Manual test button
Listed to UL 217
®
Cat. No.
5919
Cat. No.
Benefits
Generally more effective at detecting slow smoldering fires
Prevents insects from entering sensing chamber, reducing unwanted alarms
Unit detects smoke, identifies itself and sends alarm signal to other units
connected in series
Allows faster and easier connection to AC power
Mounts to any standard electrical junction box up to 4" octagonal without
screw removal, Covers drywall cut-outs better
During an alarm, the red light on the unit that initiates the alarms goes out
while the others stay on
Often spec'ed in Military housing and hospitals
Provides audible notification of fire
Tests all detector functions
5919/5919TH
5919TH
Cat. No.

Advertisement

loading
Need help?

Need help?

Do you have a question about the 5919/5919 TH and is the answer not in the manual?

Questions and answers

Summary of Contents for BRK electronic 5919/5919 TH

  • Page 1 ® PHOTOELECTRONIC SMOKE ALARM 120V AC 60HZ •Recommended for areas prone to “false” alarms; near kitchens, bathrooms, heating ducts; or in any smaller apartment or hotel rooms. Features Photoelectronic sensing chamber Fully insect screened sensing chamber Interconnectable up to 18 multiple station BRK alarms “Quick-Connect”...
  • Page 2: Technical Specifications

    125V AC, a! at 30V DC. SPECIFICATION The smoke alarm shall be powered by a 120V AC, 650Hz. power source and shall be listed at .025A in standby condition. The alarm shall have a solid state photoelectronic sensor that operated on the scattered light principle.
