Belkin OmniView F1DV104 Quick Installation Manual

Introduction
This guide will lead you through the basic steps needed to install the
ExpandView Series Video Splitter (the Splitter). If you need further
information during this installation, please refer to the Belkin User
Manual for this product.
You will need the following items for installation:
• OmniView ExpandView Series Video Splitter (included)
• One VGA Cable
• 9V DC, 1.5A Power Supply (included)
F1DV104

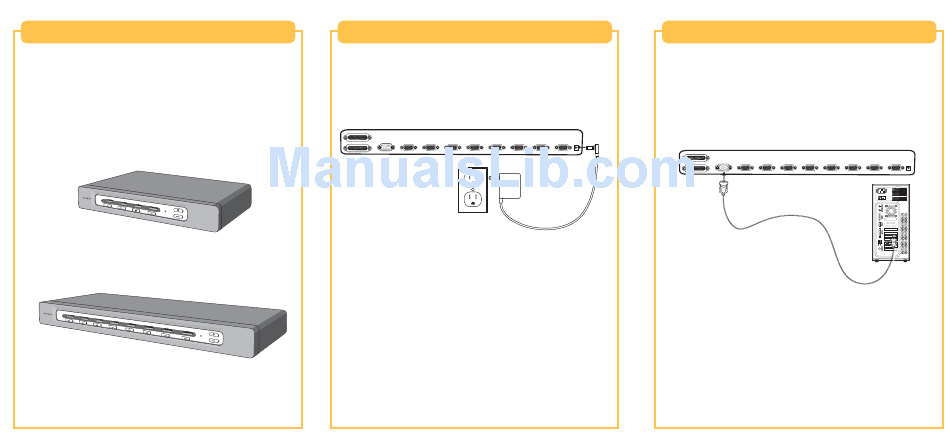

1. Connect the included 9V DC, 1.5A power supply to an available
power outlet.
2. Attach the barrel plug into the power jack of the Splitter.
VIDEO IN
VGA IN
VIDEO OUT
F1DV108
Powering On the Splitter
VGA 8 VGA 7 VGA 6 VGA 5 VGA 4 VGA 3 VGA 2 VGA 1
Powering On the Splitter
1. Make sure your computer is powered off.
2. Using the OmniView Video Extension Cable (F1D9003-XX),
connect the HDDB15 male-type connector to the video card on
your computer.
3. Connect the HDDB15 female-type connector to the input port on
your Splitter.
VIDEO IN
VGA IN
VIDEO OUT VGA 8 VGA 7 VGA 6 VGA 5 VGA 4
4. Boot up your computer.
VGA 3 VGA 2 VGA 1
