1ST MATE KIT - MERCURY
IMPORTANT: This document guides our dealers, boatbuilders, and company service personnel in the proper installation or
service of our products. If you have not been trained in the recommended servicing or installation procedures for these or
similar Mercury Marine products, have the work performed by an authorized Mercury Marine dealer technician. Improper
installation or servicing of the Mercury product could result in damage to the product or personal injury to those installing or
operating the product. Always refer to the appropriate Mercury Marine service manual for component removal and installation
instructions.
NOTE: After completing installation, place these instructions with the product for the owner's future use.

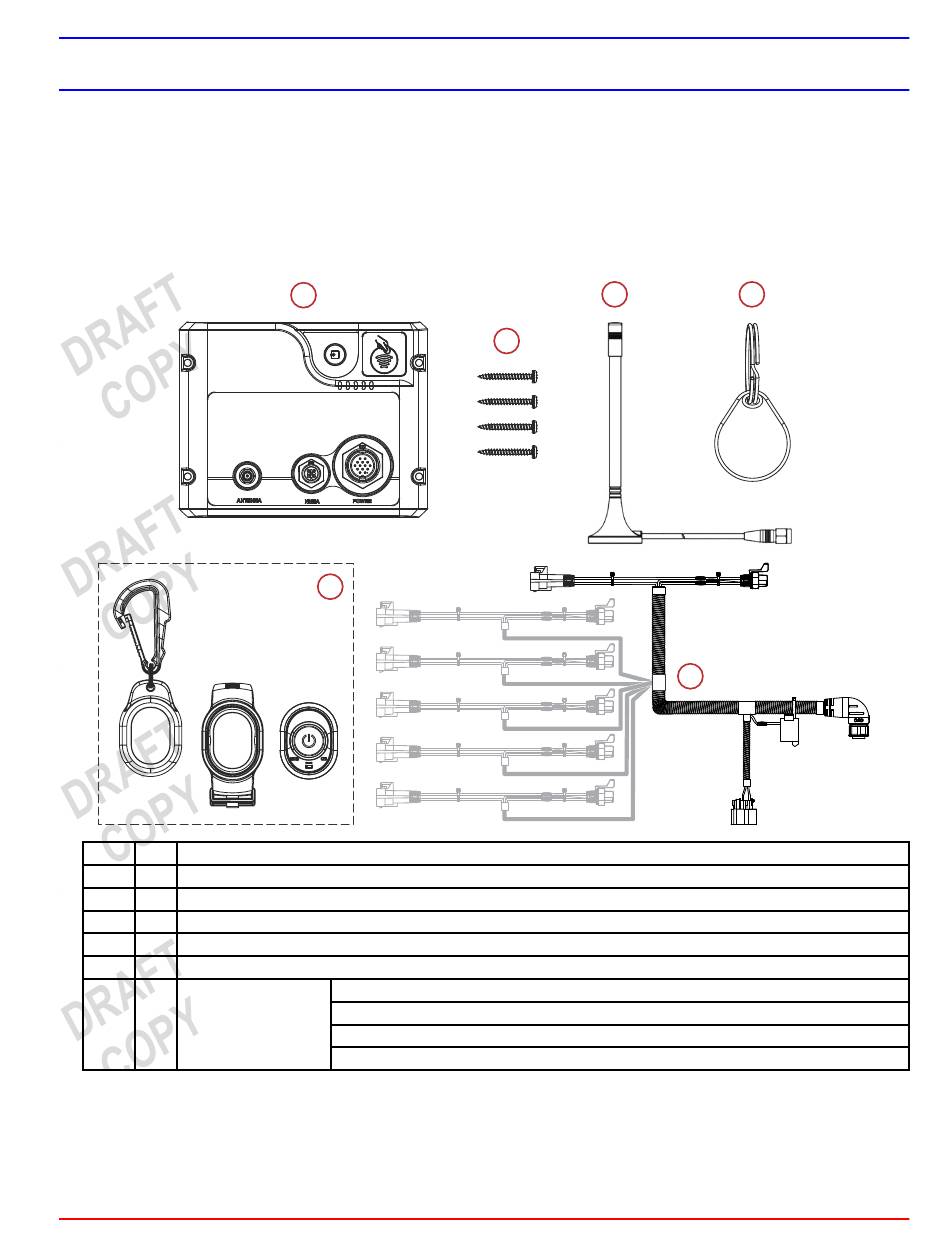

Components Contained in Kit
Ref.
Qty.
a
1
1st Mate hub
b
4
Screw
c
1
Hub antenna
d
1
NFC chip
e
1
1st Mate driver fob kit
f
1
1st Mate harness
90-8M0159024 eng DECEMBER 2019
a
e
c
b
Description
Single (1 key switch drop)
Dual (2 key switch drops)
Triple (3 key switch drops)
4/5/6 engine (6 key switch drops)
© 2019 Mercury Marine
d
f
69924
Page 1 / 8
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Mercury 1ST MATE KIT
Summary of Contents for Mercury 1ST MATE KIT
- Page 1 Mercury Marine products, have the work performed by an authorized Mercury Marine dealer technician. Improper installation or servicing of the Mercury product could result in damage to the product or personal injury to those installing or operating the product. Always refer to the appropriate Mercury Marine service manual for component removal and installation instructions.
- Page 2 1ST MATE KIT - MERCURY Hub Installation WARNING Before working around electrical system components, disconnect the battery cables from the battery to prevent injury or damage to the electrical system due to an accidental short circuit. Place the hub so that the antenna is at least 50.8 mm (2.00 in.) from other electronic or magnetic equipment including Chartplotters, VHF radios, GPS receivers, and antennas.
- Page 3 1ST MATE KIT - MERCURY Connect each trunk of the 14‑pin hub harness to the corresponding main station extension harness connector and its respective key switch harness connector (as equipped), i.e. single, dual, triple, quad, five, or six engine applications. The starboard key switch harness drop (labeled STBD) must be connected to the starboard engine key switch.
- Page 4 1ST MATE KIT - MERCURY Dual Engine Applications STBD 69908 Antenna Driver fob Mobile device Junction box Key switch harness Starboard engine key switch Key switch Hub harness NMEA 2000 Page 4 / 8 © 2019 Mercury Marine 90-8M0159024 eng DECEMBER 2019...
- Page 5 1ST MATE KIT - MERCURY Triple Engine Applications STBD 69909 Antenna Driver fob Mobile device Junction box Key switch harness Starboard engine key switch Key switch Hub harness NMEA 2000 90-8M0159024 eng DECEMBER 2019 © 2019 Mercury Marine Page 5 / 8...
- Page 6 1ST MATE KIT - MERCURY Four, Five, and Six Engine Applications STBD 69902 Antenna Driver fob Mobile device Junction box Key switch harness Starboard engine key switch Key switch Hub harness NMEA 2000 FOB Initial Pairing LEDs Theft deterrent system (TDS) active...
- Page 7 1ST MATE KIT - MERCURY LED Indicators Green Blue NMEA SmartCraft Bluetooth System Configuration Download the app from Google Play or the Apple App Store after point of sale transaction or during the vessel delivery and sea trial. Technical Specifications...
- Page 8 Products of Mercury Marine © MERCURY MARINE. All rights reserved. Reproduction in whole or in part without permission is prohibited. Alpha, Axius, Bravo One, Bravo Two, Bravo Three, Circle M with Waves Logo, GO BOLDLY, K-planes, Mariner,...
