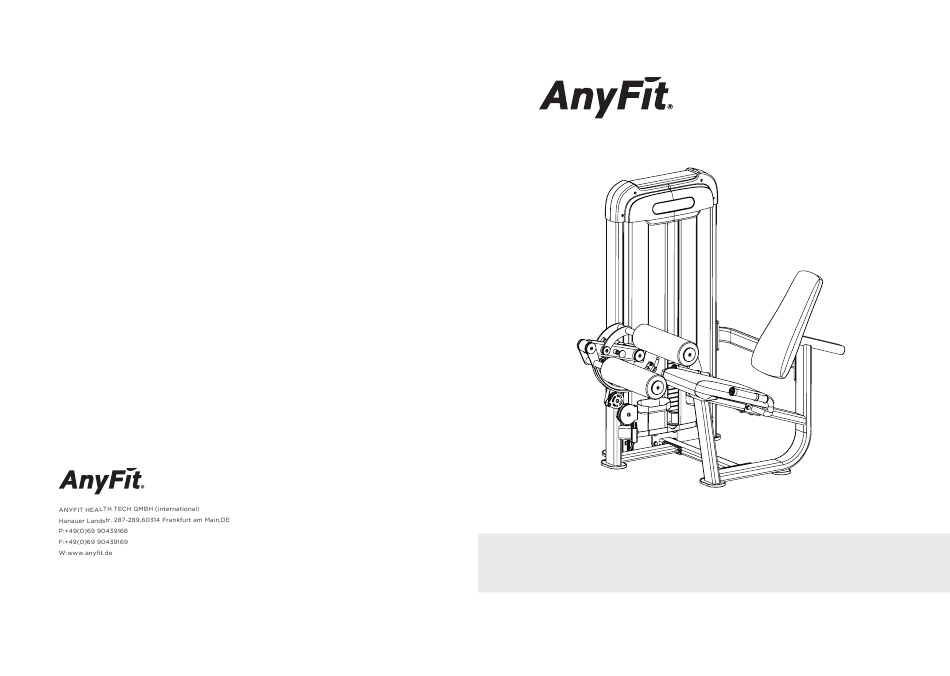

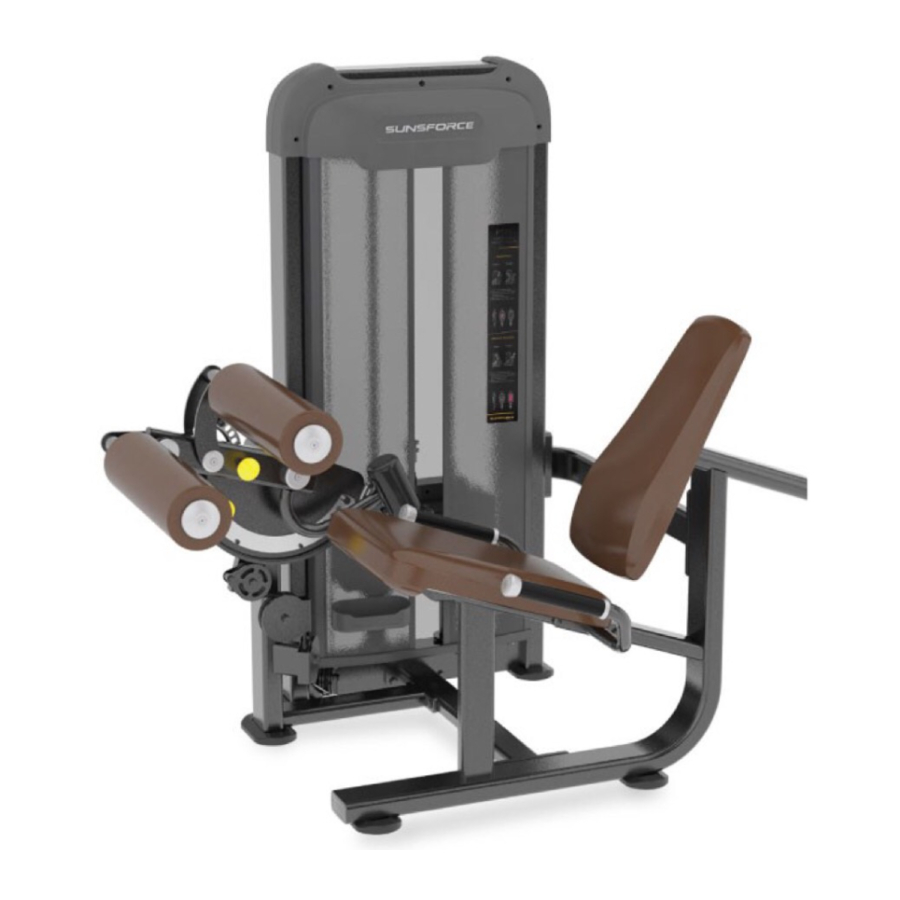

- Page 1 LEG EXTENSION / LEG CURL PS04 Copyright © 2018 Anyfit . All rights reserved . Before use, please read through the guide book and keep well.
- Page 2 LEG EXTENSION / LEG CURL PS04...
-
Page 3: Table Of Contents
TABLE OF CONTENTS Important Safety Instructions ------------------------------------------ 3 Instructions ---------------------------------------------------------------- 4 Parts List ------------------------------------------------------------------- 5 Exploded View ------------------------------------------------------------ 7 Measurement Guide ------------------------------------------------------ 9 CAUTION： Assembly Instructions --------------------------------------------------- 10 Read all precautions and instructions in this manual Assembly ------------------------------------------------------------------ 11 before using this equipment. Maintenance Schedule -------------------------------------------------- 17 General Maintenance Information ------------------------------------- 18 Weight Training Tips ---------------------------------------------------- 20... -
Page 4: Important Safety Instructions
Important Safety Instructions Instructions Before beginning assembly please take the time to read Before beginning any fitness program, you should obtain a complete physical examination from your physician. When using instructions thoroughly. Please use the various lists in this manual to make sure that all parts have been included in your exercise equipment, basic precautions should always be taken, carton. -
Page 5: Parts List
Parts List Note: some of these parts may come pre-installed. DESCRIPTION DESCRIPTION ITEM NO. ITEM NO. Weight Frame Assembly Back Pad Seat Pad Main Frame Assembly Rotating Plate Support Frame Side Cover (Right Front) Rotating Plate Assembly Side Cover (Left Front) Side Cover (Right Rear) Rotating Plate Arm Bracket Curl Foam Frame Assembly... -
Page 6: Exploded View
Exploded View 56 49 32 52 63 65 53 59 60 65 53 27 26... -
Page 7: Measurement Guide
Measurement Guide Assembly Instructions Assembly of the equipment takes professional installers about 2 hours. If this is the first time you have assembled this type of equipment, plan to spend more time. It is strongly recommended Cross Recessed Pan Head Tapping Screw to assembly the equipment by professional installers. -
Page 8: Assembly
Assembly Step 1 Step 2 1. Attach Rotating Shaft (#22), Rotating Plate Swing Frame Assembly (#9), Rotating Plate 1. Attach Weight Frame Assembly (#1), Rotating Plate Support Frame (#3), Central Connection Frame (#13), Bottom Connection Frame Assembly (#8) using: Assembly (#4), Rotating Plate Arm Bracket (#5), 3×Bearing Washer (#21), Pulley Protection Cover (#15), Aluminum Pulley φ89 (#24), Cable Cover (#39), Outer End Cap 12 ×... - Page 9 Step 3 Step 4 1. Attach 2×Guiding Rod (#19), 2×Guiding Rod Cover (#36), 1×Top Plate Assembly (#17), 1. Attach Storage Box (#72) to Front Cover (Left) (#10) and Front Cover (Right) (#11)using: Weight Plates (#76), (#77), 2×Buffer Pad of Weight Plates (#35), 2×Weight Support (#16), 2×Rubber Pad Φ60×Φ19.3×5 (#34) to Weight Frame Assembly (#1) using : 8 ×...
- Page 10 Step 5 1. Attach Back Pad (#40) to Back Pad Frame (#14) using: 4 × Button Head Cap Screw M10X30 (#61) 4 × Flat Washer Φ11XΦ20X2 (#52) 2. Attach Seat Pad (#41) to Main Frame Assembly (#2) using: 4 × Button Head Cap Screw M10X30 (#61) 4 ×...
-
Page 11: Maintenance Schedule
Maintenance Schedule COMMERCIAL HOME ROUTINE LATEST DATE ENTRY MAINTENANCE MAINTEMANCE Inspect: Links, Pull Pins, Snap Locks, Swivels, Weight Stack DAILY WEEKLY Pins Clean: Upholstery DAILY WEEKLY Inspect: Cables or Belts and DAILY WEEKLY their tension Inspect: Accessory Bars, and WEEKLY 3 MONTHS Handles Inspect: All Decals...
