Intelbras REP 8000 User Manual

RF Range amplifier
Congratulations, you have just purchased a product with Intelbras quality and security.
The 8000 System RF Range Amplifier was developed to amplify the coverage signal of the
system as a whole, where up to 4 amplifiers can be added to each alarm center, thus extending
the range and communication of the other devices with the alarm center.
1. Care and security
» Follow all instructions in the manual/guide for product installation and handling.
» Perform the installation in environments not susceptible to factors such as rain, fog and
splashes of water.
» Wireless communication technology, when exposed to environments with high power radia-
tion, may suffer interference and have its performance impaired. Example: locations near TV
towers, AM/FM radio stations, amateur radio stations, etc.
» Do not install the amplifier for air conditioning equipment or heaters.
» Clean only the external part of the device, using only a damp cloth (do not use chemical
solvents).
» Do not subject the device to excessive pressure or knocks/falls.
» Do not cover the device with adhesives, paper or inks.
» Do not expose directly to sunlight.
» Confirm that the installation site is stable and appropriate.
» Only perform configurations and installations by qualified personnel.
» Perform periodic tests on it to validate weather conditions, battery level and other factors so
that the site supervised by the system is always able to operate properly.
2. Especificações técnicas
Frequency of operation RF signal from 915 to 928 MHz
Modulation DSSS BPSK 40 kbps
Maximum trans. power 18 dBm
Transmission range¹ 600 m with direct line of sight open field²
1 rechargeable battery of 3.7 Vdc/3,000 mAh
DC power supply
(included with amplifier)
AC power supply (included Input: 100/240 Vac ~ 50-60 Hz
with amplifier)
Output: 7 Vdc – 500 mA
Operating temperature -10 to 50 °C @ 90% of humidity
Compatibility 8000 Wireless Security System
Anatel Homologation Yes
Protection against violation Tamper key
Anti-jamming Against invasive signals
Color White
Dimensions ( W × H × D) 122 × 122 × 47 mm
Weight 256 grams (with source)
Intelbras wireless systems are tested to the highest standards and bring high reliability, but due to
1
their use/installation in various scenarios, some considerations must be taken into account:
» Transmitters/receivers may be disturbed by radio signals, natural interference, location of
operation of the devices, climatic issues and other adversities affecting the transmission
of data regardless of the frequency or technology used, since the means of transmission is
adverse and different from place to place.
» The receivers/transmitters of the devices have an internal processing time, and only receive
the data necessary for communication between them after this particular time for the system.
User guide
» Wireless devices must be tested regularly to determine if sources of interference exist and
to protect against possible failures.
Maximum range distance between the AMT 8000 alarm center and the REP 8000 RF range ampli-
2
REP 8000
fier, and the range between the amplifier can extend up to 600 m more according to the environ-
ment and operating conditions.
3. Features
» AMT 8000 system coverage area amplifier.
» Protection against malicious signals.
» Encryption in data transmission between devices.
» Ease of installation and handling.
» Extension of the RF signal up to 600 meters beyond the maximum limit for communication
with the center unit, so with the use of the amplifier a device can communicate at a dis-
tance of up to 1.2 kilometers with the alarm center in the case of direct line of sight and
without barriers.
» Rechargeable battery.
» 7 Vdc/500 mA source included.
Important: each AMT 8000 alarm center can have up to 4 amplifiers operating simulta-
neously, but all in separate operation from each other, so there is no possibility of an amplifier
being used to extend the signal to another REP 8000, only in direct use between devices and
alarm center.
4. Registration at the center unit
To register the amplifier with the alarm center, press the synchro¬nization key on the center
unit and then press the key on the amplifier located on its back, as shown in the following
image, removing the product from the fixing bracket. Check if the LED on the front part of the
amplifier will flash green, indicating the success of the registration. If the LED flashes orange,
the signal is intermittent or weak and if the LED flashes red, there was some fault and the
process must be repeated. The amplifier will be addressed with the center unit according to the
sequence performed, respecting the maximum limit of 4 devices of this type.

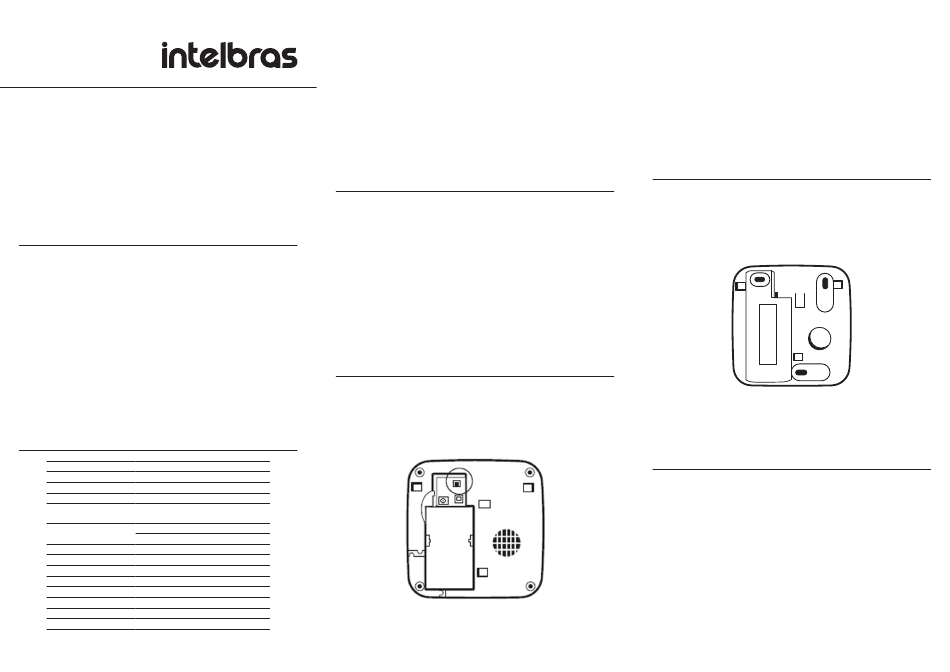

Synchronization key of the amplifier
To check if the amplifier installation location is within the RF signal range, press the synchro-
nization key, and if the LED flashes green the communication is correct, in orange the com-
munication is intermittent/weak and in red there is no commu¬nication with the center unit.
If there is no signal or weak signal, it must be relocated/changed if necessary. After pressing
the synchronization key, the LED indication will flash for 15 minutes, thus giving time to find
an ideal position where it is flashing only in green color. If there is no time to find an optimal
position, simply press the synchronization key again.
To register other amplifiers/accessories through keyboard commands and further information/
configurations, please refer to the complete manual of the AMT 8000 center.
Note: when registering the REP 8000 amplifier to the alarm center using the synchronization
key, perform the practice safely, because the alarm center is energized, so as not to bring risks
to the installer and the equipment.
5. Installation
The REP 8000 amplifier has a specific base to be fixed on various surfaces, such as walls,
among others. To remove the amplifier from the base when it is fixed on some surface, slide it
up and to put it back on the standalone base if it is fixed or in manual use, follow the base's
indicative marking.
Fasten the base with screws1 or double-sided tapes1 on the desired surface and then attach
it to the base. Make sure the base is correctly fixed to the surface and the amplifier is fixed to
the base, so that they do not come Off.
Bracket for fixing to surfaces
Screws, double-sided tape and other accessories are not included with the amplifier and must be pur-
1
chased separately.
6. Registration of devices
For a device to pass through the RF REP 8000 signal amplifier's range extension, it is necessary
that it does not have direct communication with the AMT 8000 alarm center or the commu-
nication is poor with indication ranging from orange to red, otherwise it will communicate
directly with the center without passing through the amplifier.
To check the signal strength of the 8000 line devices, press the synchronization key on them,
where the indicator LED will show their status, and if the LED flashes green, the signal is ex-
cellent, in orange the signal is intermittent or weak and in red there is no communication (only
for the XAT 8000 keyboard the status will be shown through a message on its own display).
After validating the need to pass the communication through the amplifier, remove the power
from the device to have its communication pass through the amplifier and after 3 seconds
replace again. After the device initialization time (varies from 0 to 60 seconds depending on
the type) press its synchronization key again and through the indicator LED or on the display in
case the XAT 8000 is the new communication status that follows the same results above (to
check if the device is passing through the repeater, on the XAT 8000 keyboard press the Menu
key and then navigate to the Wireless Signal option by the Arrow down key and press Enter,
select the desired device and confirm with Enter .
