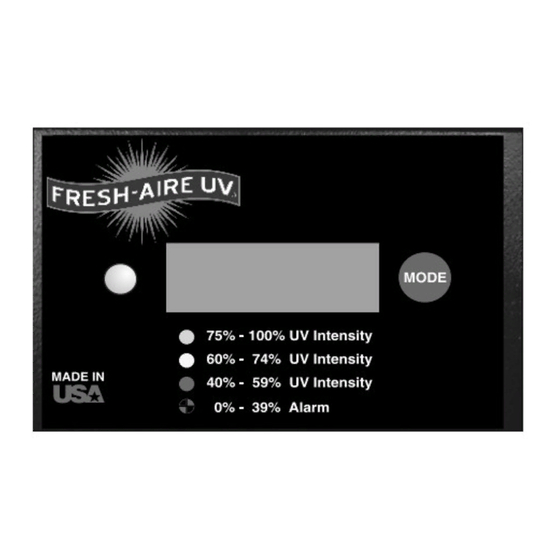

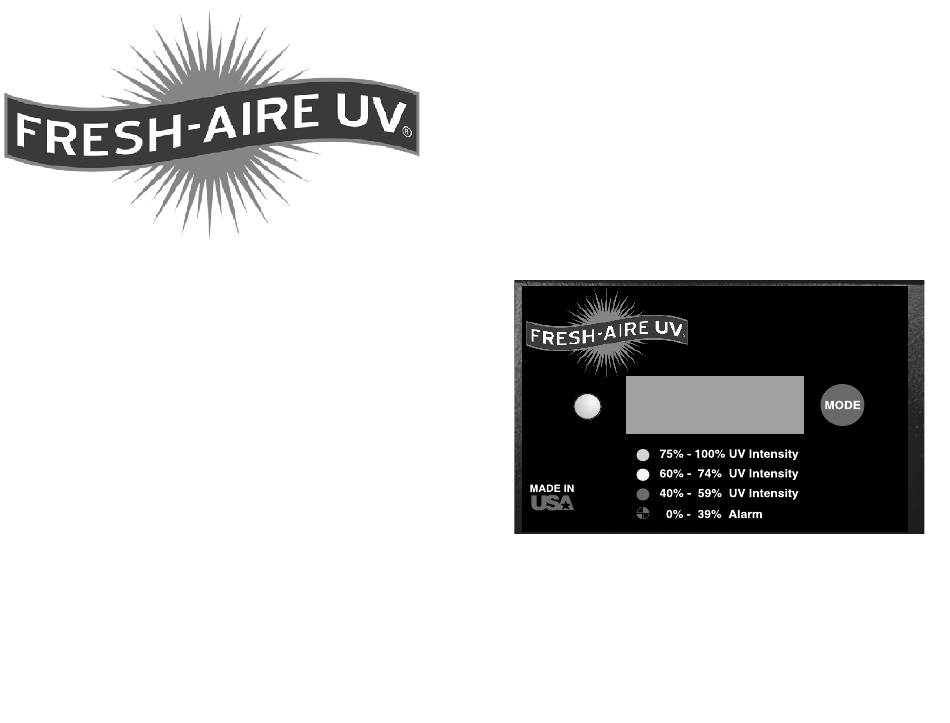

- Page 1 User Manual User Manual For Radiometer models: TUVC-RAD-100DL www.FreshAireUV.com sales@FreshAireUV.com PROUDLY DESIGNED AND MADE IN THE USA...
- Page 2 WARNING All power should be turned off prior to installation. Never expose eyes or skin to UV light from any source. Wear gloves, glasses/face shield per ANSI Z87.1 and coverall exposed skin. The UV lamp(s) should not be touched without gloves.
- Page 3 Please read this entire instruction manual before starting installation. Fresh-Aire UV warrants to the original buyer that the Radiometer shall be free from defects in material or workmanship under normal use and service for one year. The warranty is contingent upon proper use of the Radiometer and will not apply...
- Page 4 Dimensions Electrical Connections Width: 3.75” (9.5cm) Length: 2.5” (6.2cm) Height: 1.125” (3.8cm) Software, Screens and Operation Screen 1 Upon powering up the unit, the software revision will be displayed for about 5 seconds. If the “MODE” button is depressed the screen will stop WARNING showing the revision and jump to the next screen.
- Page 5 Screen 3 Data logging output (optional) Tapping the “MODE” key once more will advance the unit to SCREEN #3. If this option is installed, a linearized analog voltage is output with the following SCREEN #3 will scroll “Intensity xxxx” to indicate absolute UV measured intensity end points: + 100 mVolts times 10, in µW/cm where “xxxx”...
- Page 6 For example: Error Screens SCREEN #5: “Hold To Reset”.After the baseline is reset by holding down the “MODE” key for more than 3 seconds, The following scrolling screens will indicate abnormal operations of the radiometer. the screen will display “done”. The radiometer will revert to normal operation once the problem is corrected: When the screen changes to “done", indicating that the baseline was reset SCREEN #2 (percentage) will show 100 (%) and SCREEN #4 (days) will show...
