Summary of Contents for Westcott FJ80

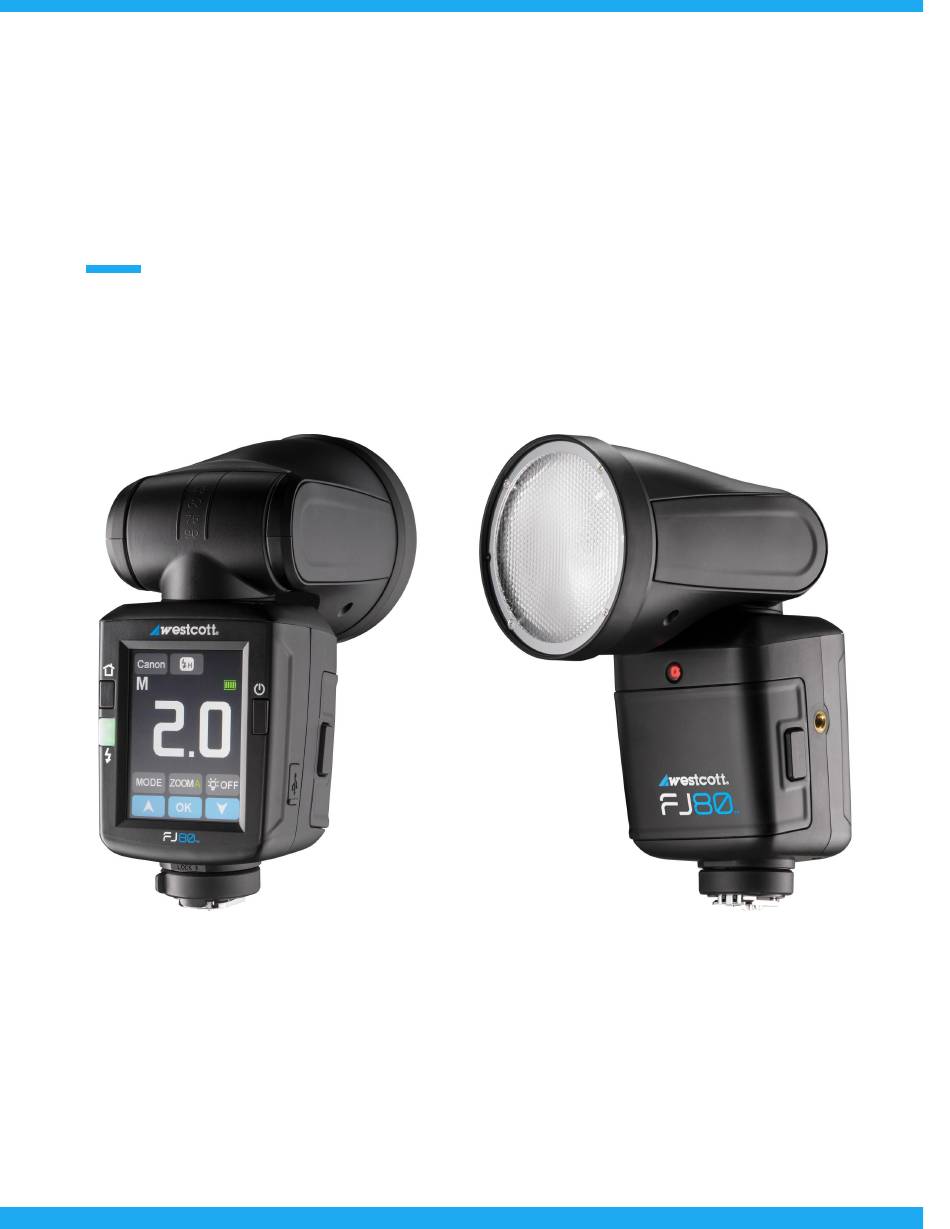

- Page 1 FJ80 Universal Touchscreen Speedlight User Manual V1.0.3 3/16/2021...
-
Page 2: Table Of Contents
Attaching the FJ80 Cold Shoe Stand Attaching the FJ80 Magnetic Diffusion Dome [sold separately] Attaching the FJ80 Magnetic Diffusion Dome with Color Gel [sold separately] Attaching the Honeycomb Clip & 30° Grid [sold separately] Attaching the Honeycomb Clip and Color Gels [sold separately] FJ80 Speedlight: Powering &... - Page 3 Enable SPEEDLIGHT Mode Selectable Digital Touchscreen Buttons Auto-focus (AF) Assist Beam FJ80 Speedlight: HOST Wireless Operation Enable HOST Mode Selectable Digital Touchscreen Buttons FJ80 Speedlight: CLIENT Wireless Operation Enable CLIENT Mode Selectable Digital Touchscreen Buttons [NEW] Remote ZOOM Control FJ80: Settings Menu...
-
Page 4: Introduction
One last thing and this is the important one. Don’t forget that Westcott HQ is based in Maumee, OH and our team’s available to answer your questions, Monday-Friday 9am-5pm ET. We also have a community of Westcott loyal users who are ready to share their tips-and-tricks via the Westcott Lighting Community on Facebook during the week or on the weekend. -
Page 5: Components (Included)
Speedlight (when used as a transmitter) is independent of the Flash Exposure Compensation (FEC) on the FJ80 Speedlight (when used as a client). Meaning, a change of the FEC ±3 on the FJ-X2m or host FJ80 will adjust the light output in TTL mode; however, a client FJ80’s touchscreen will not visually indicate the FEC changes made on the FJ-X2m or host FJ80. -

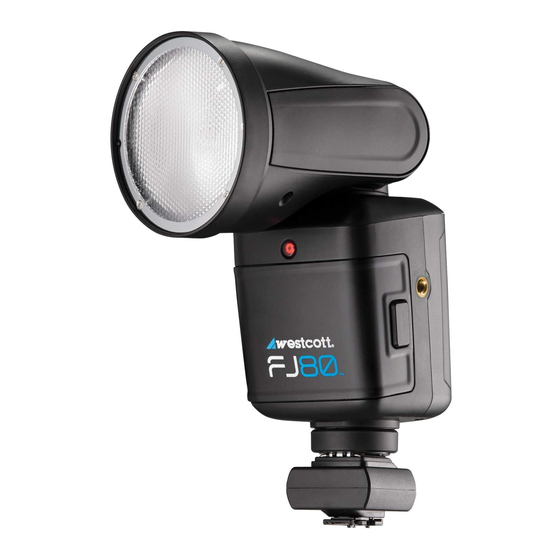

Page 6: Fj80 Speedlight: Overview
FJ80 Speedlight: Overview... -
Page 7: Fj80 Speedlight: Lcd Display & Menus
FJ80 Speedlight: LCD Display & Menus... -
Page 8: Fj80 Speedlight: Warnings
● Do not submerge in water. ● Avoid drastic temperature changes before, during, or after use. ● Always remove the FJ80 Lithium Polymer Battery from the FJ80 Speedlight during travel/storage to avoid accidental operation, which could lead to overheating or permanent damage. -
Page 9: Fj80 Speedlight: Firmware Updates
9. Remove the USB-C cable from the FJ80 and reinsert the battery. 10. Long press the Power | Test button on the FJ80, tap the blue power logo on the screen to initiate the firmware update. Finally, confirm installation was successful by locating the firmware text in the bottom right corner of the screen during the start-up process. -
Page 10: Fj80 Speedlight: Getting Started
Reinsert the FJ80 Battery into the speedlight by aligning the silver contacts on the back of the battery to the contacts on the FJ80 battery port and gently press the battery into the port until it clicks into place. DC Power Operation Ensure the FJ80 battery is completely charged. -
Page 11: Fj80 Speedlight: Mounting
Attaching to a Camera Ensure the FJ80 is OFF. 2. Slide the FJ80 Speedlight base into the camera’s hot shoe with the touchscreen facing the same direction as the rear of the camera. (NOTE: Sony cameras REQUIRE the #4711 FJ-X2m Adapter for Sony Cameras.) -
Page 12: Attaching The Fj80 Magnetic Diffusion Dome With Color Gel [Sold Separately]
3. Align the clip side with the four magnetic points with the front face of the FJ80 and gently affix it into place. -
Page 13: Test Fire
Test Fire Quick press the white Test button [backlit green] once to test-fire the FJ80 Speedlight. When the Test button is pressed, the backlit button will turn from green to red until the speedlight has recharged and ready for the next burst. -
Page 14: Auto-Focus (Af) Assist Beam
Top Section ● Camera Brand Button: [Canon, Fuji, Lumix, Nikon, Sony, Olympus] ● Channel Button (CH): [01-31] ● Group Button (GR): Fixed; The FJ80 will default and remain in Group A when HOST mode is enabled. Middle Section ● Group Selections: [A-F] ●... -
Page 15: Fj80 Speedlight: Client Wireless Operation
Press OK to confirm the selection. Selectable Digital Touchscreen Buttons Top Section ● Wireless Button: Fixed; The FJ80 will default and remain in TTL-ALL Wireless Mode when the CLIENT Mode is enabled. ● Channel Button (CH): [01-31] ●... -
Page 16: [New] Remote Zoom Control
3. Long-press the middle Menu Selection Button [CH] to highlight all groups [A-F]. 4. Quick press the FJ-X2m Selection Wheel to adjust the FJ80 ZOOM settings [0-5] for all groups. 5. Scroll the Selection Wheel to adjust the FJ80 ZOOM settings. -
Page 17: Selectable Digital Touchscreen Buttons
● RT ID# Options: [OFF, ON] [00-99] ● Factory Reset Option: Press to highlight button and press OK. NOTE: Beep [ON/OFF] controls the audible beep notification for FJ80, FJ200, and FJ400 units being controlled by an FJ80 in HOST mode. - Page 18 Mounting System FJ80 Magnetic Mount Auto Multi-Voltage Flash Increments 0.1-stop; 1.0-stop Flash Modes Manual / TTL Continuous Capture 20 fps (Camera Model & Speedlight Settings Dependent) IGBT Flash Exposure Compensation (FEC) ±3 Modeling Lamp (Output) LED 3 Watts (5600K ±200K) Flash Tube Ω;...
-
Page 19: Warranty Information
Warranty Period, at its option and to the extent permitted by law, Westcott will either (1) repair the defect at no charge, using new or refurbished replacement parts, or (2) exchange the product with a product that is new or which has been manufactured from new or serviceable used parts and is at least functionally equivalent to the original product. -
Page 20: Legal Information
Westcott is not responsible for any potential or incurred damage caused by failure to properly mount, hang, or store the product, which includes, but is not limited to damage to cameras, electronics, electrical equipment, buildings, building materials, personal injury, death, or disability, fire damage, or any and all other damage not mentioned previously.
