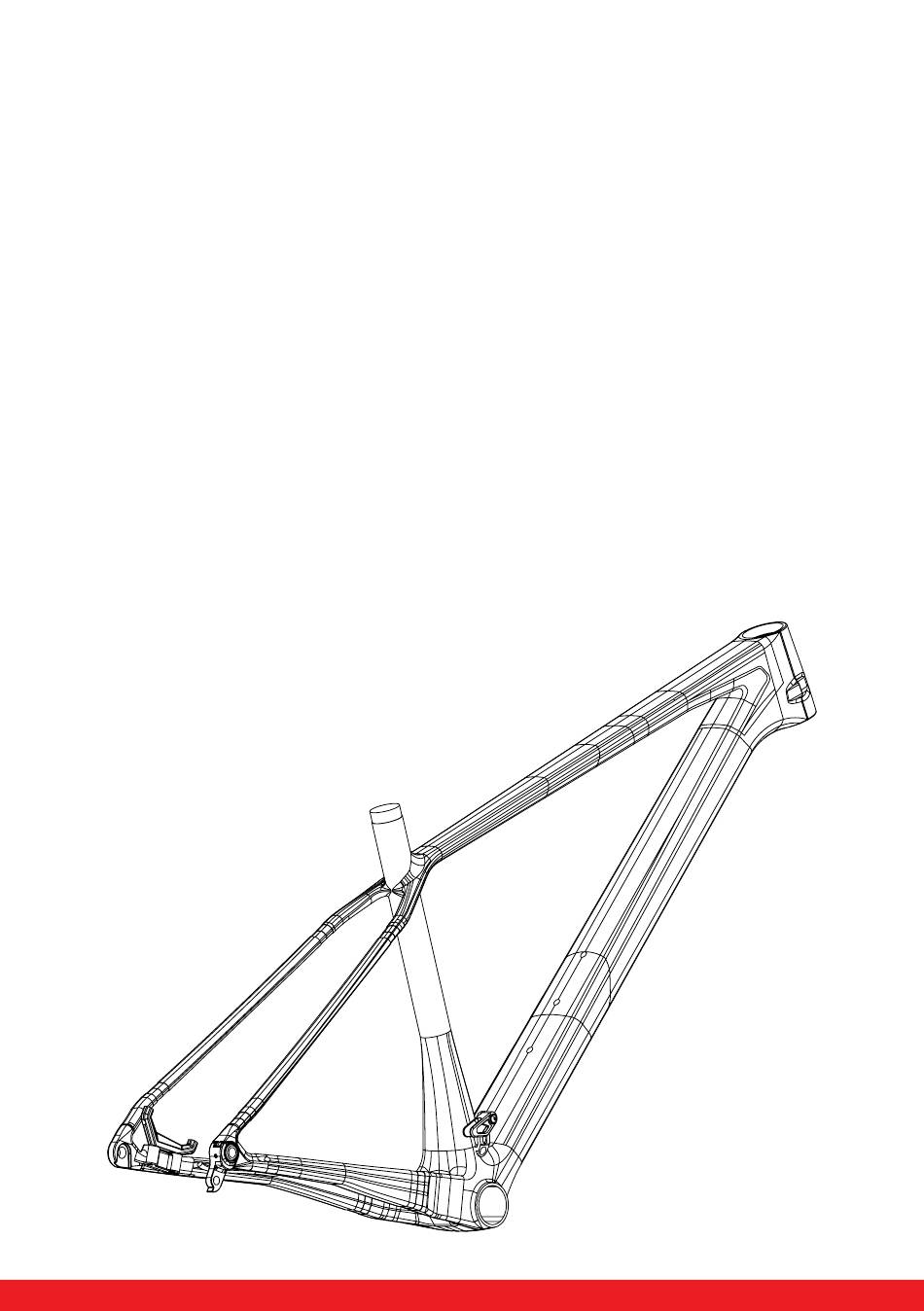

- Page 1 SERVICE MANUAL SUPERIOR BF-FB03...
- Page 2 Mountain bikes are equipped with a rear suspension with short travel and are constructed for “standard,” “racing”, “cross-country” or “singletrack-trail” rides, assuming adherence to type-3 operating conditions: Superior would like to congratulate you on the purchase of your new bicycle. We place great emphasis on the choice Type-3 operating conditions...
- Page 3 SERVICE INTERVALS SETTING THE FORK AND SHOCK ABSORBER Large-scale service – At an authorized service centre, at least 1× per year or after 200 hours of riding. • Check the tightening of mobile parts before and after each ride. The prescribed torques of individual joints •...
- Page 4 SERVICE 2 REPLACEMENT OF THE HYDRAULIC HOSE OF THE REAR BRAKE 2.1 Slide the old hose out from the guide in the frame. 2.2 Slide a new hose in the rear structure through hole B. REPLACING THE SHIFTING CABLES AND HOSES Ducts are made using guiding tunnels inside of the bicycle frame structure components.
- Page 5 SERVICE COMPATIBILITY Front Ø 160 -180 mm Disc Rear Ø 140 -180 mm 3. REPLACEMENT OF THE TELESCOPIC SEATPOST CONTROL Tyre max. 29 × 2.35” 3.1 Slide the old cable/hose out from the guide in the frame. 3.2 Slide a new cable/hose in the frame through hole C. Chainring 1×...
-
Page 6: Smart Tips
ORIGINAL ACCESSORIES ITEM BFI PRODUCT CODE ART. NO. E-THRU AXLE 598.1303.00019 DERAILLEUR HANGER 013.0002.00146-398 BRAKE ADAPTER 160 MM 073.0013.00033-372 BRAKE ADAPTER 180 MM 073.0013.00034-372 FRAME PROTECTOR DT - TRAIL 087.4000.00003-196 CHAIN GUIDE 067.0012.00001-196 CHAIN GUIDE BRACKET 067.0012.00008-398 FRAME PROTECTOR CH/S 087.8000.00025-196 HEADSET 009.1205.00002-389... - Page 7 #BEFASTER Superior is a registered trade mark of BIKE FUN International Areál Tatry 1445/2 742 21 Kopřivnice www.superiorbikes.eu...
