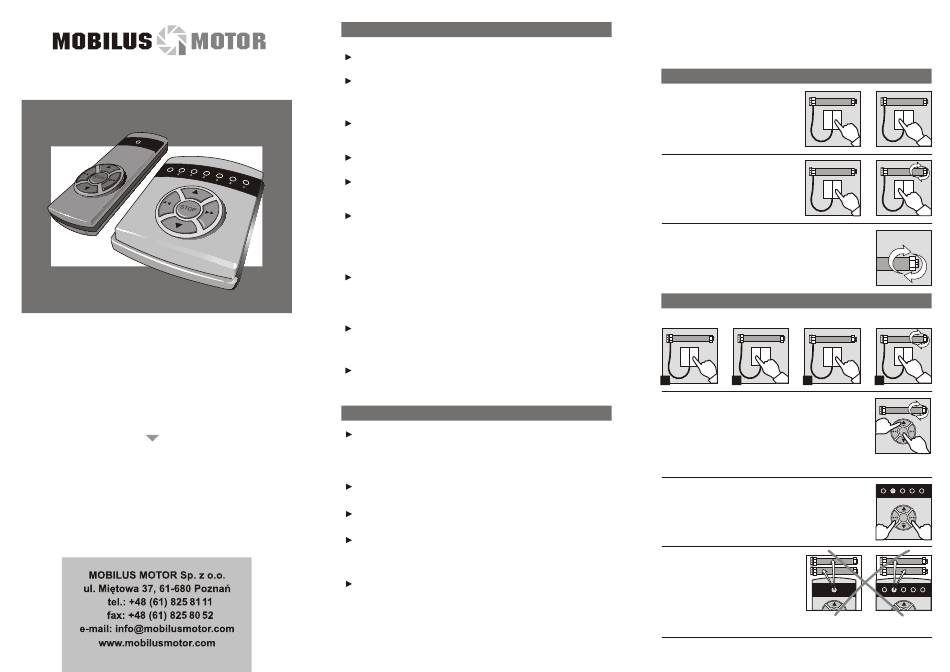

MOBILUS MOTOR Cosmo H User Manual

1
INSTRUKCJA
WCZYTYWANIA KODU
PILOTA DO PAMIÊCI
SI£OWNIKA SERII COSMO
Z WBUDOWANYM
ODBIORNIKIEM RADIOWYM
USERS MANUAL FOR READING
THE EMITTER CODE
INTO THE WIRELESS
COSMO MOTOR

Safety guide

COSMO rotatable tubular motor is used in automatic operation of
roller blinders, grates, gates and awning.
After removing the device form the box, check if it is free form any
visible damages made in transportation for instance. If such damages
have been found, it is crucial to instantly inform the supplier about it.
Do not install device
Improper installation may lead to personal injury. This is why it is
important to proceed according to the manual hereto. It is also
important to keep it for reference.
Do not let children play with the remote control of the tubular motor.
Check regularly the technical condition of the tubular motor. Do not
use if requires repair or maintenance.
Tubular motor must not be used by persons (including children) who
have limited physical, psychical ability or feeling disorder, or persons
with no experience or knowledge about the device unless under the
supervision or according to users manual provided by persons
responsible for the safety of the tubular motor.
COSMO tubular motor shall be supplied by 230V~, 50Hz. Connection
shall be performed by licensed electrician in accordance with attached
electrical schemes and regulations in force.
COSMO remote wall holder shall be installed in visible location away
from movable elements, on 1,5m form the ground. COSMO remote
must also be kept away form movable elements.
Tubular motor electrical installations must be equipped with safety
disconnection devices.

Initial remarks

Standard holders PICO and PRO series are used for the installation of
PICO COSMO and PRO COSMO tubular motors. Installation in the
roller and regulation of COSMO limit switches shall be performed
according to "installation manual" and users manual of standard
tubular motor series PICO and PRO.
COSMO tubular motors shall mate with all COSMO remotes.
Maximum 8 remotes (channels in case of multichannel remotes) may
be read into one tubular motor.
The range of the wireless is limited by regulations concerning the
maximum power of the remote as well as the conditions of its
installation. Designing the location of the remotes it is important to
consider 25m range through 2 walls.
Declaration of conformity:
We hereby declare, with full responsibility, that PICO COSMO and
PRO COSMO tubular motors comply with the following European
Norms:
1. 73/23/EWG LV Directive
2. 89/336/EWG Electromagnetic Compatibility Directive
ATTENTION!
All software and change of the direction of the turning of the tubular motor
are confirmed by half-turns of its drive. This is why remote must not be
programmed if in extreme UP or DOWN position. It may cause damage.

Entering the MASTER programming mode*

1. Connect to power.
ON OFF
2. Switch on and off the power
supply of the tubular motor.
3. 1.Switch on and off the power
supply of the tubular motor again.
Two half-turns of the drive
ON OFF
confirms entering into
the programming mode.
ATTENTION!
If within 20 seconds none of the procedures shall be
commenced – tubular motor shall return to it's work
mode and shall remain not programmed.

Reading of the MASTER code into the tubular motor memory

1. Enter MASTER programming mode.
ON OFF ON OFF ON OFF
1 2 3
2. Press and hold "stop" and "up" for more than 1 second
on the emitter. Drive shall make two half-turns and
confirming MASTER read in and tubular motor
shall switch to work mode.
Now you can operate the tubular motor or program
another remote by means of the MASTER.
ATTENTION!
In case of multichannel remote (H5, W7, H24),
select MASTER channel by means of L or P
buttons.
INDICATION!
For convenience it is recommended
that each tubular motor has its own
separate MASTER remote
(separate channel in case
MASTER
of multichannel remote).
Avoid situations where several tubular motors shall have one
common MASTER remote (common channel).
*
MASTER- remote or channel (in case of multichannel remote) read into the tubular motor as
first. Enables programming of the subsequent remotes.
ON OFF
ON OFF
1.......20 sek.
ON OFF
4
STOP
select channel
STOP
MASTER
