EPW2 • EPW4 • EPW6 • EPW10

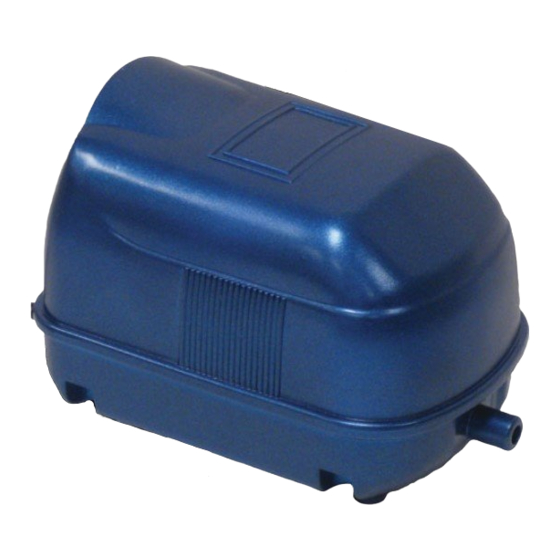

Linear Diaphragm Compressors
These linear diaphragm compressors are very durable and the continuous
duty motors are designed for years of service. Ideal for aerating ponds,
water features, bait tanks and large aquariums.
• 115 volt motors are super quiet
• Weatherproof enclosures - can sit outdoors without damage
• Energy efficient - operates on only a few watts of power
• Reliable - linear compressors have few moving parts making them very reliable
CFM Air Flow and Water Depth:
EPW2
EPW4
EPW6
EPW10
Installation Instructions:
1. The first step of installation is to attach one end of the tubing to the compressor. Some tubing will attach
directly to the compressor, other sizes may need to use the short piece of rubber hose that is included
with the compressor. If tubing is connected directly, simply slide tubing onto outlet of compressor and
clamp. If an adapter hose is needed, slide one end onto compressor and clamp - the other end can be
connected to the tubing using an adapter so the two sizes will hook to each other.
2. Before attaching the other end of the tubing to the air diffuser, trim the tubing to your desired length
Once trimmed you can attach the tubing to your diffuser and secure with a clamp. You may have to add
weights to the tubing to get it to sink. If you purchased self weighted tubing then you will not need to
add weights.
3. Install the diffuser in the location of choice in your pond. Note: In freezing climates it is recommended
that you do not locate the diffuser in the deepest part of the pond — this is the warmest water in
freezing conditions and should not be disturbed.
4. Put the air compressor in a location so that it cannot fall into the water. While the compressors are
weather resistant, it is still advised that you shelter your compressor from the elements. Direct rain and
snow may shorten the life span of the unit. Note: In the winter damp air can condense on the inside wall
of the hose. This can eventually block the hose completely, it is important to check the hose frequently
during freezing temperatures.
Instructions for
Operation • Safety • Warranty
Watts @ 115v
15
35
45
96
0
2'
0.8
0.6
1.8
1.6
2.5
2.3
5.2
5.0
(Recommended operation in shaded area)
4'
6'
0.5
0.4
1.3
1.0
2.0
1.8
4.6
4.1
8'
10'
-
-
0.9
0.6
1.7
1.4
3.6
3.1
Advertisement
Table of Contents
Related Manuals for EasyPro EPW2
Summary of Contents for EasyPro EPW2
- Page 1 EPW2 • EPW4 • EPW6 • EPW10 Linear Diaphragm Compressors Instructions for Operation • Safety • Warranty These linear diaphragm compressors are very durable and the continuous duty motors are designed for years of service. Ideal for aerating ponds, water features, bait tanks and large aquariums.
- Page 2 EPW4RK EPW10RK EPW4 EPW10 Complete aeration kits available with compressor, tubing & diffusers. Visit our website for more information www.easypro.com EasyPro Pond Products Limited Warranty EasyPro Pond Products (“EasyPro”) warrants to the purchaser that this product (“Product”) will be free from any mechanical or material defects for a period of two years from the date of purchase. Air filter, flapper valves and diaphragms are considered wearable items and are not covered by this warranty. This warranty only covers properly installed and maintained Products sold by authorized EasyPro Sellers who are subject to and follow EasyPro’s quality control standards. Please note that because EasyPro is unable to control the quality of Products sold by unauthorized sellers, unless otherwise prohibited by law, this warranty does not cover Products purchased from unauthorized sellers. This warranty does not cover normal wear and tear, nor any deterioration suffered through overloading, improper use, negligence, improper installation, acts of God or accident. Similarly, any modification made by the purchaser to the Product will cause the warranty to be null and void. This warranty does not cover any...
