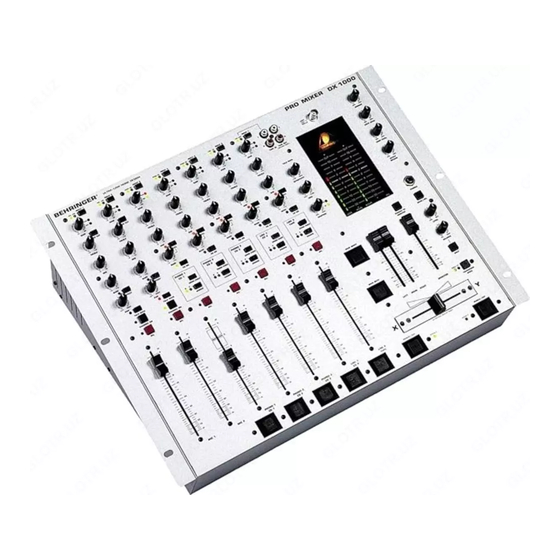

Behringer DX1000 User Manual
Professional dj mixer with a total of 4 stereo sources on 2 dual-input channels
Hide thumbs
Also See for DX1000:
- User manual (22 pages) ,
- User manual (29 pages) ,
- User manual (29 pages)
Table of Contents
Advertisement
Advertisement
Table of Contents
Related Manuals for Behringer DX1000
Summary of Contents for Behringer DX1000

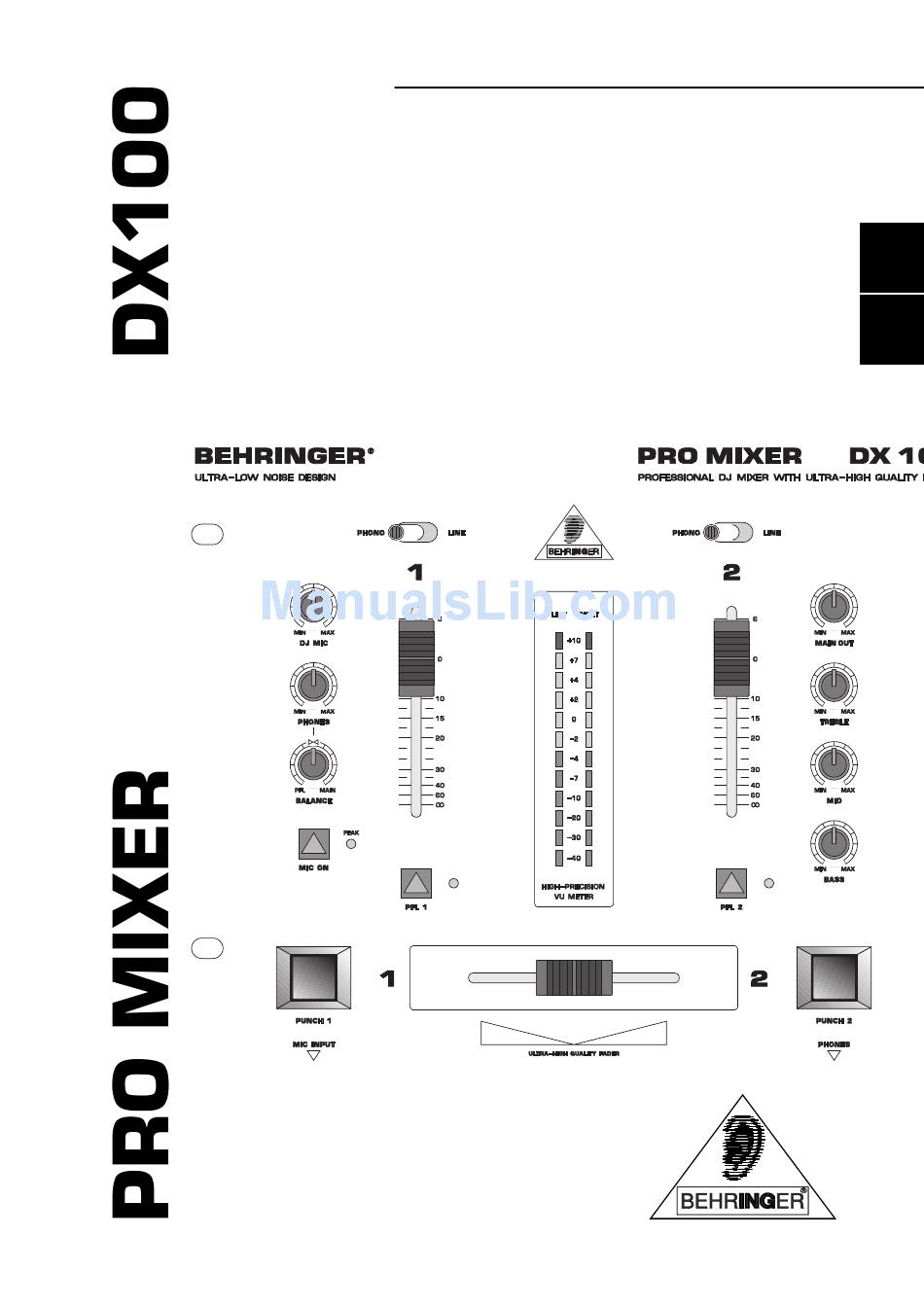

- Page 1 User´s Manual Bedienungsanleitung Version 1.1 July 2000 www.behringer.com...
- Page 2 EG-Declaration of Conformity 89/336/EWG and 73/23/EWG BEHRINGER INTERNATIONAL GmbH Hanns-Martin-Schleyer-Straße 4 D - 47877 Willich Name and address of the manufacturer or the introducer of the product on the market who is established in the EC herewith take the sole responsibility to confirm that the product:...
-
Page 3: Safety Instructions
SAFETY INSTRUCTIONS CAUTION: To reduce the risk of electrical shock, do not remove the cover (or back). No user serviceable parts inside; refer servicing to qualified personnel. WARNING: To reduce the risk of fire or electrical shock, do not expose this appliance to rain or moisture. This symbol, wherever it appears, alerts you to the presence of uninsulated dangerous voltage inside the enclosure... - Page 4 s High-class microphone input with peak indicator s High precision phono pre-amps for bass power and crystal clear sound s Ultra-musical 3-band EQ for maximum creative power s Ultra-low noise design comparable to studio grade consoles s Replaceable and ultra-high quality cross fader guarantees 100.000 lifecycles s Large Punch buttons at the cross fader –...
- Page 5 It is our philosophy to share our joy with you, because you are the most important member of the BEHRINGER family. With your highly competent suggestions for new products you’ve greatly contributed to shaping our company and making it successful.
-
Page 6: Table Of Contents
TABLE OF CONTENT 1. THE MANUAL ... 7 1.1 Nomenclature ... 7 2. DX100 OVERVIEW ... 7 2.1 Highly accurate Main / PFL Peak - reading bargraph meters ... 8 2.2 How will YOU use YOUR DX100? ... 8 2.3 PSU (Power Supply Unit) ... 8 2.4 Warranty ... -
Page 7: The Manual
Otherwise you’ll never know what possibilities you might be missing out on! The following operational manual will introduce you to the BEHRINGER PRO MIXER DX100 and its various functions. After reading the manual carefully, make sure it is always on hand for future reference. -
Page 8: Highly Accurate Main / Pfl Peak - Reading Bargraph Meters
Wide Web (www.behringer.com). 2.5 Packing Your BEHRINGER PRO MIXER DX100 was carefully packed in the factory and the packaging was designed to protect the unit from rough handling. Nevertheless, we recommend that you carefully examine the packaging and its contents for any signs of physical damage, which may have occurred in transit. -
Page 9: Input Gain
Never patch line level devices into your highly sensitive phono inputs. Phono cartridge output is measured in millivolts. Line level signals are of the order of magnitude of a volt. With line levels you are looking at a signal up to 100 times more powerful than the phono pre-amplifier is designed to handle! If for some reason your turntable has a built-in RIAA pre-amp, you should patch it into a line level input. -
Page 10: Equalizer
the level of that side of the cross fader. This way it is possible to punch in a piece of music, typically a certain drum track or lyric, into the playing piece of music. Traditionally this is done by rapidly pushing the fader up from minus infinity to 0 or +6 dB or moving a cross fader from one side to the middle to give a stuttering or ‘gated’... -
Page 11: Headphones, Monitors & Pfl
6. HEADPHONES, MONITORS & PFL 6.1 PFL : Pre-Fader listening When any PFL button is depressed the main meters will change to displaying PFL level. PFL is the way to hear, cue and set up a piece of music before you play it out in the mix. In the club environment, things get messy. -
Page 12: Plug Soldering Guide
7.2 Plug soldering guide You will need a lot of cables for different purposes - see the following figures to make sure you have got the right ones. Use custom-made RCA cables for all connections which use RCA sockets (centre post = signal (+ve) and sleeve = ground/screen). -
Page 13: Glossary
Fig. 7.2: Headphones connector 8. GLOSSARY Ambient Music atmospheric/lacking in a strong beat (e.g. can be played with a drum track, can be rhythmically gated etc.) Balance relative levels of left/right in a stereo pair, usually controlled by a panoramic potentiometer (panpot) Beats Per Minute Channel input strip on a mixing desk... - Page 14 Equalizing the use of filters for cutting or boosting selected frequencies Exciter/Enhancer device or program for improving treble and bass intelligibility Expander (see Noise Gate) Fader linear potentiometer with logarithmic response Feedback (howlround) unstable circuit (e.g. mic/speaker, input/output) where a signal is able to return to an input from an output, causing successive cycles of progressively higher gain (avoid it by e.g.
- Page 15 Rapping adding dialog to a rhythmic track Recorder device or program for recording and playing back sounds (e.g. tape, hard disk) Regeneration (see Feedback) Resonance fast feedback Reverb device or program for adding reverb Route signal path Revolutions Per Minute Sampler device for digitally storing and playing back sound Scratching...
-
Page 16: Specifications
Net weight (without PSU) BEHRINGER is constantly striving to maintain the highest professional standards. As a result of these efforts, modifications may be made from time to time to existing products without prior notice. Specifications and appearance may differ from those listed or shown. -
Page 17: Warranty
5. Any repair or opening of the unit carried out by unauthorized personnel (user included) will void the warranty. 6. If an inspection of the product by BEHRINGER shows that the defect in question is not covered by the warranty, the inspection costs are payable by the customer. - Page 18 Front Panel Rear Panel...
- Page 19 BLOCK DIAGRAM...
