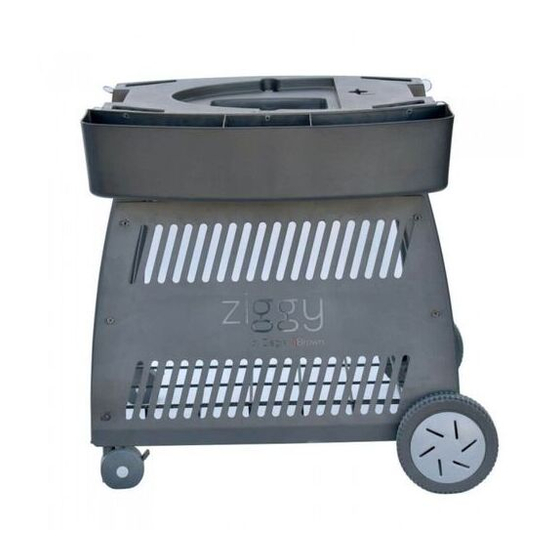

- Page 1 ZIEGLER & BROWN MOBILE CART ASSEMBLY INSTRUCTIONS CART CODE: ZGTGCARTC SUITS ZIGGY TWIN GRILL...
- Page 2 ASSEMBLY INSTRUCTIONS PARTS LIST FIRST CHECK THAT YOU HAVE ALL THE PARTS: ITEM PART NAME PICTURE SPARE PART CODE LEFT FRONT LEG ZG3G010304AC BLACK LEFT BACK LEG ZG3G010303AC BLACK RIGHT FRONT LEG ZG3G010304BC (WITH AXLE HOLE) BLACK RIGHT BACK LEG ZG3G010303BC (WITH AXLE HOLE) BLACK...
- Page 3 ASSEMBLY INSTRUCTIONS FASTENERS QTY. PICTURE MARK ITEM DESCRIPTION Bolt M6 x 20mm Allen Key Head M6 x 50mm Bolt & Nut Allen Key Head M6 Nut Spacer Split Pin M6 Allen Key Spanner Spanner Self Tapping Screws Allen Key Head (COMPLETE BOLT PACK SPARE PART CODE ZGTGCARTBP)
- Page 4 ASSEMBLY INSTRUCTIONS Turn the CART TABLE (F) LEGS (A), (B), (C), (D) as shown so that the legs all lean outwards. Matching the Step 1 colour coded stickers makes this easier. The RIGHT SIDE LEGS (C) AND (D) with axle holes need to be both on the same side as shown. Secure each leg with one M6 X 50mm BOLT (M) and one M6 NUT (N).
- Page 5 Fit the four LEG SUPPORTS (X & Y) as shown to brace the legs onto the table using eight M6 x 20mm Bolts (L) and four M6 Nuts (N). Matching the colour Step 2 coded stickers makes this easier. Use the Allen key and the Spanner (R) together to help hold the nut while you turn the bolt.
- Page 6 Fit the BOTTOM MESH (E) using four mm BOLTS (L). Step 3 Once all four bolts are in place, fully tighten using the M6 Allen Key (Q). BOTTOM MESH (E) M6 X BOLT (L) 4 PCS...
- Page 7 First unscrew all the six pre-installed bolts from the CART FRONT LEGS (Figure 1). Step 4 Then install the FRONT PANEL (JJ) onto the CART FRONT LEGS with the same six bolts (Figure 2). The brand name needs to be facing out as shown. Now go back and fully tighten all nuts and bolts used in Steps 1, 2, 3 &...
- Page 8 Thread the AXLE (I) FIRST WHEEL (H), then through a SPACER Step 5 (O), then through the legs, then through another SPACER (O), then through another WHEEL (H). SPLIT PIN (P) into the axle, and clip the HUBCAPS (G) to the wheels. one CASTOR WITH LOCK (Z) onto each leg SPANNER (S).
- Page 9 Turn the cart the correct way up and lock each leg in place with one M6 X 20mm Step 6 BOLT (L) ALLEN KEY (Q). M6 X 20mm BOLT (L) 4PCS ALLEN KEY (Q) 1 PC...
- Page 10 Step 7 Hook the CONDIMENT TRAY (J) SELF TAPPING SCREWS (T). (INSIDE VIEW) CONDIMENT TRAY (J) SELF TAPPING SCREWS (T) 3PCS...
- Page 11 Step 8 Set all four leg locking pins to their “open” position by gently pulling outwards and twisting the rings to their “open” horizontal position as shown below. Place your Ziegler and Brown Twin Grill (SOLD SEPARATELY) in place on the table with the control panel at the front, cart wheels on the right as shown below.
- Page 12 Step 9 Refer to your Ziegler and Brown Twin Grill instruction manual for details on attaching and safety connecting the gas supply. For reticulated (piped) gas connections, the chain supplied with the barbeque is required as detailed in the barbeque instruction manual.
- Page 13 Lock Lock Lock Lock Parts List ITEM PART NAME PART CODE QTY PER BBQ QTY PER CODE LEFT FRONT LEG - BLACK ZG3G010304AC LEG BACK LEG - BLACK ZG3G010303AC RIGHT FRONT (WITH AXLE HOLE) - BLACK ZG3G010304BC RIGHT BACK (WITH AXLE HOLE) - BLACK ZG3G010303BC BOTTOM MESH ZGTG0306...
