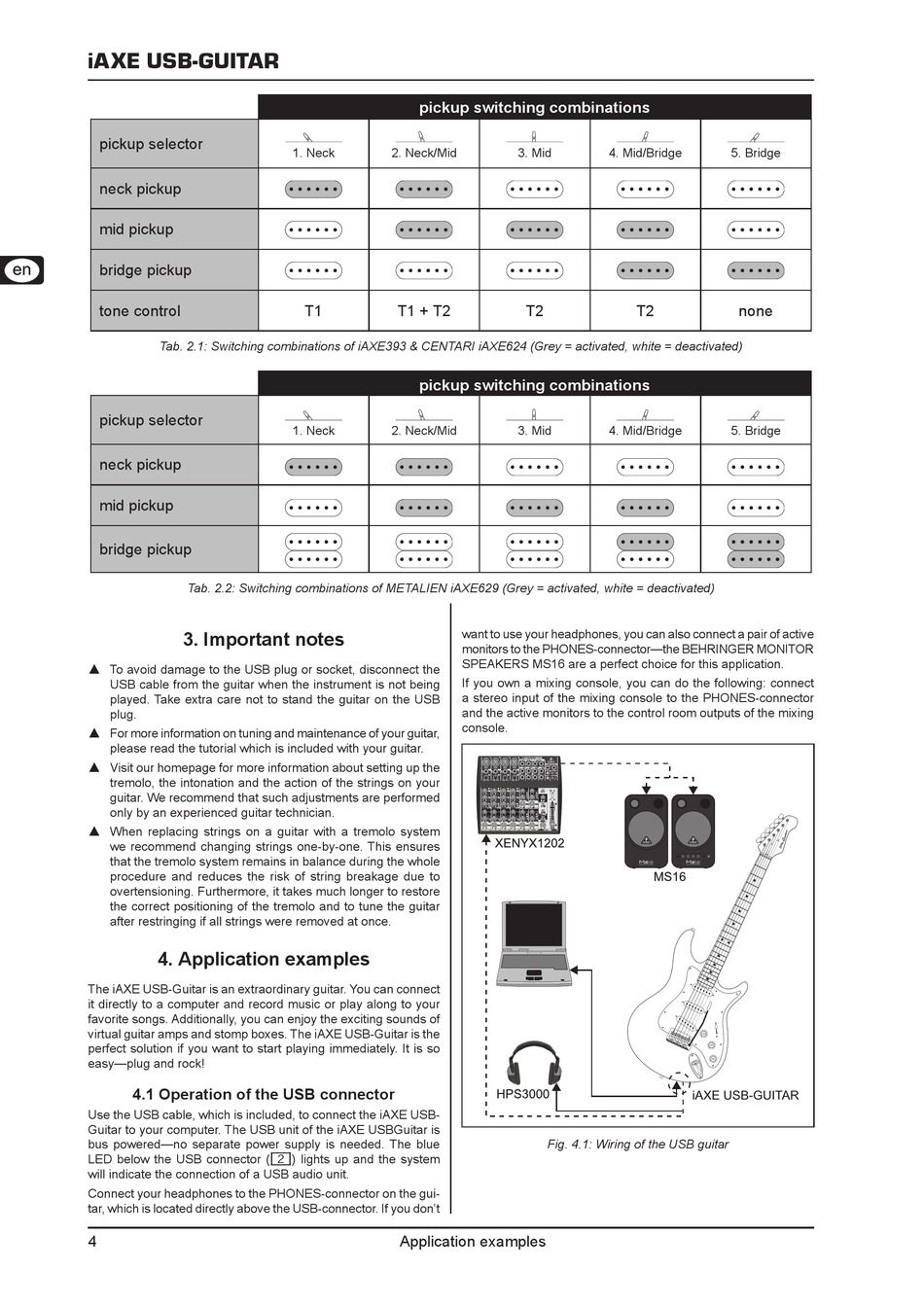

iAXE USB-GUITAR
pickup selector
neck pickup
mid pickup
bridge pickup
tone control
Tab. 2.1: Switching combinations of iAXE393 & CENTARI iAXE624 (Grey = activated, white = deactivated)
pickup selector
neck pickup
mid pickup
bridge pickup
Tab. 2.2: Switching combinations of METALIEN iAXE629 (Grey = activated, white = deactivated)
3.

Important notes

To avoid damage to the USB plug or socket, disconnect the
=
USB cable from the guitar when the instrument is not being
played. Take extra care not to stand the guitar on the USB
plug.
= For more information on tuning and maintenance of your guitar,
please read the tutorial which is included with your guitar.
Visit our homepage for more information about setting up the
=
tremolo, the intonation and the action of the strings on your
guitar. We recommend that such adjustments are performed
only by an experienced guitar technician.
= When replacing strings on a guitar with a tremolo system
we recommend changing strings one-by-one. This ensures
that the tremolo system remains in balance during the whole
procedure and reduces the risk of string breakage due to
overtensioning. Furthermore, it takes much longer to restore
the correct positioning of the tremolo and to tune the guitar
after restringing if all strings were removed at once.
4.

Application examples

The iAXE USB-Guitar is an extraordinary guitar. You can connect
it directly to a computer and record music or play along to your
favorite songs. Additionally, you can enjoy the exciting sounds of
virtual guitar amps and stomp boxes. The iAXE USB-Guitar is the
perfect solution if you want to start playing immediately. It is so
easy—plug and rock!
4.1 Operation of the USB connector
Use the USB cable, which is included, to connect the iAXE USB-
Guitar to your computer. The USB unit of the iAXE USBGuitar is
bus powered—no separate power supply is needed. The blue
LED below the USB connector ({2}) lights up and the system
will indicate the connection of a USB audio unit.
Connect your headphones to the PHONES-connector on the gui-
tar, which is located directly above the USB-connector. If you don't
4
pickup switching combinations
1. Neck 2. Neck/Mid
T1 T1 + T2
pickup switching combinations
1. Neck 2. Neck/Mid
want to use your headphones, you can also connect a pair of active
monitors to the PHONES-connector—the BEHRINGER MONITOR
SPEAKERS MS16 are a perfect choice for this application.
If you own a mixing console, you can do the following: connect
a stereo input of the mixing console to the PHONES-connector
and the active monitors to the control room outputs of the mixing
console.
Application examples
3. Mid 4. Mid/Bridge
T2 T2
3. Mid 4. Mid/Bridge
iAXE USB-GUITAR
Fig. 4.1: Wiring of the USB guitar
5. Bridge
none
5. Bridge
