Butterfly Valve Type-57P

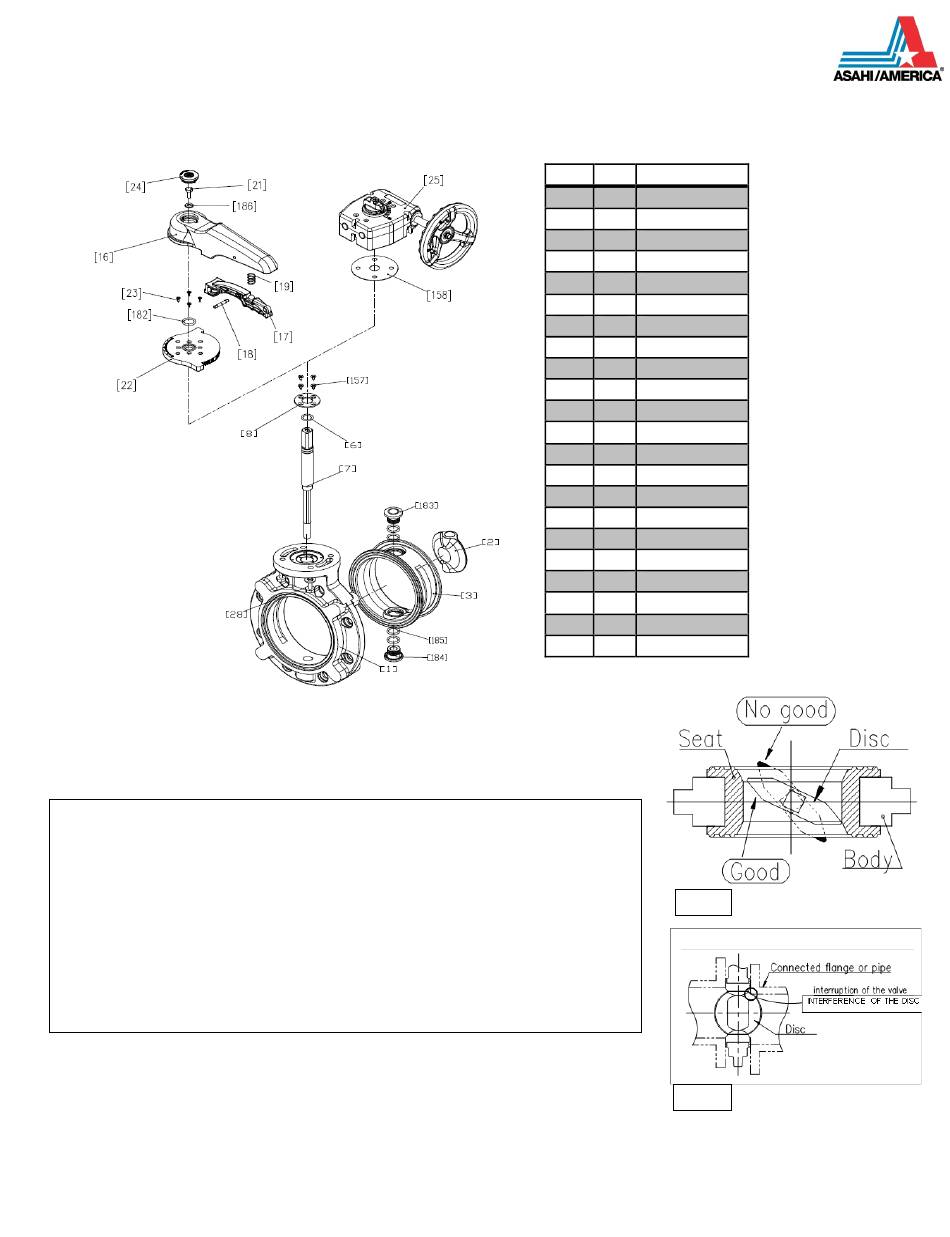

Parts Identification
Caution
1) The valve disc is set in the position indicated by the solid lines in Fig. 1 prior to
shipment from the factory. If the valve is opened or closed after unpacking, it
must be reset in this position before installation. Failure to do so may result in
damage to the surface of the valve seat during handling and installation.
2) The valve must not be dropped or come in contact with other objects, as the
sealing surfaces of the disc and or valve seat may be damaged.
3) Care must be used during piping installation to ensure that pipe or flanges are
properly aligned so that the valve disc does not come in contact with them.
Misalignment as shown in Fig. 2 will result in damage to the valve.
4) The installed valve must never be opened or closed when foreign matter such
as sand is present in the pipeline.
Butterfly_Valve_Type57P_Install
Item
Qty
1
1
2
1
3
1
6
1
7
1
8
1
16
1
17
1
18
1
19
1
21
1
22
1
23
4
24
1
25
1
28
4
157
4
158
1
183
1
184
1
185
4
186
1
Rev. B
Description
Body
Disc
Seat
O-ring ( C )
Stem
Stem Retainer
Handle
Handle Lever
Pin
Spring
Bolt
Indicator Plate
Screw
Cap
Plasgear™
Bolt
Screw
Gasket
Seat Bushing
Seat Bushing
O-ring
Washer
Fig. 1
Fig. 2
Advertisement
Table of Contents
Related Manuals for Asahi/America 57P
Summary of Contents for Asahi/America 57P
- Page 1 Butterfly Valve Type-57P Parts Identification Item Description Body Disc Seat O-ring ( C ) Stem Stem Retainer Handle Handle Lever Spring Bolt Indicator Plate Screw Plasgear™ Bolt Screw Gasket Seat Bushing Seat Bushing O-ring Washer Installation Procedure Caution 1) The valve disc is set in the position indicated by the solid lines in Fig. 1 prior to shipment from the factory.
- Page 2 Butterfly Valve Type-57P Installation Procedure To avoid interference the piping ID must be equal to or larger than the D dimension shown in the following chart. If Pipe interference is evident spacers or chamfering of the pipe or fitting is required. Fig. 3...
- Page 3 Butterfly Valve Type-57P Installation Procedure for Handle Install the handle on the valve stem. Set the direction to correspond with the indication line at the top of the stem, which should agree with the disc position. 1) Secure the handle at the top of the stem with the enclosed bolt and washer using a socket wrench.
- Page 4 Make sure to properly dispose of used valves. (Poisonous gas is generated when burned improperly) Caution: Do not attempt to repair or replace parts while valve is under pressure. Refer to Asahi/America Type-57P Operation and Maintenance manual for Disassembly/Assembly or valve repair General Instructions for Transportation, Unpacking and Storage...
