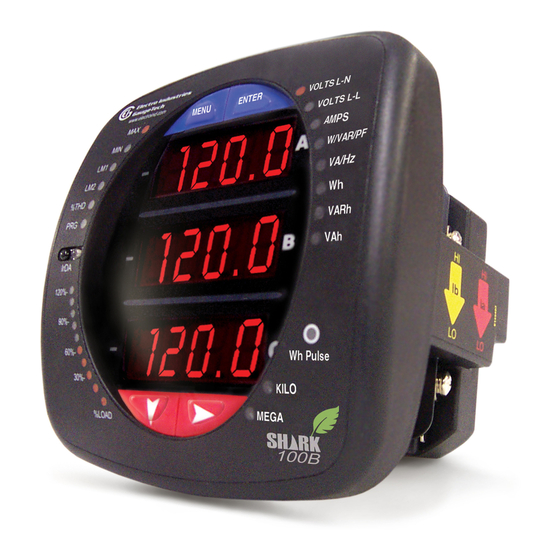

Electro Industries/GaugeTech Shark 100B Quick Start Manual

CAUTION! Installation of the Shark® 100B meter must be performed only by qualified personnel who follow
standard safety precautions during all procedures. Those personnel should have appropriate training and
experience with high voltage devices. Appropriate safety gloves, safety glasses and protective clothing are
recommended.
During normal operation of the Shark® meter, dangerous voltages flow through many parts of the unit, includ-
ing: Terminals and any connected CTs (Current Transformers) and PTs (Potential Transformers), all I/O Modules
and their circuits. All Primary and Secondary circuits can, at times, produce lethal voltages and currents. Avoid
contact with any current-carrying surfaces.
Do not use the meter or any I/O device for primary protection or in an energy-limiting capacity. The meter can
only be used as secondary protection.
IMPORTANT! Refer to your meter's Installation and Operation Manual for additional safety warnings before
performing installation, wiring, or maintenance of your meter. See the link to the manual, below.
NOTE: This Quickstart Guide gives basic installation, wiring, and programming instructions.For additional meter operation
and programming information, refer to your meter's Installation and Operation Manual and the Communicator PQA
MeterManagerPQA , and EnergyPQA.com
TM
User Manual:
https://www.electroind.com/products/shark-100b-bacnet-ip-communicating-multifunction-meter/
From the webpage, click Technical Documents>User Manual.
Software Manual:
https://www.electroind.com/products/communicatorpqa-software-application-5/
From the webpage, click Technical Documents>User Manual.
CommunicatorPQA Setup Software:
TM
https://www.electroind.com/products/communicatorpqa-software-application-5/
From the webpage, click Download ComPQA Pro. To get a Professional license for the software, email sales@elec-
troind.com or call 516-334-0870.
All EIG's metering and software products' literature can be accessed from:
https://www.electroind.com/all-products/
For software and metering integration, EIG's Technical Support Engineers are available on an hourly or daily basis to help
with typical commissioning assistance, which includes:
• Verifying meter installation and wiring.
• Verifying proper system integration.
• Working with 3rd parties to ensure cross compatibility.
• Advising users on best practices for optimal implementation.
You can reach Technical Support from 8 a.m. to 8 p.m. EST, Monday-Friday, at 516-334-0870.
Electro Industries/GaugeTech
Powered by Innovation™
Shark® 100B Meter Quickstart Guide
Software User Manual on EIG's website:
TM
™
#
Doc E145752
Shark® 100B Quickstart
V.1.05
,
TM
QS - 1
