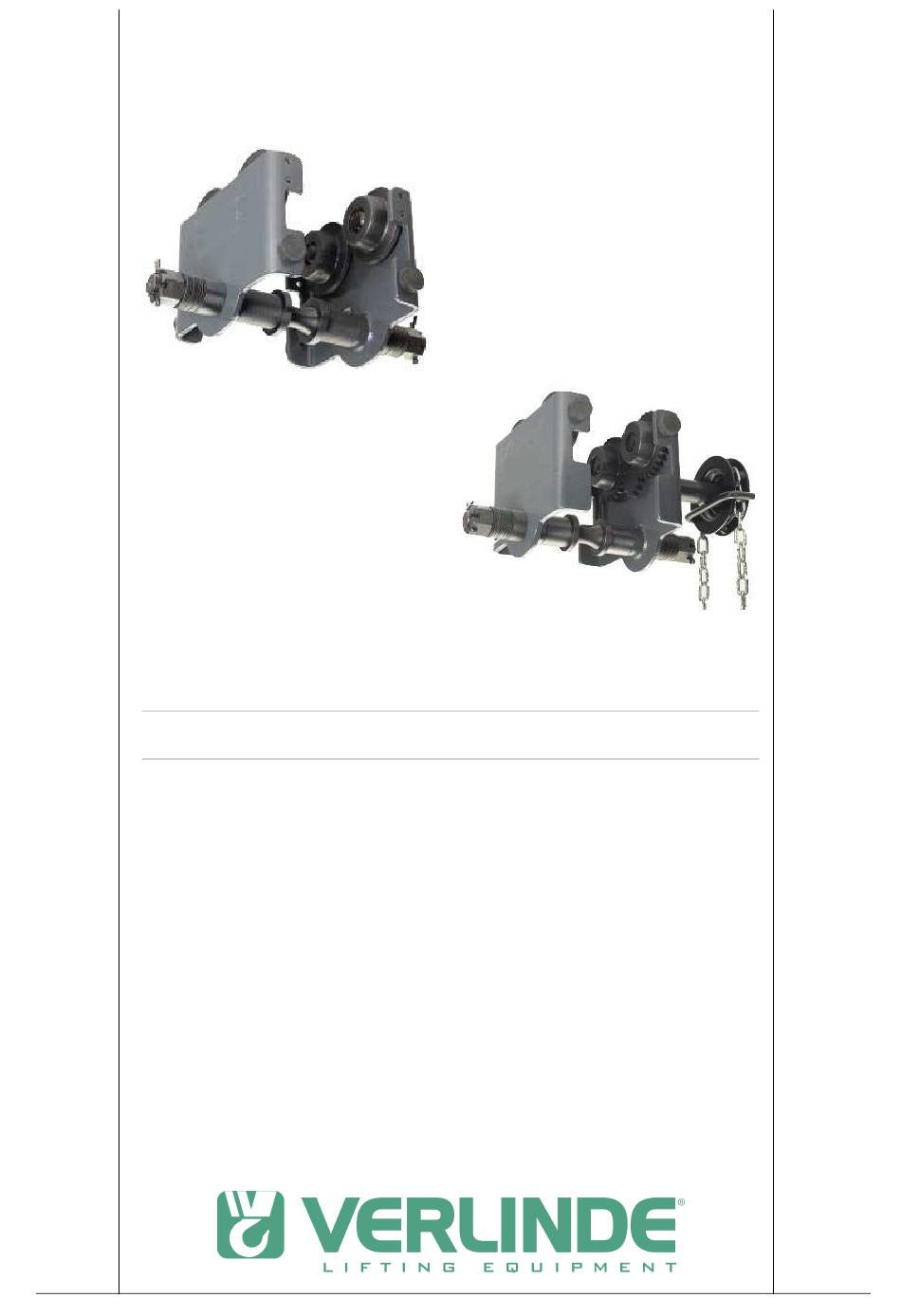

Page 1: Chdd
- - - - CHDD CHDD CHDD CHDD English DOCKHVBLA4-0.ORD 02/2010 VERLINDE reserves the right to alter or amend the above information without notice. -
Page 2: Table Of Contents
1.5.2 Characteristics – Dimensions ..................7 Setting of the axle "no rock" ....................11 Adjustment of the flanges ....................12 Assembly on the track ....................... 13 02/2010 VERLINDE reserves the right to alter or amend the above information without notice. -
Page 3: Manual Trolleys
* The guarantee does not apply to wearing parts defined by the constructor, see the following list: • Travelling chain, 02/2010 VERLINDE reserves the right to alter or amend the above information without notice. -
Page 4: What Not To Do
Make sure that the safety rules are followed (harness, clearance of work areas, posting up of instructions to be followed in the area...). Use the trolley between –10°C and + 50°C. 02/2010 VERLINDE reserves the right to alter or amend the above information without notice. -
Page 5: General
Any use contrary to our instructions may be dangerous. In this case, the manufacturer will not accept any liability. Do not use the machine without having read and understood the whole of the instruction manual. 02/2010 VERLINDE reserves the right to alter or amend the above information without notice. - Page 6 Install the trolley on the profile, by the end • Fit the travel limit stops (not provided) at the end of the runway. • Check that all the nuts are correctly tightened. 02/2010 VERLINDE reserves the right to alter or amend the above information without notice.
-

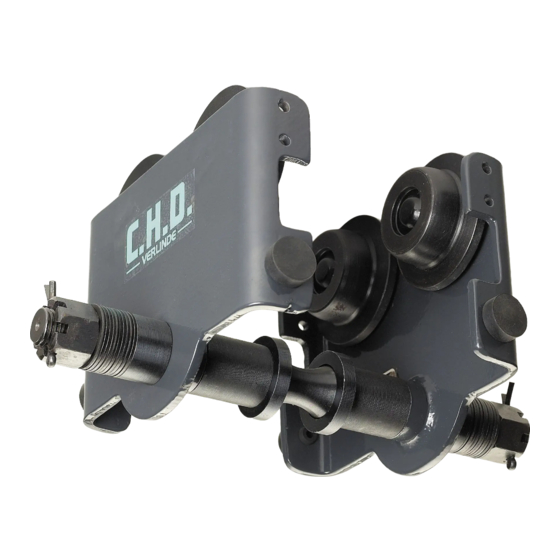

Page 7: Presentation
4 rollers mounted on ball bearings with detachable axles and rolling rims profiled to roll on any type of iron monorail, • 1 cross-bar for hook or coupling, in steel, ensure the bracing of the assembly. 1.5.2 Characteristics – Dimensions 02/2010 VERLINDE reserves the right to alter or amend the above information without notice. - Page 8 124 - 202 188 - 310 12500 124 - 202 188 - 310 16000 136 - 202 188 - 310 20000 136 - 202 188 - 310 02/2010 VERLINDE reserves the right to alter or amend the above information without notice.
- Page 9 124 - 202 188 - 310 12500 124 - 202 188 - 310 16000 136 - 202 188 - 310 20000 136 - 202 188 - 310 02/2010 VERLINDE reserves the right to alter or amend the above information without notice.
- Page 10 5 x 23.7 x 18 16000 5 x 23.7 x 18 5 x 23.7 x 18 20000 5 x 23.7 x 18 5 x 23.7 x 18 02/2010 VERLINDE reserves the right to alter or amend the above information without notice.
-
Page 11: Setting Of The Axle "No Rock
The dimension "H" between the lower face of the beam and the upper line of the axle is 1 mm. This value can be adjusted to get the best operation. 02/2010 VERLINDE reserves the right to alter or amend the above information without notice. -
Page 12: Adjustment Of The Flanges
Adjustment of the flanges Adjustment of the flanges Adjustment of the flanges Trolley adjustment Nut (5) Sleeves (1) Suspension axle (3) Washers (2) Flanges (4) Pin (6) 02/2010 VERLINDE reserves the right to alter or amend the above information without notice. -
Page 13: Assembly On The Track
In this case remove the nuts on one side of the trolley and move the flanges apart. Reassemble all the components and make sure that dimension C is correct. 02/2010 VERLINDE reserves the right to alter or amend the above information without notice. - Page 14 - - - - Caution: Make sure that the suspension pin (3) is centred on the track 02/2010 VERLINDE reserves the right to alter or amend the above information without notice.
