the t.bone Lucan System CC 200 RC Quick Start Manual

Lucan System CC 200 RC
Safety instructions
Intended use
This device is used to convert acoustic signals into electrical ones. Any other use or
use under other operating conditions is considered to be improper and may result in
personal injury or property damage. No liability will be assumed for damages result-
ing from improper use.
Danger for children
Ensure that plastic bags, packaging, etc. are disposed of properly and are
not within reach of babies and young children. Choking hazard! Ensure
that children do not detach any small parts (e.g. knobs or the like) from the
unit. They could swallow the pieces and choke! Never let unattended chil-
dren use electrical devices.
Features
• Condenser Instrument microphone
• Easy installation with different instrument holders for many different instruments
(not included)
• Flexible gooseneck for easy alignment on the instrument Incl. foam windscreen
Main product
Technical specifications
Directivity:
Frequency response:
Sensitivity:
Max SPL:
Signal-to-noise ratio:
For the transport and protective packaging, environmentally friendly materials
have been chosen that can be supplied to normal recycling. Ensure that plastic
bags, packaging, etc. are properly disposed of. Do not just dispose of these ma-
terials with your normal household waste, but make sure that they are collected
for recycling. Please follow the notes and markings on the packaging.
Thomann GmbH • Hans-Thomann-Straße 1 • 96138 Burgebrach • www.thomann.de • info@thomann.de

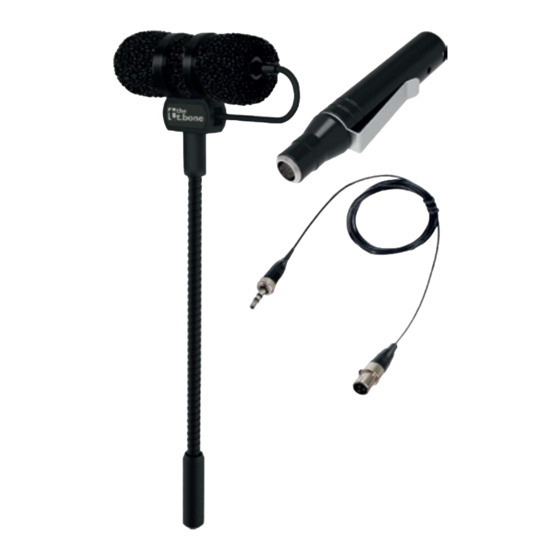

Microphone, foam windscreen, detachable cable
with screw contact, phantom power adapter
and hard case
Cardioid
30 – 20.000 Hz
-38 dB ±2 dB
152 dB
71 dB
Quick start guide
This manual contains important information on the safe operation of the device.
Read and follow the safety advice and instructions given. Retain the manual for
future reference. If you pass the device on to others please include this manual.
Where to use the product
Never use the product
• in direct sunlight
• in conditions of extreme temperature or humidity
• in extremely dusty or dirty areas
• at locations where the unit can become wet
• near magnetic fields
General handling
• To prevent damage, never use force when operating the switches and controls.
• Never immerse the appliance in water. Just wipe it with a clean dry cloth. Do not use
liquid cleaners such as benzene, thinners or flammable cleaning agents.
Keep foreign substances from the unit!
Keep the device away from containers with liquids. Should any liquid get into the unit,
this could lead to its destruction or fire. Be sure not to let any metal objects into the unit.
• Detachable cable with screw contact
• 3-pin mini XLR connector for operation with t.bone wireless systems (also suita-
ble for Sirus and AKG wireless systems)
• Delivery including phantom power adapter (phantom power required for opera-
tion) and hard case (with space for one of the optional holders)
Impedance:
Distortion:
Gooseneck length:
Cable length:
Hardcase dimensions (L × W × H):
This product is subject to the European Waste Electrical and Electronic Equip-
ment Directive (WEEE) in its currently valid version. Do not dispose of your old
device with your normal household waste. Dispose of this product through an
approved waste disposal firm or through your local waste facility. Comply with
the rules and regulations that apply in your country. If in doubt, consult your lo-
cal waste disposal facility.
100 Ω
<1 %
120 mm
approx. 2 m
26 × 13 × 7 cm
DocID: 500229_22.10.2020
EN
