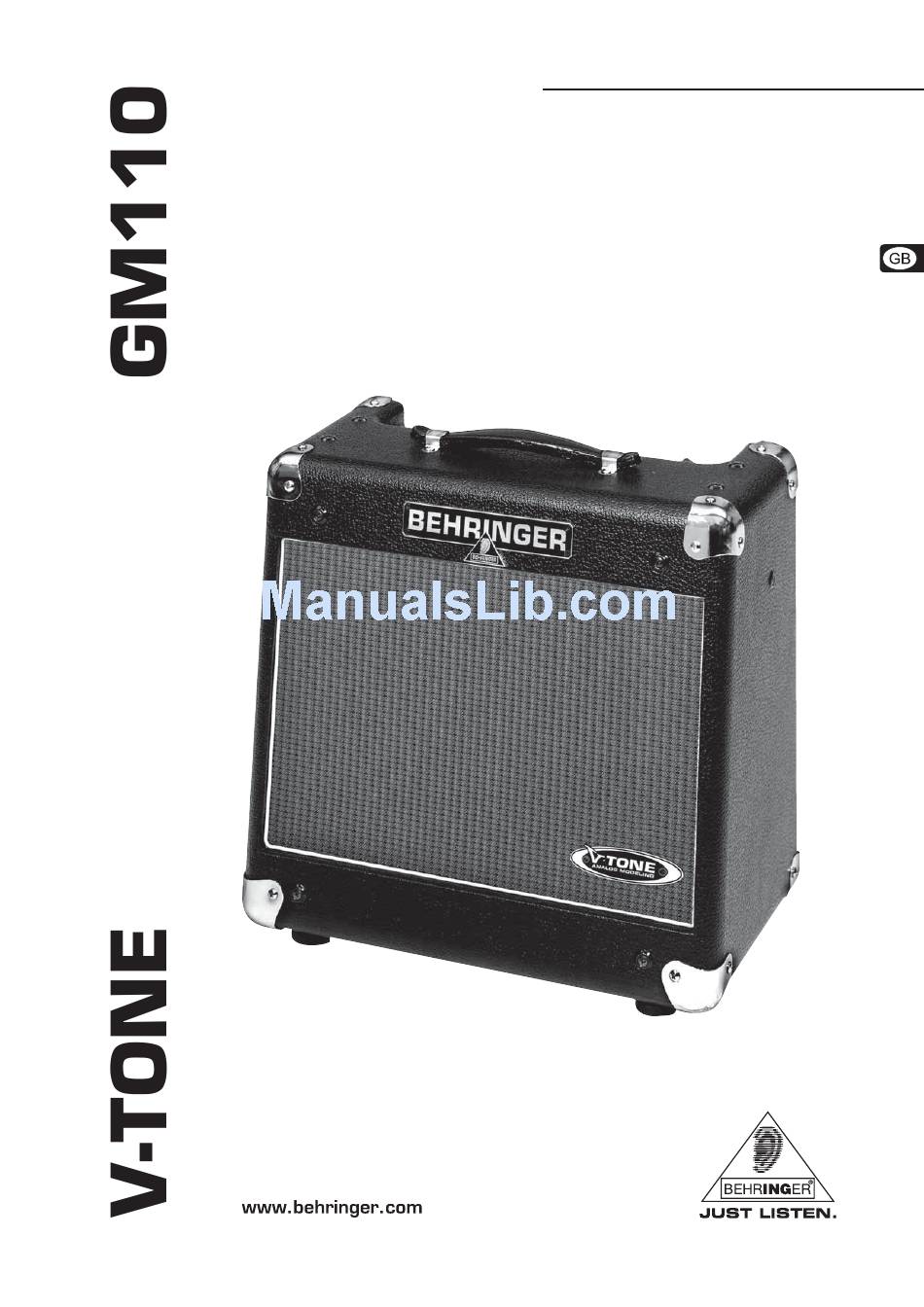

- Page 1 User’s Manual Version 1.4 May 2006...
-
Page 2: Important Safety Precautions
V-TONE GM110 IMPORTANT SAFETY PRECAUTIONS CAUTION: To reduce the risk of electric shock, do not remove the top cover (or the rear section). No user serviceable parts inside; refer servicing to qualified personnel. WARNING: To reduce the risk of fire or electric shock, do not expose this appliance to rain and moisture. - Page 3 Balanced direct out with XLR connector and ground lift for direct recording and live applications Insert facility for external effects devices (rack effects, stomp boxes, wah-wah pedals, etc.) High-quality components and exceptionally rugged construction ensure long life Conceived and designed by BEHRINGER Germany * German Patent No.: 100 15 833 V-TONE GM110...
-
Page 4: Table Of Contents
5. SPECIFICATIONS ... 8 7. WARRANTY ... 9 1. INTRODUCTION Thank you for purchasing the V-TONE GM110. The GM110 is a modern Guitar Workstation that sets new standards in practice amp engineering. When developing the GM110, our primary objective was to... -
Page 5: The Design Concept
The operational amplifiers employed by BEHRINGER and used in the V-TONE GM110 are exceptional: they boast extreme linearity and very low distortion characteristics. To complement this, the choice of components includes low-tolerance resistors and capacitors, high-quality potentiometers and switches, and several other carefully selected elements. -
Page 6: Control Elements
The HIGH control governs the upper frequency range. With the MASTER control, you determine the overall and headphone volume of your V-TONE GM110. It should be set fully to the left when you operate the POWER switch or disconnect the instrument cable from the guitar or amp. -
Page 7: Wiring Tips
Fig. 3.1: Standard set-up for recording with the V-TONE GM110 To use your V-TONE GM110 for rehearsals, in the studio or on stage, please wire up the unit as shown in fig. 2.1. Of course, you can also use a wah-wah or other pedal effect instead of the external 19" effects unit. Connecting the headphones will mute the built- in speaker. -
Page 8: Audio Connections
V-TONE GM110 4. AUDIO CONNECTIONS The BEHRINGER V-TONE GM110 is fitted with audio inputs and outputs in the form of 1/4" mono jacks. The exceptions to this are the headphones output and the D.I. OUT. Please ensure that only qualified personnel install and operate the device. -
Page 9: Warranty
Their use neither constitutes a claim of the trademarks by BEHRINGER nor affiliation of the trademark owners with BEHRINGER. BEHRINGER accepts no liability for any loss which may be suffered by any person who relies either wholly or in part upon any description, photograph or statement contained herein.
