Revision: 2.3
Date: 10/30/20
RV-12iS

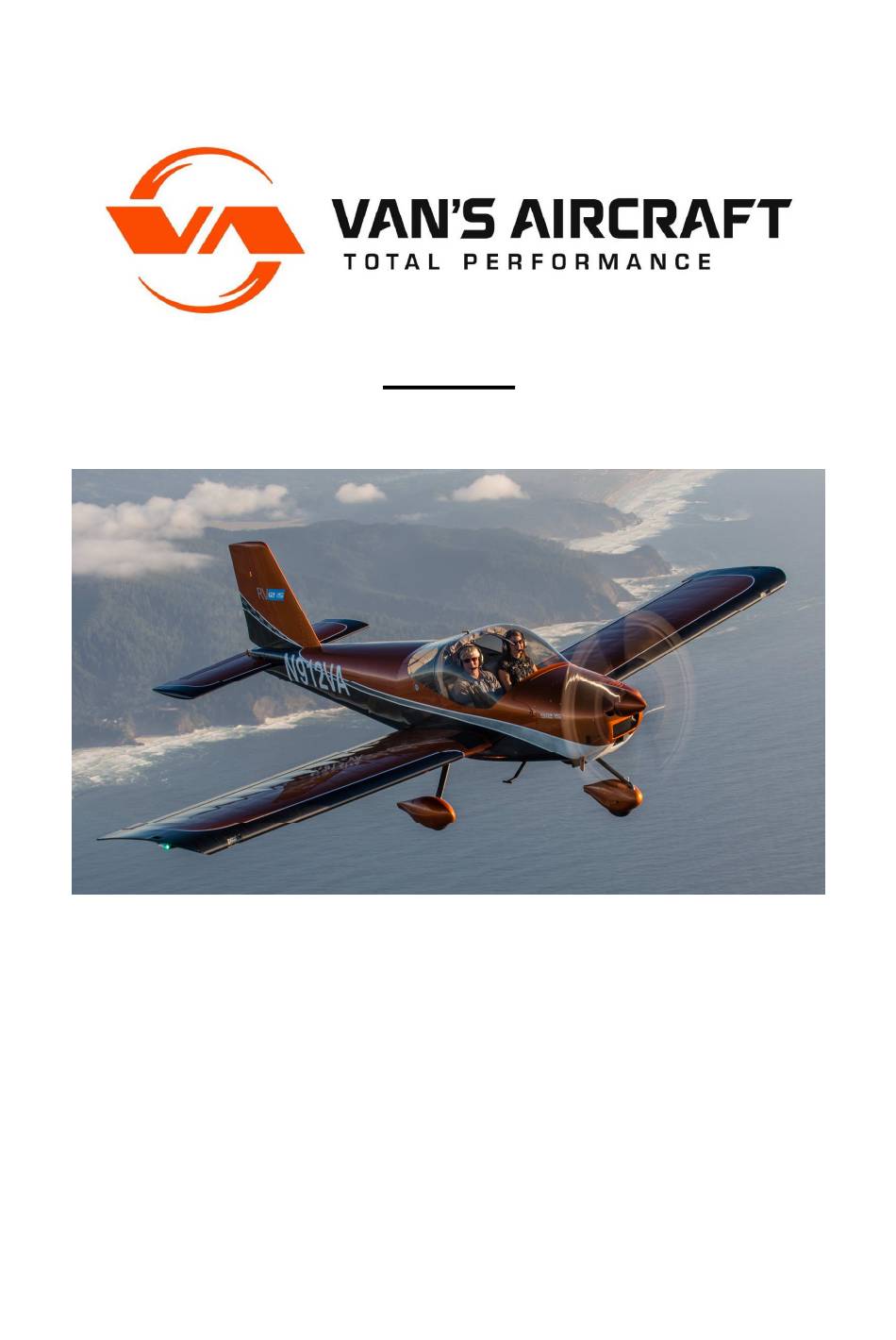

PRODUCTION ACCEPTANCE PROCEDURES
AIRCRAFT SERIAL NUMBER: _______________
ASTM F 3035-13 states that the manufacturer (Van's Aircraft) shall maintain a Quality Assurance
Record (QAR) for each LSA produced. The QAR shall consist of (among other records)
"Applicable final inspection records, check, and test documentation from the production
acceptance procedures"
Van's Aircraft
14401 Keil Rd. NE
Aurora, OR 97002
U.S.A.
i
