8. DEVICE OVERVIEW
1 2 3 4 5
18

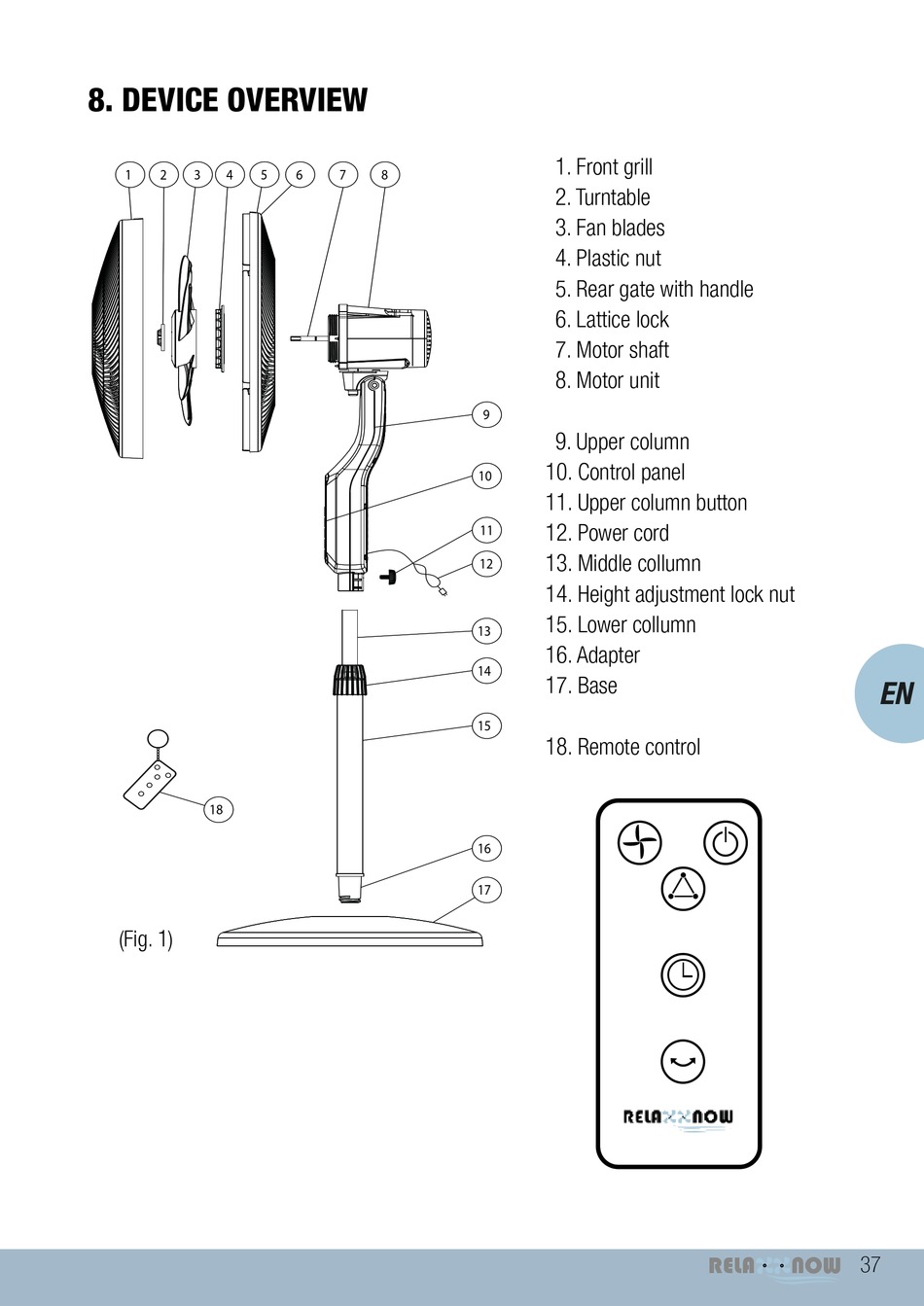

(Fig. 1)
6 7 8
1. Front grill
2. Turntable
3. Fan blades
4. Plastic nut
5. Rear gate with handle
6. Lattice lock
7. Motor shaft
8. Motor unit
9
9. Upper column
10. Control panel
10
11. Upper column button
12. Power cord
11
13. Middle collumn
12
14. Height adjustment lock nut
15. Lower collumn
13
16. Adapter
14
17. Base
15
18. Remote control
16
17
