R- N E T P R O G R A M M I N G
FIELD REFERENCE GUIDE
Programming Instructions
for the
M270 R
A
C
EMOTE
TTENDANT
ONTROL
and
R-NET OMNI C
ONTROL
(F
S
D
)
OR
PECIALTY
EVICES
TRD0420 REV A

Advertisement

loading
Need help?

Need help?

Do you have a question about the M270 and is the answer not in the manual?

Questions and answers

Related Manuals for Motion Concepts M270

Summary of Contents for Motion Concepts M270

  • Page 1 R- N E T P R O G R A M M I N G FIELD REFERENCE GUIDE Programming Instructions for the M270 R EMOTE TTENDANT ONTROL R-NET OMNI C ONTROL PECIALTY EVICES TRD0420 REV A...
  • Page 2 This manual may not be reproduced or reprinted either partly or completely without previous written consent from Motion Concepts or its statutory representatives. This manual is compiled from the latest specifications and product information available at the time of publication.
  • Page 3 Service Manual. The symbols below are used throughout all Motion Concepts’ manuals to identify warnings, cautions and important notes. It is very important for you to read and understand them completely.

  • Page 4: Standard Mode

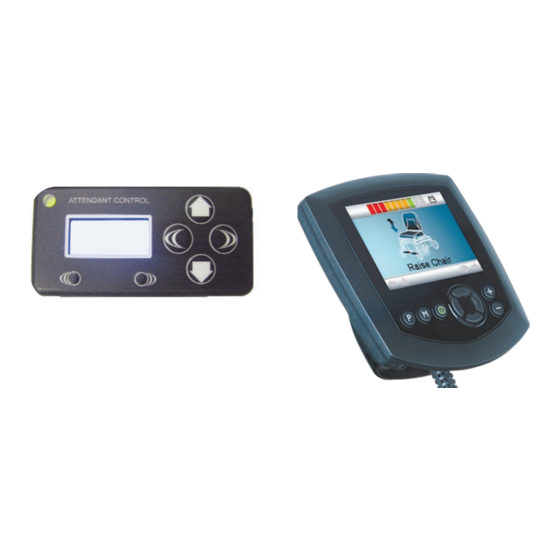

    - 4 - Up/Down Arrows w Standard Mode: Operate Motor Function w Program Mode: Alter Program Setting Indicator Screen Display Left/Right Arrows w Standard Mode: SelectMotor Function w Program Mode: Scroll Program Options Exit/Back Select/Save Button Button STANDARD MODE: In Standard Mode the remote operates as an attendant control box using the Left/Right arrows to cycle through the available motor functions on the power positioning system (PPS), and the Up/Down arrows to operate the selected motor function.
  • Page 5 - 5 - M270 - STANDARD (ATTENDANT) MODE In Standard Mode the remote operates as an attendant control box using the Left/Right arrows to cycle through the available motor functions on the power positioning system (PPS), and the Up/Down arrows to operate the selected motor function.

  • Page 6: Programming Options

    - 6 - M270 - PROGRAM (TECHNICAL SERVICE) MODE WARNING! Prior to any programming, please ensure you read and understand all instructions. Never exceed the recommended safety limits where applicable. If you have any questions or concerns with any programming options, please contact our Technical Service Dept for assistance.
  • Page 7 - 7 - 3. Use the Up/Down arrows (4) to scroll through and select the motor function you wish to assign to the switch. Images i - iii illustrate the options available to assign the Tilt function to the SW1 switch position). iii.
  • Page 8 - 8 - 2.4 SETTING INDIVIDUAL ACTUATOR FUNCTIONS ON/OFF (Set Actuator): The individual actuator motor functions may be turned on and off as needed to operate the positioning system. NOTE: in Standard Mode the remote attendant control will only display the actuator functions that have been turned ‘ON’...
  • Page 9 WARNING! Risk of system damage, personal injury or death The angle at which limits are set is critical to the safe operation of the power positioning system. Motion Concepts will not be liable for any injuries or damage sustained when adjustments are made beyond the factory recommended settings.
  • Page 10 Improper adjustment may cause damage to the actuator and/or the positioning system. Always contact Motion Concepts Technical Service Dept. prior to making any current limit adjustment. IMPORTANT! When programming, the upper line of the screen display will only indicate the assigned/programmed motor outputs (i.e.
  • Page 11 Exit/Back 2.7 MISCELLANEOUS FEATURE SETTINGS (Set Config): The Configuration Settings allow several miscellaneous features to be turned On/Off via the M270 Remote. These features are factory preset according to the installed power positioning system, and do not typically Config require any further program modifications.
  • Page 12 2. The current software version will be indicated on the screen display. 3. To exit press the Exit/Back button (3) once to return to the Program Options screen. Press twice to exit program mode. M270 e.g. Software Version Version 2.1.7...
  • Page 13 - 13 - LCD Screen Display Up/Down Buttons w Seating Mode: Operate motor function w OBP Mode: Scroll through program options Navigation Left/Right Buttons w Seating Mode: Select motor function w OBP Mode: Enter/Exit program settings +/ - Buttons w Seating Mode: Adjust speed w OBP Mode:Change program setting Profile On/Off...
  • Page 14 Incorrect programming could result in an unsafe set-up of a wheelchair for a user. It is important that you read and understand all instructions provided. Please contact Motion Concepts Technical Service Department if you have any questions or concerns regarding programming of your Specialty Input Device.

  • Page 15: General Set-Up Instructions

    - 15 - 3.2 PROGRAMMING a SPECIALTY INPUT DEVICE (SID) through the OMNI CONTROL The OMNI Control is compatible with 6 different specialty input devices (SID’s): SID Type SID Setting Joystick (+ User Switch) Proportional 5 Switch (+ User Switch) Switch 3-Axis Proportional (+ User Switch) 3-Axis Proportional...
  • Page 16 - 16 - 3.2 PROGRAMMING a SPECIALTY INPUT DEVICE (SID) through the OMNI CONTROL IMPORTANT! The programming instructions and settings provided are specific to the SID indicated. Unless otherwise indicated, all OMNI default program settings should remain unchanged. 3.2.2 ASL HEAD ARRAY: Programming Instructions, 3-Axis Switch with Mode Switch: 1.
  • Page 17 - 17 - Figure 1.0 - OMNI Programming Flowchart: ASL Head Array with User (Mode) Switch OBP Menu Omni Global +/- Button ASL Head Array Sip and Puff > w/ Mode Switch Scan Speed Sleep 12V Profiled +/- Button Pr3 Pr4 Speeds Port Drive...
  • Page 18 - 18 - 3.2 PROGRAMMING a SPECIALTY INPUT DEVICE (SID) through the OMNI CONTROL 3.2.3 ASL HEAD ARRAY: Programming Instructions, 3-Axis Switch without Mode Switch: 1. From the main OBP Menu, scroll until the Omni parameter is highlighted and press the right navigation button to enter the Omni menu screen.
  • Page 19 - 19 - Figure 2.0 - OMNI Programming Flowchart: ASL Head Array without Mode Switch OBP Menu Omni Global +/- Button Sip and Puff > Scan Speed ASL Head Array Sleep 12V Profiled +/- Button Pr3 Pr4 Speeds Port Drive Controls Port 1 +/- Button...
  • Page 20 - 20 - 3.2 PROGRAMMING a SPECIALTY INPUT DEVICE (SID) through the OMNI CONTROL 3.2.4 MINI JOYSTICK: Programming Instructions, Proportional Controls (4 Quadrant) 1. From the main OBP Menu, scroll until the Omni parameter is highlighted and press the right navigation button to enter the Omni menu screen.
  • Page 21 - 21 - Figure 3.0 - OMNI Programming Flowchart: Mini Proprotional Joystick (4 Quadrant) OBP Menu Omni Global +/- Button Sip and Puff > Scan Speed Sleep 12V Mini Proportional Joystick Profiled +/- Button Pr3 Pr4 Speeds Port Drive Controls +/- Button Port 1 Latched...
  • Page 22 NOTES:...
