AUTOMATIC TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION
Selector Lever Removal/Installation
1. Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE
DISCONNECTION/CONNECTION.)
2. Perform the following procedure to remove the selector lever knob.
NOTE:
If the servicing is difficult, release the shift lock manually and shift the selector
lever to the N position.

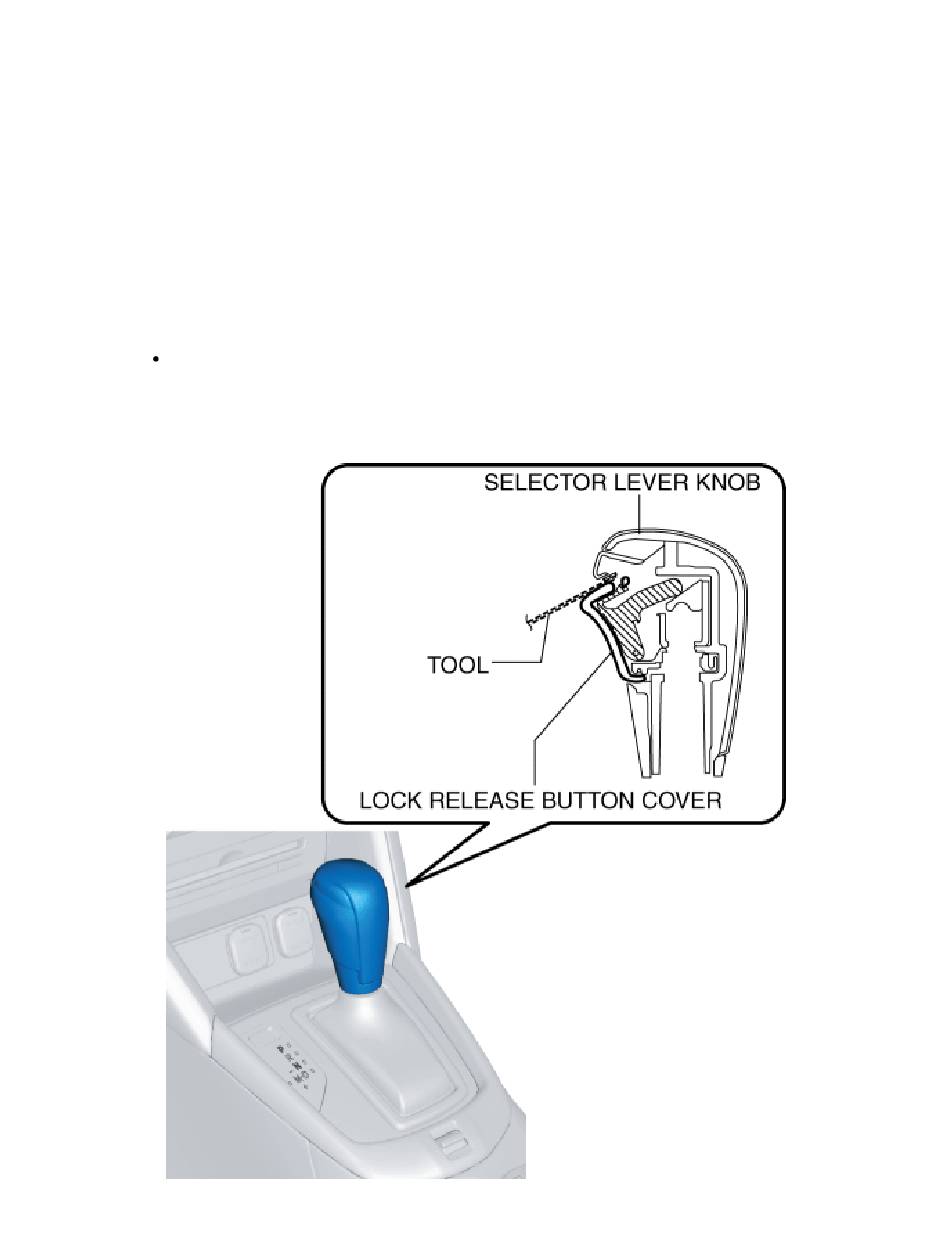

a. Insert the tool (width: 4 mm {0.2 in} or less, thickness: 1 mm {0.04 in} or
less) as shown in the figure.
b. Move the tool in the direction of arrow (1) in the figure and detach the hook. Move
the lock release button cover in the direction of arrow (2) in the figure and remove it.
