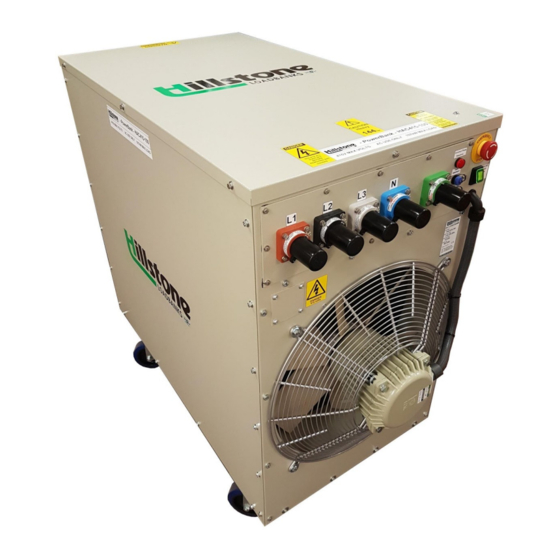

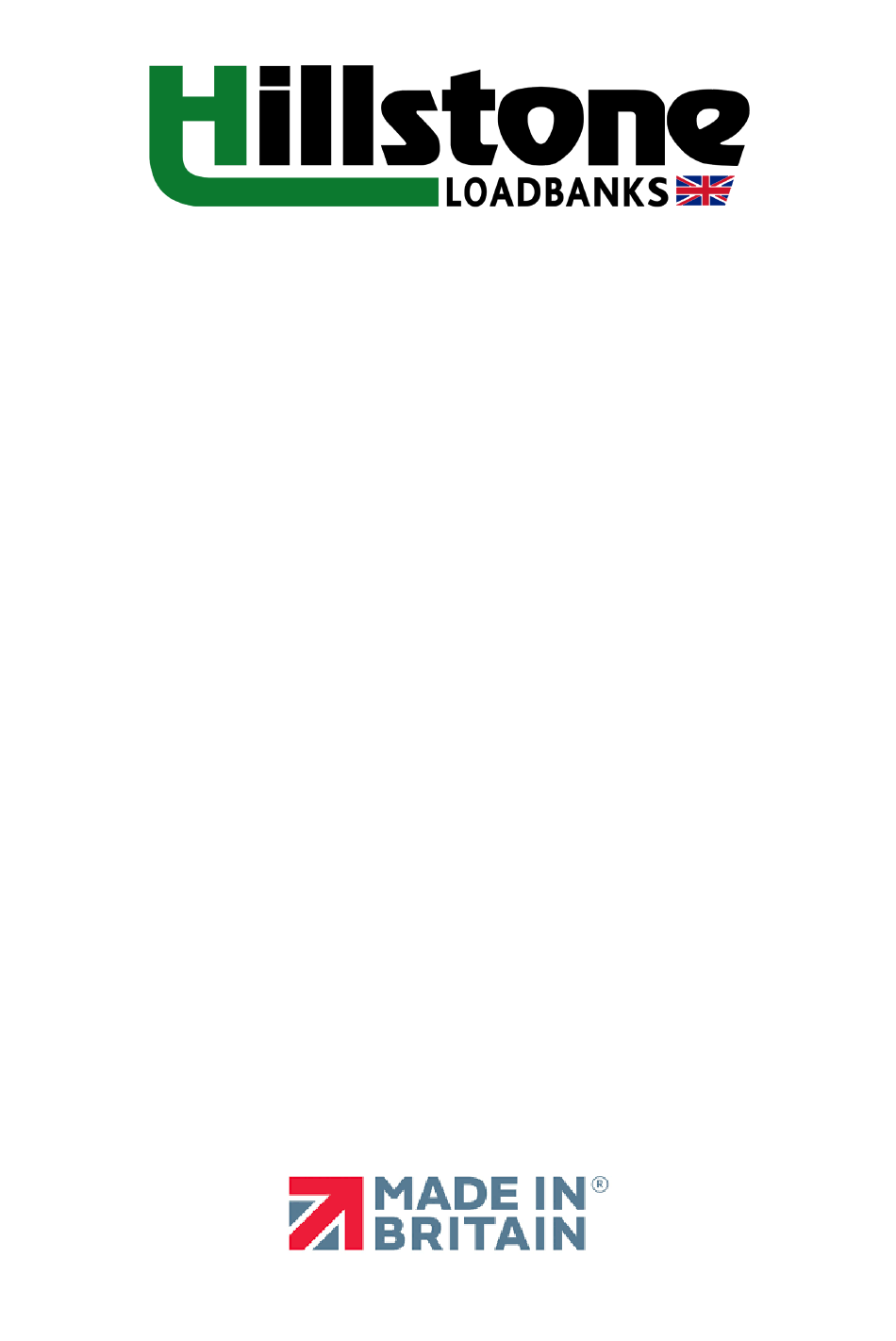

- Page 1 OPERATING MANUAL for AC LOAD BANK type HAC240/415-100 iHHC3 hand held controller, single & three phase operation, 50 Hz issue 3 ...
-
Page 2: Table Of Contents
The information contained in this document is considered correct at the time of printing and given in good faith. Hillstone Products bears no responsibility for the accuracy of the data given or any responsibility resulting from the use of the equipment. ... -
Page 3: Introduction
OMHAC415-100 INTRODUCTION The load bank HAC415-100 is designed for testing 415 volt, three phase, 50 Hz UPS or generators on a 4 wire, star, connection, plus earth. The load bank can also test 240 volt, single phase supplies. ... -
Page 4: Safety Considerations
OMHAC415-100 SAFETY CONSIDERATIONS The unit should only be operated by a competent person who is completely ● familiar with the operation and specification of the load bank. The equipment is designed for AC operation @ 50Hz only and therefore must not ●... -
Page 5: Connection Diagram For 3Phase Test
OMHAC415-100 CONNECTION DIAGRAM FOR 3PHASE TEST 5 ... -
Page 6: Single Phase Connection - Up To 33Kw
OMHAC415-100 SINGLE PHASE CONNECTION - up to 33kW 6 ... -
Page 7: Single Phase Connection - Up To 100Kw
OMHAC415-100 SINGLE PHASE CONNECTION - up to 100kW 7 ... -
Page 8: Operating Instructions
OMHAC415-100 OPERATING INSTRUCTIONS Before carrying out the following operating instructions operators should read the SAFETY CONSIDERATIONS and CONNECTION PROCEDURE Ensure all panels are in place on the load bank. Ensure all panel mounted switches are in the OFF position. -
Page 9: Controlling The Load Bank With The Ihhc3 Controller
OMHAC415-100 CONTROLLING THE LOAD BANK WITH THE iHHC3 CONTROLLER Select the appropriate load using the iHHC3 hand held controller as follows; 1. The hand held controller counts down from 7 to 0 when first powered up and displays: Number of multiple Load Banks that can be ... -
Page 10: Specification
OMHAC415-100 SPECIFICATION Type ref HAC240/415-100 Nominal voltage rating 415 V three phase 4 wire plus earth Operating voltage tolerance +6%, -10%, based on nominal 415V Nominal current rating 149 A per phase ... -
Page 11: Maintenance Procedures
OMHAC415-100 MAINTENANCE PROCEDURES The load bank should not require any special maintenance, however as with any electrical equipment periodic checks should be carried out to ensure the equipment is in a safe and satisfactory condition. ...
