Rear chassis

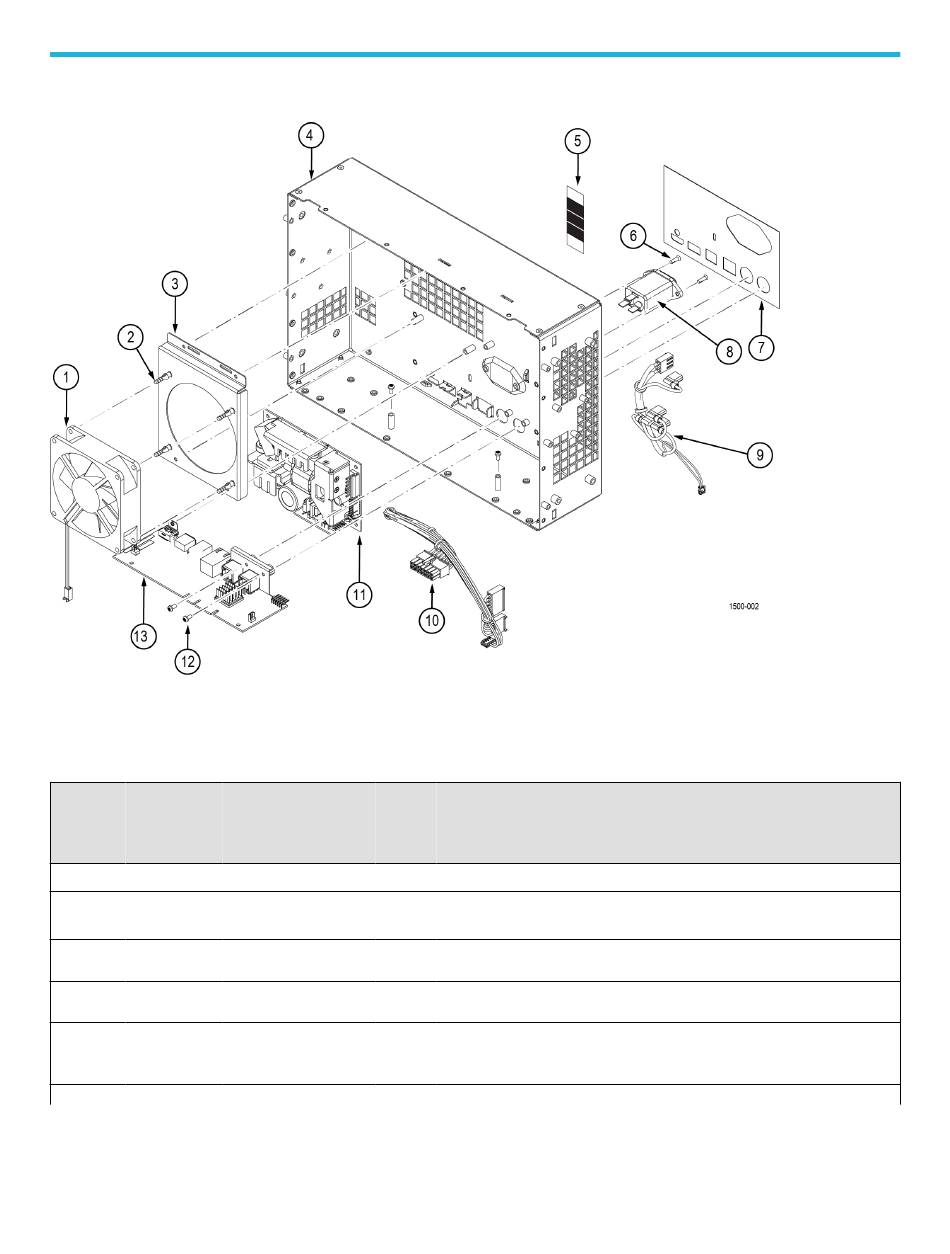

Figure 9: Rear chassis exploded view

Table 7: Rear chassis

Fig. &
index Tektronix part Serial no.
number number effective
Figure 9: Rear chassis exploded view
-1 119-8177-XX
-2 348-2082-XX
-3 407-6149-XX
-4 441-2911-XX
Table continued...
3 Series MDO Mixed Domain Oscilloscope Service Manual
Serial no.
discont'd Qty Name & description
on page 26
FAN, TUBEAXIAL; 12 VDC, 0.21 A, 2.52 W, 1.45 M^3/MIN, 3150 RPM, 33
1
DBA, 92 MM X 92 MM X 25 MM, SAFETY CONTROLLED
GROMMET, FAN MOUNT, NOISE DAMPING
4
1 BRACKET, FAN
1 CHASSIS, REAR (a new Rear I/O Label needs to be installed when
replacing the rear chassis; order separately)
