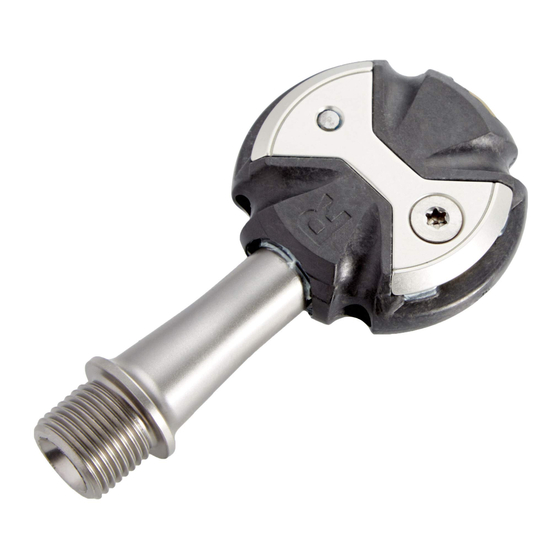

SPEEDPLAY NANOGRAM ZERO Manual

Speedplay Nanogram Pedal Disassembly - Required ONLY to replace worn or damaged parts.
Tools Needed: T-20 Torx Key, Retainer clip pliers, 6mm hex key.
Step 1. Back out the Grease-Port Screw just enough to grip with pliers and pull to remove dust cap from body. Be careful
not to damage the Grease-Port screw during the dust cap removal.
Step 2. Remove the Torx Screw (T-20 size) from the end of the spindle. To ease removal of the Torx Screw, heat the screw
with a soldering gun to 300°F to loosen the bond of the Loctite on the screw threads.
Step 3. Pull the spindle out of the Nanogram Pedal body.
Step 4. Using retainer clip pliers, remove the retainer clip from the groove in the bore of the Nanogram Pedal body.
Step 5. Push both cartridge bearings out the dust cap side of the Nanogram Pedal body. (Use the spindle with Torx Screw
partially installed as a tool to carefully push the bearings out of the Nanogram Pedal body).
CAUTION DO NOT attempt to remove the needle bearing from the Nanogram Pedal body. The needle
!
bearing is permanently bonded and cannot be removed from the Nanogram Pedal body.
Lubrication and Reassembly
Use a high quality waterproof grease on the needle bearing and use a new "O" ring (grease it too) when overhauling Nano-
gram Pedals. Any worn or damaged parts should be replaced. Reassembly is accomplished by reversing the order of the
above instructions.
Very Important - The 136 ceramic bearing MUST be re-installed with the open side of the inner nylon bearing retainer
facing toward the end of the spindle that threads into the crank. Be sure the retainer clip is fully seated in bore
groove and reapply Loctite to the Torx Screw threads when reassembling Pedal.
WARNING TIGHTEN Nanogram Titanium T-20 Spindle End Screw to maximum 3.6 Nm / 32 inch pounds.
!
WARNING TIGHTEN Nanogram Titanium T-15 Bowtie Screws to maximum 4.5 Nm / 40 inch pounds.
!
WARNING
Nanogram Titanium T-15 bowtie screws can ONLY be used with Nanogram Zero pedals. These
!
screws are NOT compatible with regular Zero series, X series or Light Action series pedals. These titanium bowtie
screws can be differentiated from the regular steel bowtie screws in that the threads are on only half the length of
the screw shaft.

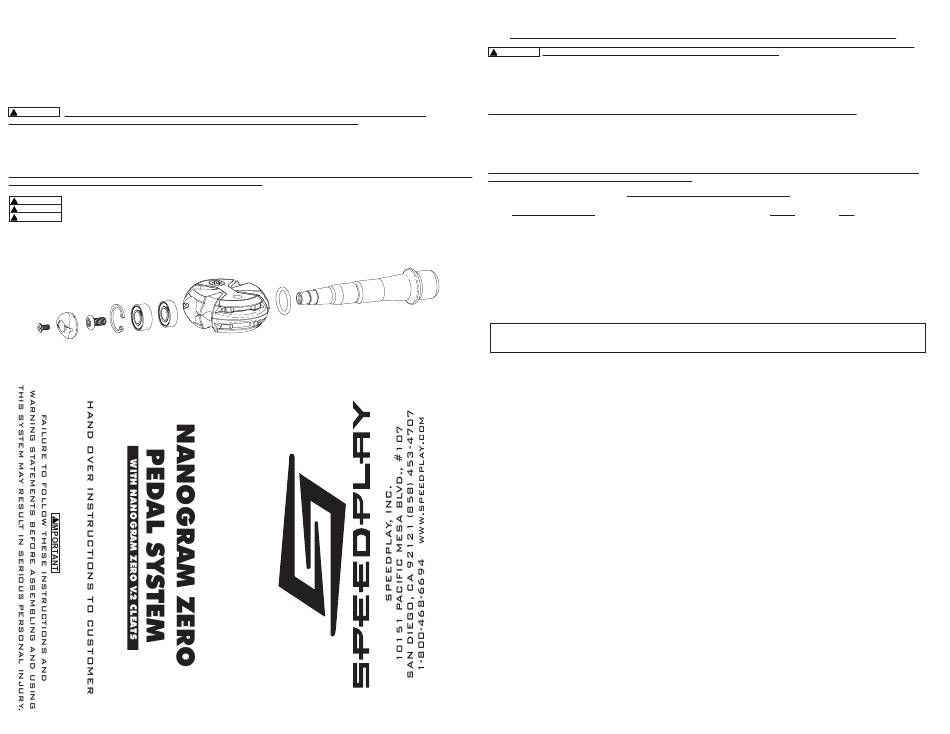

137
Retaining
Bearing
Ring
Dust
Cap
Spindle 136
Grease
Screw Ceramic
Port
O-Ring
Spindle*
*Nanogram Pedals have a rider
weight limit of 185lbs.
Pedal Body
Instructions for Quick and Easy Pedal Bearing Lubrication Using the Built-in Grease Port
Note:DO NOT try to remove the needle bearing from the Nanogram Pedal body. The needle bearing is
permanently bonded in the Nanogram Pedal body and cannot be removed without damaging components.
CAUTION Use Grease Only! Never use oil or spray lubes on bearings.
!
1. Remove the Grease-Port Screw with a #1 Phillips screw driver.
2. Insert Speedplay syringe grease injector into the pedal's grease-port hole.
3. Pump slowly while also turning the Nanogram Pedal body slowly until clean grease is visible at spindle end of Pedal
body.
4. Wipe off excess grease and reinstall Grease-Port Screw. Note: Over-tightening the Grease-Port Screw may strip the
threads of the dust cap.
NOTE: Damage due to the lack of lubrication is not covered by Speedplay's warranty policy.
Speedplay recommends that the Nanogram Pedal bearings be greased at least every 500 miles or every three
months. Pedals should always be lubricated immediately after riding in wet, rainy or unusually dusty conditions.
Speedplay Grease Guns (Part # 13175) and replacement 3oz. Grease Tube (Part # 13560) are available from Speed-
play retailers or call Speedplay at 1-800-468-6694 (PST).
Speedplay Nanogram Race-Day-Only Pedal Systems are ultra high-performance products. Like all high-performance
products, Nanogram Pedal Systems require special care and maintenance in order to function as intended.
IMPORTANT: Scuffing and wear to the beveled alloy edges of the pedals from the cleat springs during entry
and general use is normal and should be expected.
Screw Torque Settings Table
Screw Description
Standard Steel V.2 Cleat Fastening Screw Torque
Nanogram Alloy V.2 Cleat Fastening Screw Torque
Standard Steel 5mm Mounting Screw Torque
Nanogram Alloy 5mm Mounting Screw Torque
Nanogram Titanium T-20 Spindle End Screw Torque
Nanogram Titanium T-15 Bowtie Screw
Nanogram 6mm Hex Titanium Spindle-to-Crank Tightening Torque Range
WARNING: When using the Nanogram lightweight aluminum screws, Speedplay recommends the installation be performed
by a professional bicycle mechanic using proper torque measuring tools. If you have questions, please call Speedplay at
1-800-468-6694 (PST).
LIMITED (TWO YEAR) WARRANTY
This Speedplay product is warranted under normal usage against defects in workmanship and materials to the original
purchaser for a period of two (2) years from the date of purchase free of charge provided the claim is made within thirty
(30) days of the discovery of the defect and the following condition is met: The purchaser must obtain advance autho-
rization by calling Speedplay at 800-468-6694 toll free or (858) 453-4707 before returning any product for warranty
inspection. A Return Authorization (RA) number will be issued and must conspicuously appear on the outside of the
product's packaging. The issuance of an RA number does not constitute acceptance of the claim. The determination
of whether the claim is covered by this warranty is within the sole discretion of Speedplay, Inc. The part(s) requiring
service or replacement must be returned to Speedplay, either by the purchaser or a Speedplay dealer. Insurance,
handling and transportation charges for service shall be borne by the person desiring service. This warranty is limited
to the repair or replacement of this product. Speedplay, at its option, will either repair or replace any defective parts.
For a warranty claim to be honored, the following information must accompany the returned product:
a) A copy of the original dated receipt or other proof of retail purchase.
b) A detailed description of the problem with the product along with the R.A. number.
c) Identification of the shoe brand and model used in conjunction with the product.
d) Estimate of product usage (in accumulated mileage).
e) Your name, street address (no P.O. boxes) and phone number(s) where you may be reached.
f) The product must be securely packaged and sent insured through a traceable shipper.
The repaired product or replacement will be returned to the purchaser or the Speedplay dealer usually within two
weeks. Product furnished as replacement will continue to be covered under this warranty until two years after the date
of original purchase.
Limits and exclusions: Not covered by warranty is damage resulting from normal wear and deterioration occurring from
use, accidents, neglect, improper assembly, misuse, abuse, lack of reasonable or proper maintenance, corrosion, any
damage resulting from causes other than defects in materials and workmanship; failure or loss by accident, alterations,
repairs improperly performed, or replacement parts improperly installed, modifications not recommended or approved
in writing by Speedplay, labor costs for removal, or compensation for inconvenience or loss of use while the product is
being repaired or replaced. This warranty also does not cover cosmetic imperfections in the surface finish, or appear-
ance of the product which were apparent or discoverable at the time of purchase, or damage during shipment of the
product.
There are no warranties which extend beyond the face hereof. All warranties implied by state law, including the implied
warranties of merchantability and fitness for a particular purpose, are expressly limited to the duration of the limited
warranty set forth above. Some states do not allow limitations on how long an implied warranty lasts, so the above lim-
itation may not apply to you. With the exception of any warranties implied by state law as hereby limited, the foregoing
express limited warranty is exclusive and in lieu of all other warranties, guarantees, agreements and similar obligations
of manufacturer or seller. Speedplay is not liable for indirect or consequential damages in connection with the use of
this product. Some states do not allow the exclusion or limitation of incidental or consequential damages, so the above
limitation or exclusion may not apply to you.
No person, independent representative, agent, distributor, dealer (including any Speedplay dealer) or company is
authorized to change, modify or extend the terms of this warranty in any manner whatsoever. This warranty gives you
specific legal rights; you may also have other rights which vary from state to state.
in lbs Nm
22 inch pounds 2.5 Nm
12 inch pounds 1.4 Nm
35 inch pounds 4.0 Nm
20 inch pounds 2.3 Nm
32 inch Pounds 3.6 Nm
40 inch pounds 4.5 Nm
100 - 125 inch pounds 11.3-14.2 Nm
Rev. 2015.07.14
