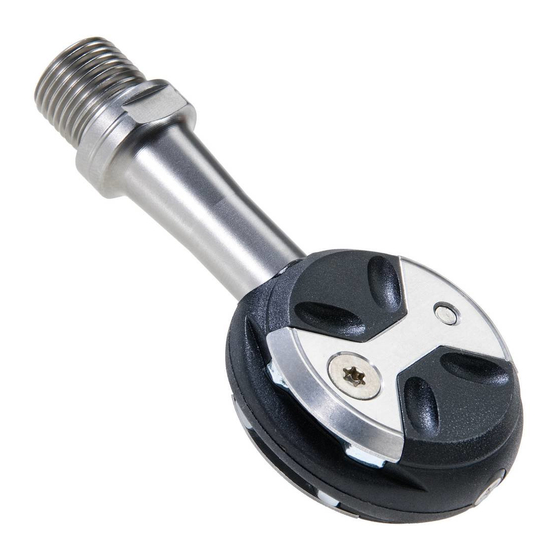

SPEEDPLAY Ultra Light Action Hand Over Instructions To Customer

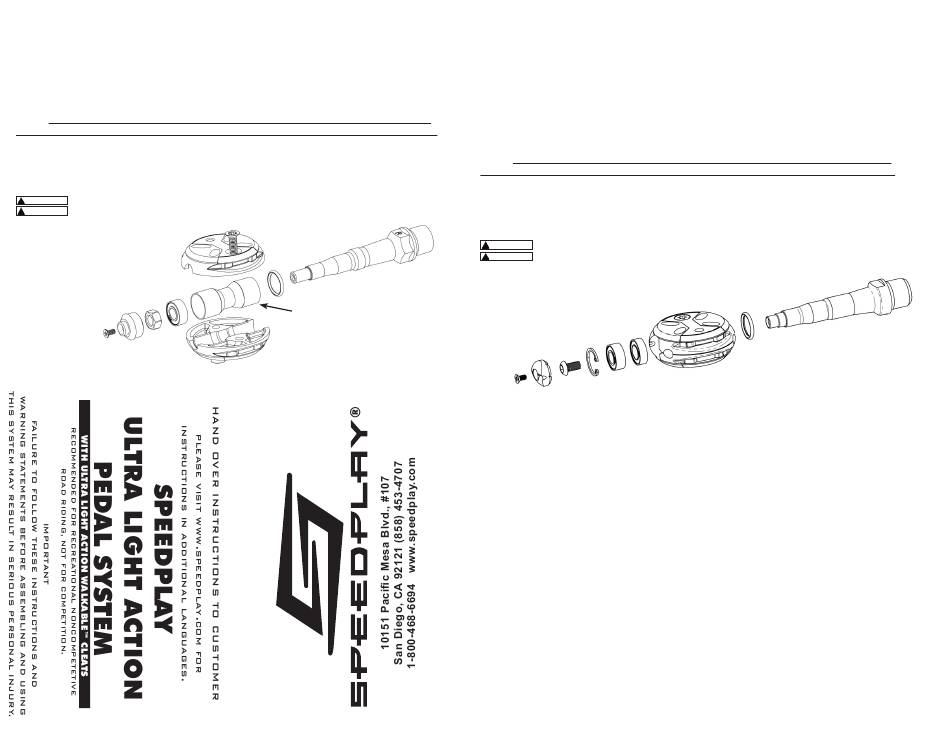

Ultra Light Action Chrome-Moly Pedal Disassembly
Tools Needed: T-15 Torx Wrench, 9mm Socket and 15mm Open-end Wrench.
Step 1. Remove the two body screws with a T-15 torx wrench.
Step 2. Separate the two halves of the body.
Step 3. Pull the alloy sleeve out of the body.
Step 4. Pull off the luber cap.
Step 5. Use a 9mm socket to remove the nut from the end of the spindle.
Step 6. Slide the alloy sleeve and "O" ring off the spindle.
Step 7. The cartridge bearing can now be carefully pushed out of the alloy sleeve from the opposite end.
NOTE: Do not try to remove the needle bearing from the alloy sleeve. The needle bearing is
permanently bonded into the sleeve and cannot be removed without damaging components.
Lubrication and Reassembly
Use a high-quality, waterproof grease on the needle bearing and use a new "O" ring (grease it too) when
overhauling Ultra Light Action Chrome-Moly Pedals. Any worn or damaged parts should be replaced.
Reassembly is accomplished by reversing the order of the above instructions.
TIGHTEN NUT SECURELY (8.5 - 9.6 Nm / 75 - 85 inch pounds).
WARNING
!
WARNING TIGHTEN T-15 BOWTIE SCREWS SECURELY (4.5 Nm / 40 inch pounds).
!
Pedal Body
Bearing
Luber
Cap
Grease
Port
Nut
Screw
O-Ring
Spindle
Alloy
Sleeve
Pedal Body
Ultra Light Action Stainless Steel and Titanium Pedal Disassembly
Tools Needed: T-20 Torx Key, Retainer clip pliers, 15mm open-end wrench.
Step 1. Back out the Grease-Port Screw just enough to grip with pliers and pull to remove dust cap from
body.
Step 2. Remove the Torx Screw (T-20 size) from the end of the spindle. To ease removal of the Torx Screw,
heat the screw with a soldering gun to 300°F to loosen the bond of the Loctite on the
screw threads.
Step 3. Pull the spindle out of the Ultra Light Action Pedal body
Step 4. Using retainer clip pliers, remove the retainer clip from the groove in the bore of the Ultra Light
Action Pedal body.
Step 5. Push the two cartridge bearings out the dust cap side of the Ultra Light Action Pedal body. (Use the
spindle with Torx Screw partially installed as a tool to carefully push the bearings out of the Ultra
Light Action Pedal body).
NOTE: Do not try to remove the needle bearing from the pedal body. The needle bearing is
permanently bonded into the body and cannot be removed without damaging components.
Lubrication and Reassembly
Use a high-quality, waterproof grease on the needle bearing and use a new "O" ring (grease it too) when
overhauling Ultra Light Action Series Pedals. Any worn or damaged parts should be replaced. Reassembly
is accomplished by reversing the order of the above instructions. Be sure retainer clip is fully seated in
bore groove and reapply Loctite to the Torx Screw threads when reassembling Pedal.
WARNING TIGHTEN T-20 SPINDLE-END SCREW SECURELY (3.6 Nm / 32 inch pounds).
!
WARNING TIGHTEN T-15 BOWTIE SCREWS SECURELY (4.5 Nm / 40 inch pounds).
!
136
Bearing
Spindle
Dust
Screw
Cap
137
Grease
Port Bearing
Retaining
Screw
Ring
LIMITED (TWO YEAR) WARRANTY
This Speedplay product is warranted under normal usage against defects in workmanship and materials to the original purchaser for a period
of two (2) years from the date of purchase free of charge provided the claim is made within thirty (30) days of the discovery of the defect and the
following condition is met: The purchaser must obtain advance authorization by calling Speedplay at 800-468-6694 toll free or (858) 453-4707
before returning any product for warranty inspection. A Return Authorization (RA) number will be issued and must conspicuously appear on the
outside of the product's packaging. The issuance of an RA number does not constitute acceptance of the claim. The determination of whether the
claim is covered by this warranty is within the sole discretion of Speedplay, Inc. The part(s) requiring service or replacement must be returned
to Speedplay, either by the purchaser or a Speedplay dealer. Insurance, handling and transportation charges for service shall be borne by the
person desiring service. This warranty is limited to the repair or replacement of this product. Speedplay, at its option, will either repair or replace
any defective parts.
For a warranty claim to be honored, the following information must accompany the returned product:
a) A copy of the original dated receipt or other proof of retail purchase.
b) A detailed description of the problem with the product along with the R.A. number.
c) Identification of the shoe brand and model used in conjunction with the product.
d) Estimate of product usage (in accumulated mileage).
e) Your name, street address (no P.O. boxes) and phone number(s) where you may be reached.
f) The product must be securely packaged and sent insured through a traceable shipper.
The repaired product or replacement will be returned to the purchaser or the Speedplay dealer usually within two weeks. Product furnished as
replacement will continue to be covered under this warranty until two years after the date of original purchase.
Limits and exclusions: Not covered by warranty is damage resulting from normal wear and deterioration occurring from use, accidents, neglect,
improper assembly, misuse, abuse, lack of reasonable or proper maintenance, corrosion, any damage resulting from causes other than defects
in materials and workmanship; failure or loss by accident, alterations, repairs improperly performed, or replacement parts improperly installed,
modifications not recommended or approved in writing by Speedplay, labor costs for removal, or compensation for inconvenience or loss of use
while the product is being repaired or replaced. This warranty also does not cover cosmetic imperfections in the surface finish, or appearance of the
product which were apparent or discoverable at the time of purchase, or damage during shipment of the product.
There are no warranties which extend beyond the face hereof. All warranties implied by state law, including the implied warranties of merchant-
ability and fitness for a particular purpose, are expressly limited to the duration of the limited warranty set forth above. Some states do not allow
limitations on how long an implied warranty lasts, so the above limitation may not apply to you. With the exception of any warranties implied by state
law as hereby limited, the foregoing express limited warranty is exclusive and in lieu of all other warranties, guarantees, agreements and similar
obligations of manufacturer or seller. Speedplay is not liable for indirect or consequential damages in connection with the use of this product. Some
states do not allow the exclusion or limitation of incidental or consequential damages, so the above limitation or exclusion may not apply to you.
No person, independent representative, agent, distributor, dealer (including any Speedplay dealer) or company is authorized to change, modify
or extend the terms of this warranty in any manner whatsoever. This warranty gives you specific legal rights; you may also have other rights which
vary from state to state.
Spindle *
O-Ring
* Pedals equipped with
Titanium spindles have
a rider weight limit
of 185 pounds.
Pedal Body
