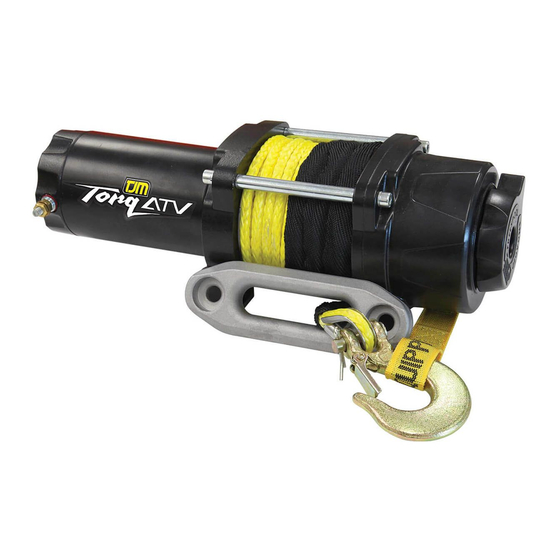

- Page 1 File: F-7406 Page 1 of 8 OPERATORS MANUAL Product: TORQ ATV WINCH 4000lb TORQ ATV Winch For further information contact T.J.M. Head Office on (07) 3865 9999. Distributors Australia wide. 28/05/2015...
-
Page 2: Safety Precautions
F-7406 File: Page 2 of 8 Product: TORQ ATV WINCH 4000lb SAFETY PRECAUTIONS Warning! Observe safety precautions for personal safety and the safety of others. Improper equipment operation may cause personal injury and equipment damage. Read the following carefully before attempting to operate your winch and keep the instructions for future reference. - Page 3 F-7406 File: Page 3 of 8 Product: TORQ ATV WINCH 4000lb Warning: The use of any other accessory or attachment other than those recommended in the instruction manual may present a risk of personal injury. Clutch Operation The clutch is operated by rotating the clutch lever clockwise or anti-clock wise.
- Page 4 F-7406 File: Page 4 of 8 Product: TORQ ATV WINCH 4000lb Check the electric wiring about every 90 days to insure good, tight connections. Spooling under Load Always ensure that wire rope passes between winch drum & mounting surface.
-
Page 5: Troubleshooting Guide
F-7406 File: Page 5 of 8 Product: TORQ ATV WINCH 4000lb Using a snatch block with a straight pull Change of direction of pull Trouble Shooting Guide Symptoms Possible Cause/s Suggested Remedy Insert switch assy firmly to the Switch assy not connected properly... - Page 6 F-7406 File: Page 6 of 8 Product: TORQ ATV WINCH 4000lb Part Breakdown List Item Part Number Description 946TQATVMTR Motor 4.6HP 12V 946TQATVDRM Drum (4000 ATV) 946TQATVTBR Tie Bar Kit (Pair) 946TQATVGEAR Gearbox 3/16” Dyneema Cable (not shown) 946TQATVSYN 1/4” Safety hook...
- Page 7 F-7406 File: Page 7 of 8 Product: TORQ ATV WINCH 4000lb Wiring Diagram for Handheld Control Wiring Diagram for Optional Extra Handle Bar Control For further information contact T.J.M. Head Office on (07) 3865 9999. Distributors Australia wide.
- Page 8 F-7406 File: Page 8 of 8 Product: TORQ ATV WINCH 4000lb Notes For further information contact T.J.M. Head Office on (07) 3865 9999. Distributors Australia wide.
