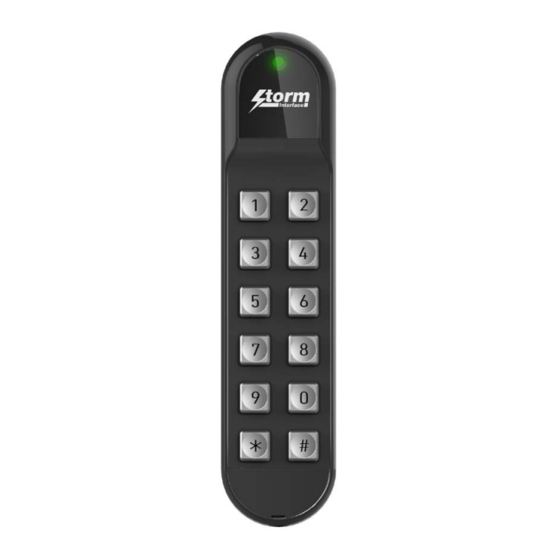

AXS SERIES S60 iCLASS SE
continuous outdoor use in exposed, unsupervised locations. Featuring genuine HID
technology, this access control keypad offers enhanced security by dual factor authentication. Authorized access
through a secured door or barrier can be gained by entry of a valid PIN and/or presentation of an authorized 13.56
MHz contactless card, token or Seos
Additionally available with HID
This manual is available from www.storm-interface.com/downloads.
Each product includes a datasheet with the essential information for installation.
Contents
Product Range / Supported Credentials 2
Exploded View...............................
Dimensional Details ........................
Installation ....................................
Removal ......................................
Typical Wiring ...............................
Wiegand Format Configuration .........
Configuration ................................
Change History .............................
Specifications ...............................
Regulatory Info / F.A.Q's.................
Whilst every effort is made to ensure details are correct at time of print, specifications are subject to change without notice.
®
®
®
HID
, Seos
and iCLASS SE
are trademarks of HID Global Corporation / ASSA ABLOY AB.
Storm, Storm Interface and Storm AXS are trademarks of Keymat Technology Ltd.
Storm Interface products include technology protected by international patent and design registration.
Storm Interface is an ISO9001 registered company. Storm is a trading name of Keymat Technology Ltd
S60 Engineering Manual
Rev 1.6 May 2016
®
PIN-Contactless Reader: This integrated keypad and contactless reader is rated for
®
device.
®
multiCLASS SE
®
for 13.56MHZ &125kHz credentials..
Page
3
4
5
6
7
8
9
10
11
12
Page 1 of 12
Engineering Manual for
AXS Series S60 Keypads
®
iCLASS SE
www.storm-interface.com
© Copyright Storm Interface. 2016. All rights reserved
®
®
, Seos
, contactless
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Storm AXS S60 Series
Summary of Contents for Storm AXS S60 Series
- Page 1 SE are trademarks of HID Global Corporation / ASSA ABLOY AB. Storm, Storm Interface and Storm AXS are trademarks of Keymat Technology Ltd. Storm Interface products include technology protected by international patent and design registration. Storm Interface is an ISO9001 registered company. Storm is a trading name of Keymat Technology Ltd...
- Page 2 Engineering Manual for AXS Series S60 Keypads Product Range Four products are included in the range. The S60, which has metal keys, and the S60i, which has illuminated white polymer keys. The multiclass versions are correspondingly S60M and S60iM Order Code Description DS601K20 AXS Series S60...
-
Page 3: Exploded View
Engineering Manual for AXS Series S60 Keypads Exploded View The product is supplied as below, note this product is designed to be installed onto a smooth surface (not a brick wall). FRONT ASSEMBLY REAR PLATE (with sticky gasket) FITTING KIT & DATASHEET 2 X POZI CSK SCREW #8 x ¾... -
Page 4: Dimensional Details
Engineering Manual for AXS Series S60 Keypads Dimensional Details For a CAD model of product / panel fix detail go to www.storm-interface.com/downloads S60 Engineering Manual Page 4 of 12 www.storm-interface.com Rev 1.6 May 2016 © Copyright Storm Interface. 2016. All rights reserved... -
Page 5: Installation
Engineering Manual for AXS Series S60 Keypads Installation Mark and drill the cable hole. Remove the release liner and stick the rear plate to the wall. Fix the rear plate to the wall with the 2 x self drill countersink 25mm screws (on 150mm centres) , and feed through the cable | |6 | Strip the cable ends... - Page 6 Engineering Manual for AXS Series S60 Keypads Removal Insert the release tool in the slot at the bottom of the product. Push to release the spring clip at the base. S60 Engineering Manual Page 6 of 12 www.storm-interface.com Rev 1.6 May 2016 ©...
-
Page 7: Typical Wiring
Engineering Manual for AXS Series S60 Keypads Typical Wiring Below is a typical wiring schedule – in this case between the S60 and a Kantech KT-300 Controller The S60 is shown connected to control Door 2. Where there is an LED connection, usually the GREEN LED connection is appropriate KT-300 +12V READER PWR +12V... - Page 8 Engineering Manual for AXS Series S60 Keypads Weigand Formats For Cards The reader’s Wiegand output easily interfaces with most existing Wiegand protocol access control panels. The reader reads standard HID format data and will output data as encoded. For MIFARE® cards the default setting is that the card data will be output as 32 bit. However, it can be configured if required by the use of a separate CONFIG card (supplied by Storm Interface on request) to output 26-bit, 34-bit,, 37- bit, 56-bit, or 64-bit Wiegand formats, based on the card serial number.
- Page 9 Engineering Manual for AXS Series S60 Keypads Configuration On power-up, you have the option to change the wiegand format, change the site code, or reset to defaults. Power up and press the ‘#’ key within 3 sec and the red led will start flashing, then enter the engineering code ‘#725’. On acceptance, the green LED will be displayed for 2 seconds and the buzzer will sound a confirmation beep.
-
Page 10: Specifications
Engineering Manual for AXS Series S60 Keypads Specifications Card Compatibility iClass ® , Mifare ® serial number ISO15693, ISO14443A&B (full list on page 2) Card Read Range 2-11 cm (depending on card) Card Security V1 Security (Elite security by special order only) Access Control Features Destructive Attack Level II... -
Page 11: Change History
Engineering Manual for AXS Series S60 Keypads Change History Engineering Manual Date Version Details 04 Jan 16 Provisional Release 01 Apr 16 First Production Release 27 May 16 Line Security amended to Level 1 Product Firmware Date Version Details 4 Bit Version 1 First Production Release at Rev 1.0 1 Apr 2016 8 Bit Version 1... -
Page 12: Regulatory Information
Engineering Manual for AXS Series S60 Keypads Regulatory Information This device complies with Part 15 of the FCC Rules and Industry Canada licence exempt RSS standard(s). Operation is subject to the following two conditions: 1. This device may not cause interference, and 2.
