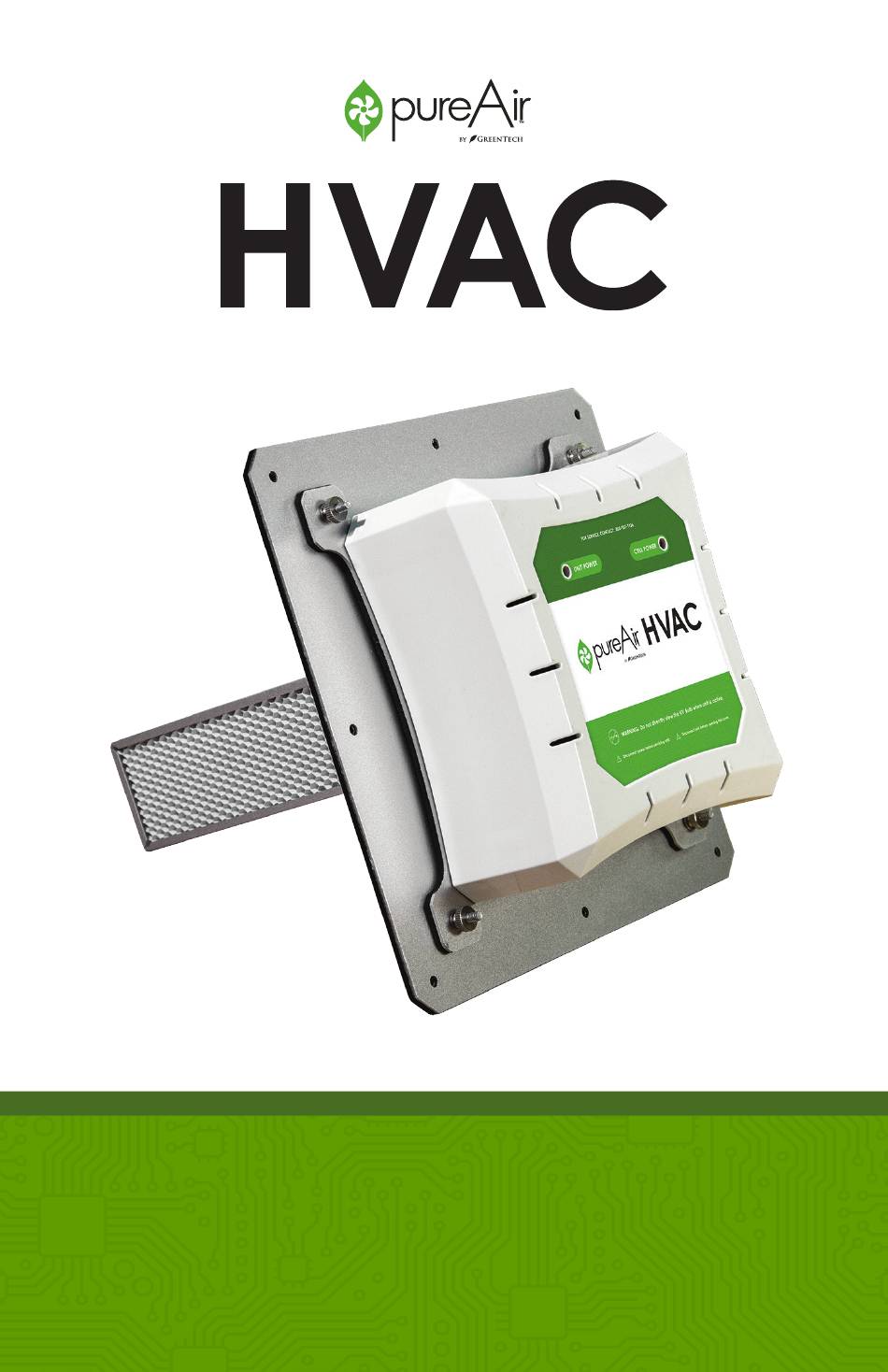

- Page 1 Owner’s Manual...
-
Page 2: Table Of Contents
Welcome Thank you for your purchase of the pureAir HVAC Air Purification Enhancement System. This unit is designed to be installed into an existing HVAC system, and used as a virtually maintenance-free enhancement to current air purification technology. Please read and follow all service procedures outlined in this manual. -
Page 3: About
Designed to work with existing purification technology to reduce odors, smoke, and a broad spectrum of indoor air contaminants. pureAir HVAC is easily mounted into air conditioning and/or heating systems where contaminants can grow. When the HVAC system is in operation,... -
Page 4: Product Contents
Product Contents Ballast Housing & Replaceable ARC Cell Power Supply ® Mounting Plate (Includes UV Lamp) (120 VAC to 24 VAC/VDC) Installation Hardware (8) #8 3/4” Hex Head Self-Tapping Screw (4) #8 - 32 Knurled Thumb Nuts (2) #8 - 32, 3/8” Screw (4) #6 - 32, 3”... -
Page 5: Installation Tools
The unit should be installed after the air handler in the pureAir HVAC Supply Plenum HVAC system in the supply plenum.* *Additional pureAir HVAC units are recommended in the Return Plenum for added protection and to keep the internal parts clean. -
Page 6: Installation
Installation Locate a suitable area of duct for Cut away any insulation to expose the installation. the duct. Use the Mounting Plate to trace Use a 1/8” Drill Bit to drill the 8 screw the main hole and the eight (8) hole locations just marked. - Page 7 Installation (Continued) Orient the Ballast to allow the Power Align the ARC Cell’s screw holes with Outlet to face the the ideal direction. the holes on the Ballast in a way which will allows air to pass through the Cell once mounted into the duct.
-
Page 8: Maintenance
Maintenance/UV Lamp Indicator Your pureAir HVAC unit requires no periodic maintenance beyond the normal replacement of the ARC Cell every year. It is recommended, for optimum performance, that the ARC Cell be replaced annually. The UV Lamp Operation Indicator on the face of the unit will glow when the unit is in use. -
Page 9: Changing The Cell
Changing the Cell Unplug the unit’s power cord from Remove the Thumb Nuts and unit the outlet. from the duct. Remove the two (2) screws holding Replace the Cell and UV Lamp and the cell on the rear of the Ballast fasten the new parts with the two Housing. -
Page 10: Warranty
Cell which extends into the ductwork. ® Your pureAir HVAC (Product) is warranted to be free from all defects in material and workmanship in normal household use for a period of two (2) years from date of purchase.* Your ARC Cell, including the bulb, is warranted to be free from all defects in material and workmanship in ®... - Page 12 OM REVISION: GTE-pureAir_HVAC-OwnersManual-200609...
