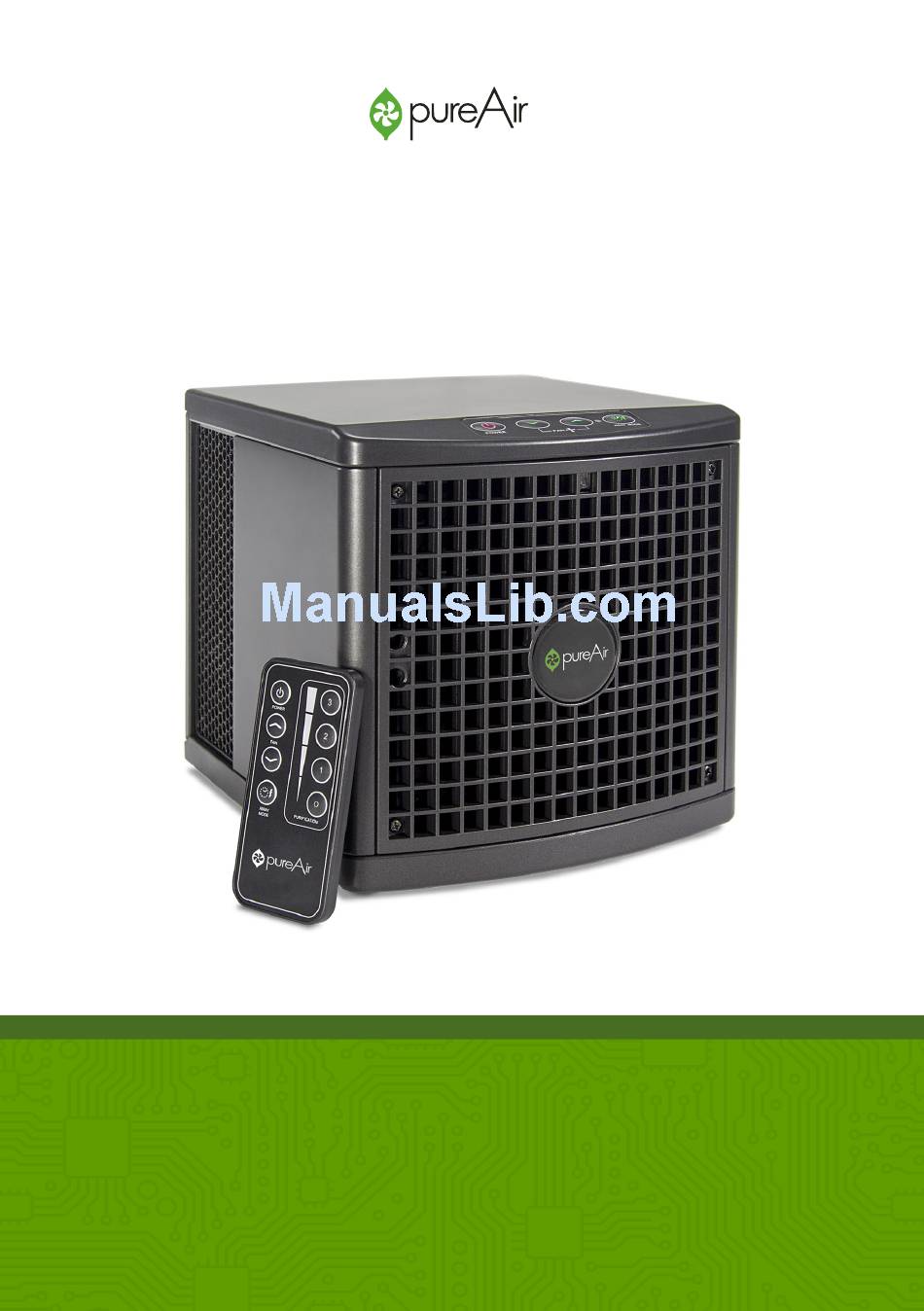

- Page 1 1500 Owner’s Manual...
-
Page 2: Table Of Contents

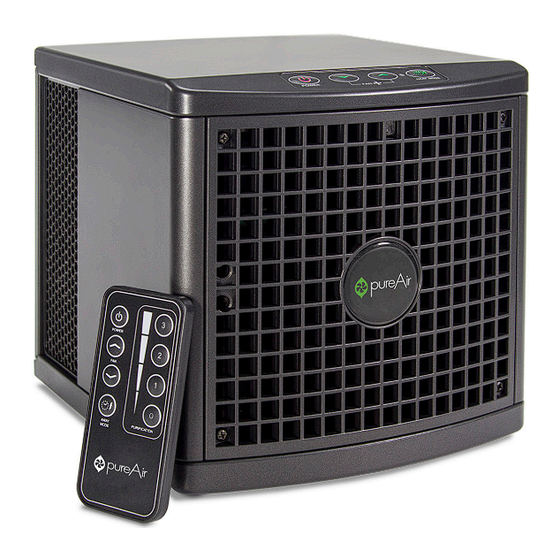

Welcome Thank you for your purchase of the pureAir 1500. This air purifier has been designed to provide you a cleaner living space with years of low maintenance operation. Please read through the usage and service instructions outlined in this owner’s manual before operating the unit. -
Page 3: Warnings
Warnings Do not operate this unit unless it is completely assembled. Eye damage may result from directly viewing the light produced by the lamp inside this unit for a continuous and extended period of time. Do not block the ventilation or filters. Do not use Away Mode in an occupied space. -
Page 4: Diagrams
Diagrams Control Panel Unit Front Front Grille Ionization Brushes Unit Rear Rear Panel (Closed) Release Tab Power Adapter Power Plug... -
Page 5: Diagrams
Diagrams Unit Rear (Open) PCO Cell Purification Plate PCO Cell Power Connector Power Plug Purification Plate Power Connector Control Panel Remote Purification Level LED Indicator Power POWER Purification Fan Speed Level POWER AWAY MODE Away Mode AWAY PURIFICATION MODE Fan Speed Power Away Mode... -
Page 6: Getting Started
Getting Started Remove the UNIT and POWER ADAPTER from the packaging. Find a suitable location to place your unit. (Ideal location is an area of the room with good circulation, or near the source of pollution.) Plug the POWER ADAPTER into a wall outlet and then plug the other end into the POWER PORT of your unit. -
Page 7: Settings
Settings There are multiple ways to change the output of your unit. If you need the unit to be quieter, change the Fan Speed, if you need a larger or smaller area covered, change the Purification Level, and if you need a tough odor removed, use Away Mode. -
Page 8: Disassembly/Assembly
Disassembly Turn the unit OFF and remove the POWER CORD before performing any cleaning or maintenance to prevent injury. Refer to the Diagram Section (Pg. 4-5) for further illustrations of part names and locations. Rear Cover After unplugging and removing the POWER CORD and POWER ADAPTER, press down on the tab above the POWER ADAPTER space and then pull back on the REAR COVER. - Page 9 Assembly All parts must be properly installed before operating the unit. Failure to do so may damage the unit. Front Grille Replace the FRONT GRILLE and the four FRONT GRILLE SCREWS using a Phillips Head Screwdriver. Be careful to not over-tighten the screws or damage the IONIZATION BRUSH.
-
Page 10: Cleaning
Cleaning For proper operation, the unit should be cleaned at least once per month. Turn the unit OFF and remove the POWER CORD before performing any cleaning or maintenance to prevent injury. Review the Disassembly and Assembly Section (Pg. 8-9) before performing and cleaning and maintenance to prevent damage to the unit. - Page 11 Cleaning Unit Interior Using a damp cloth, a clear alcohol based cleaner, or compressed air/ vacuum cleaner carefully clean the walls and components inside of the unit, after completing the DISASSEMBLY procedures. PCO Cell Using compressed air or a vacuum blow/suck the dust out of the PCO Cell. Do not use any liquid to clean the PCO Cell.
-
Page 12: Maintenance
Maintenance Turn the unit OFF and remove the POWER CORD before performing any cleaning or maintenance to prevent injury. Review the Disassembly and Assembly Section (Pg. 8-9) before performing and cleaning and maintenance to prevent damage to the unit. General Maintenance Your unit should need little to no maintenance, besides an occasional PCO Cell or Purification Plate Replacement, but sometimes problems arise. -
Page 13: Troubleshooting
Troubleshooting Unit Fails to Turn On 1. Check to make sure that the POWER PLUG, POWER CORD, and POWER ADAPTER are all properly connected. 2. Verify that the POWER BUTTON has been activated on the CONTROL PANEL If further problems persist, contact GreenTech Environmental (www.GreenTechEnv.com) for further instructions or replacement. -
Page 14: Specifications
Effective Area ........Up to 1500 ft... -
Page 15: Warranty Information
Warranty Information Your pureAir 1500 Air Purifier is warranted to be free from all defects in material and workmanship in normal household use for a period of 1 Year from date of purchase. The warranty is granted only to the original purchaser and members of his or her immediate household. - Page 16 www.GreenTechEnv.com...
